Dark II

Dark II
Recessed Downlight

Dark II is a recessed downlight family with 9W and 12W single-head models plus twin-head configurations. Black is the default product image and White is shown as the secondary finish. Review the model range below by size, cut-out, system power and luminous flux.

CONTACT US
Technical Date Application

Dark II model selection

Start with the series

Only six models are shown at a time. Black is the default image; switch to White inside each card without duplicating the entire product visual.

9–24WFamily system power range
CRI 90Declared colour rendering index
UGR <10Declared glare rating
IP20Declared ingress protection
Filter the active series

DX055 Series

Four models at 9W / 630 lm and two verified twin-head models at 2×9W / 1260 lm.

Showing 6 models

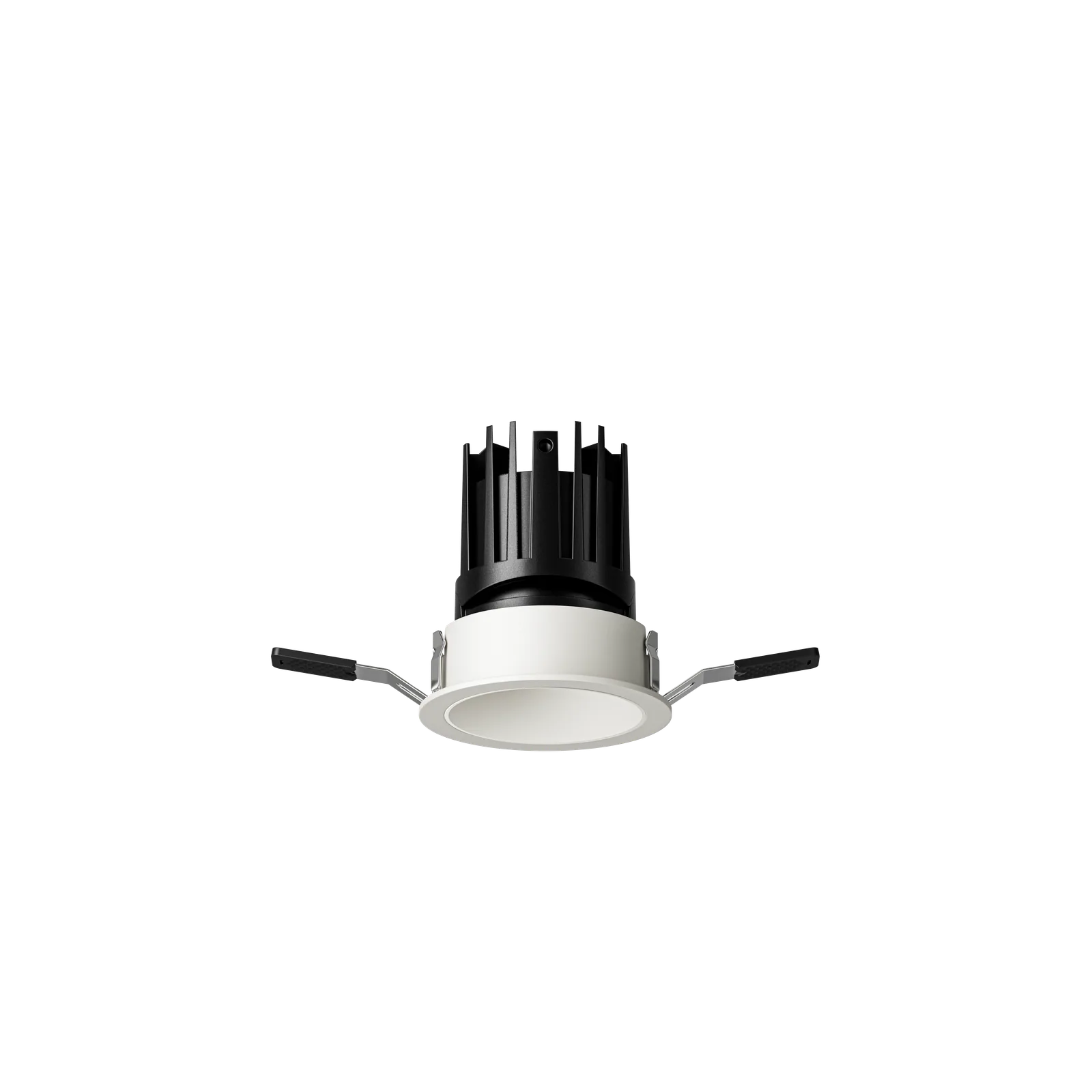

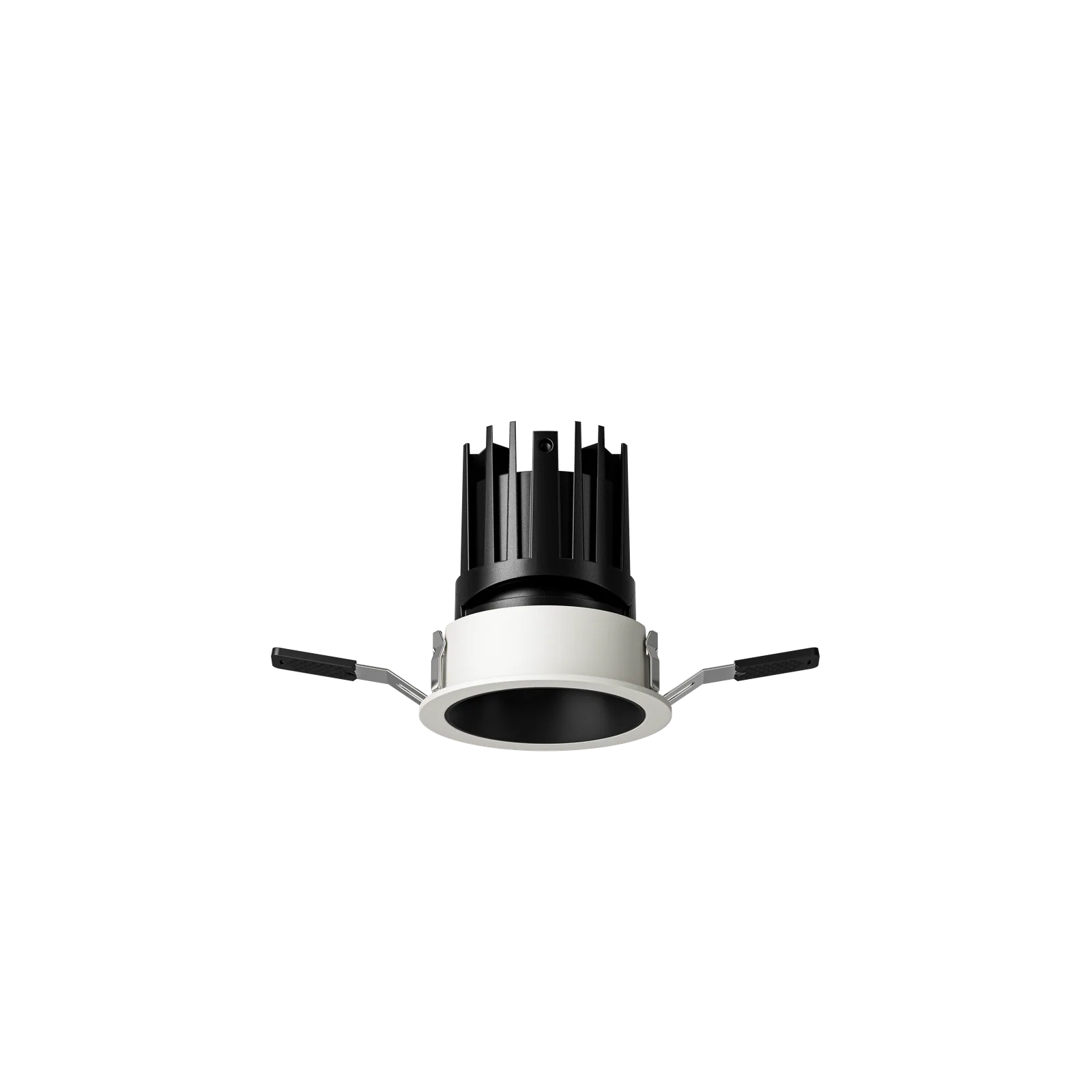

Round · Narrow Ring DX055A recessed downlight, Black configuration

DX055A

9W
Flux630 lm
Cut-outØ55
Finish
View specifications
Power
9W
Luminous flux
630 lm
Size
D62×H80
Cut-out
Ø55

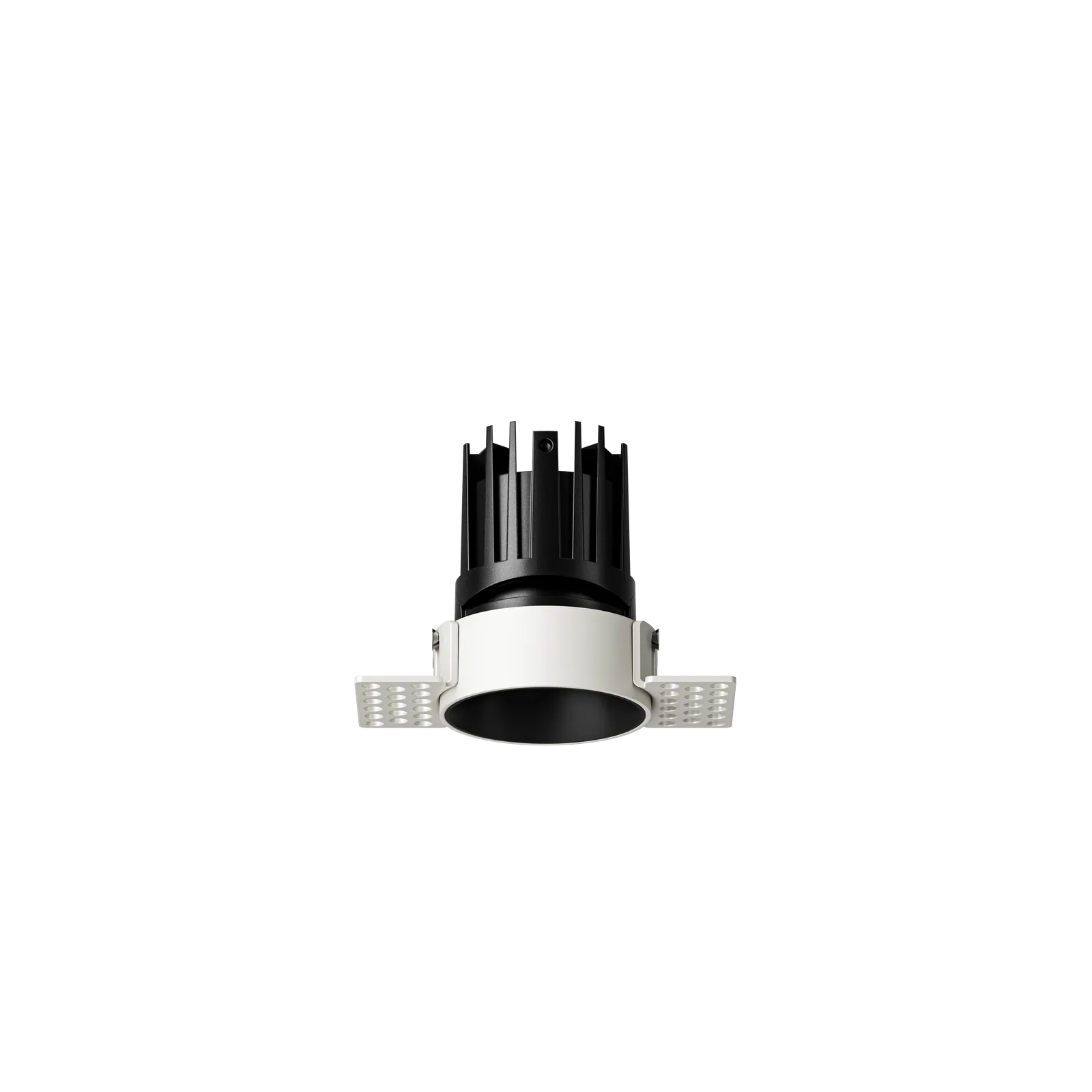

Round · Trimless DX055B recessed downlight, Black configuration

DX055B

9W
Flux630 lm
Cut-outØ55
Finish
View specifications
Power
9W
Luminous flux
630 lm
Size
L96×W60×H80
Cut-out
Ø55

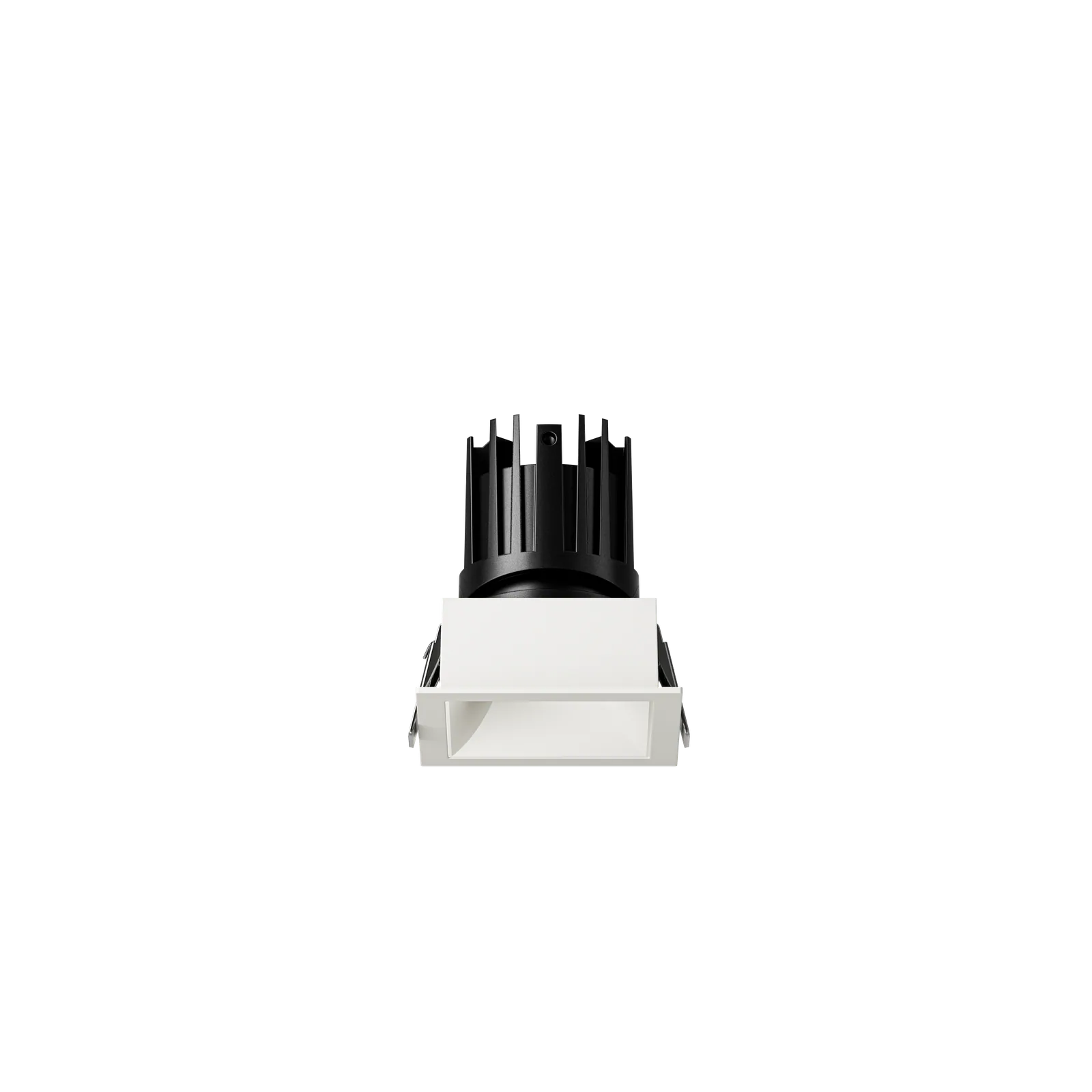

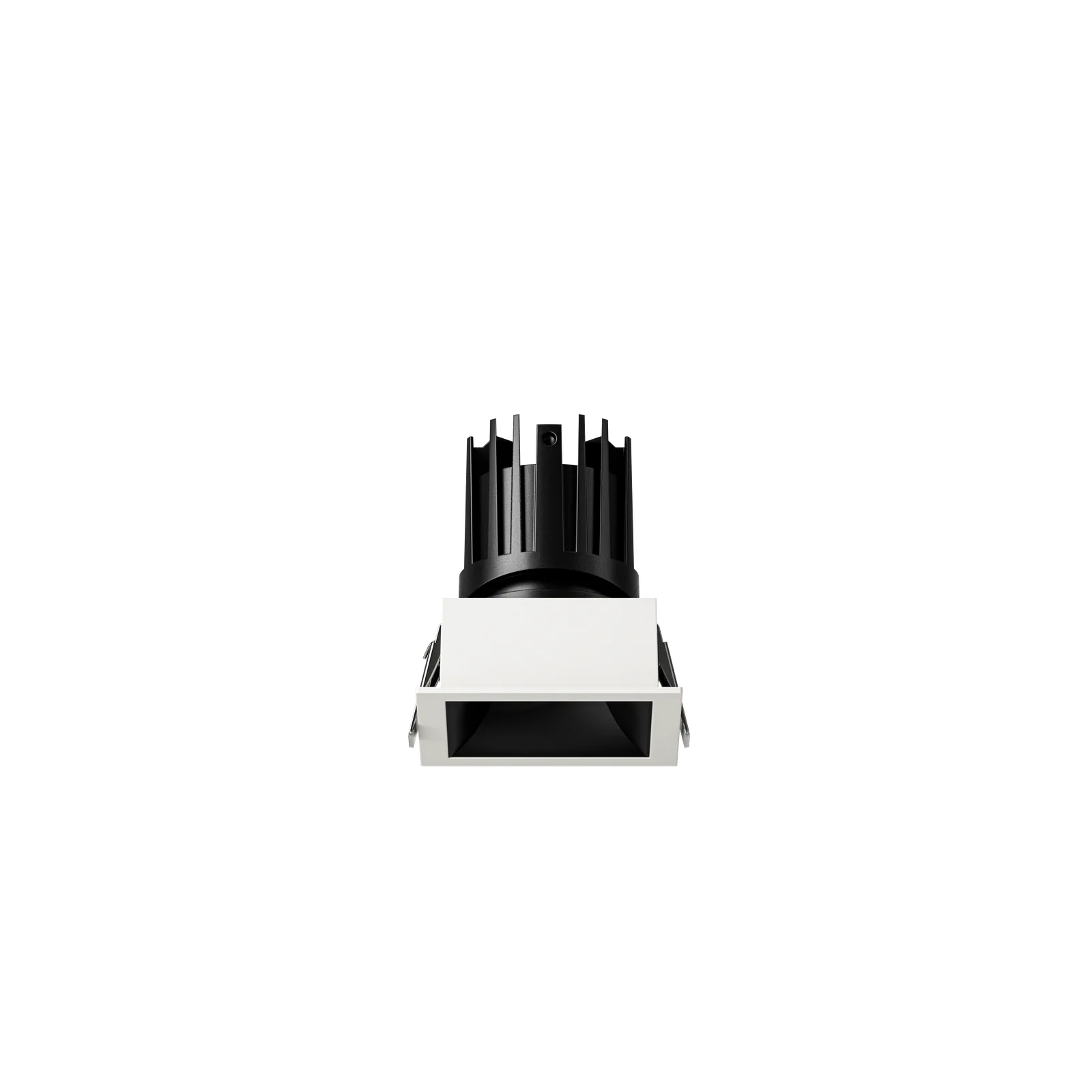

Square · Narrow Ring DX055C recessed downlight, Black configuration

DX055C

9W
Flux630 lm
Cut-outL55×W55
Finish
View specifications
Power
9W
Luminous flux
630 lm
Size
L64×W64×H86
Cut-out
L55×W55

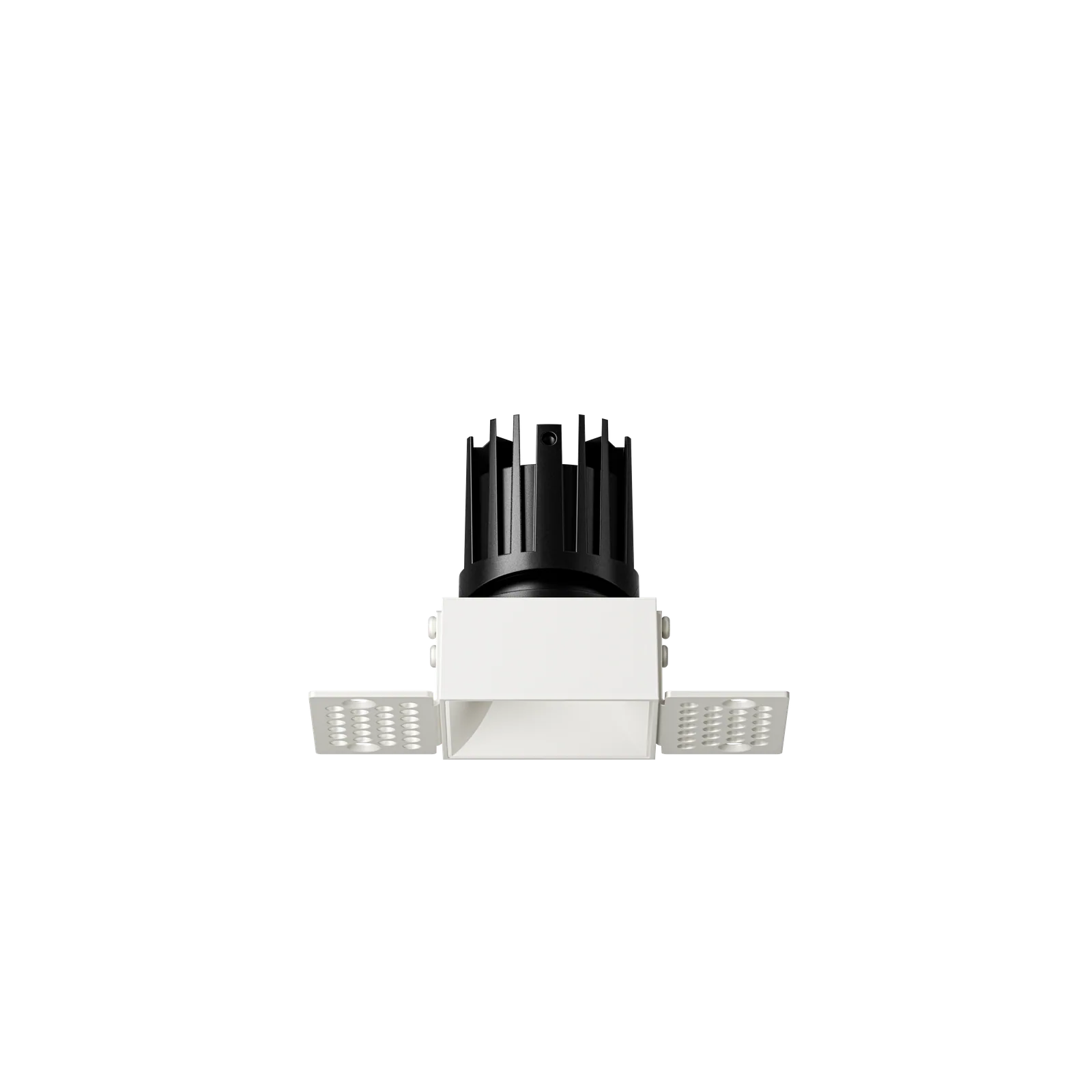

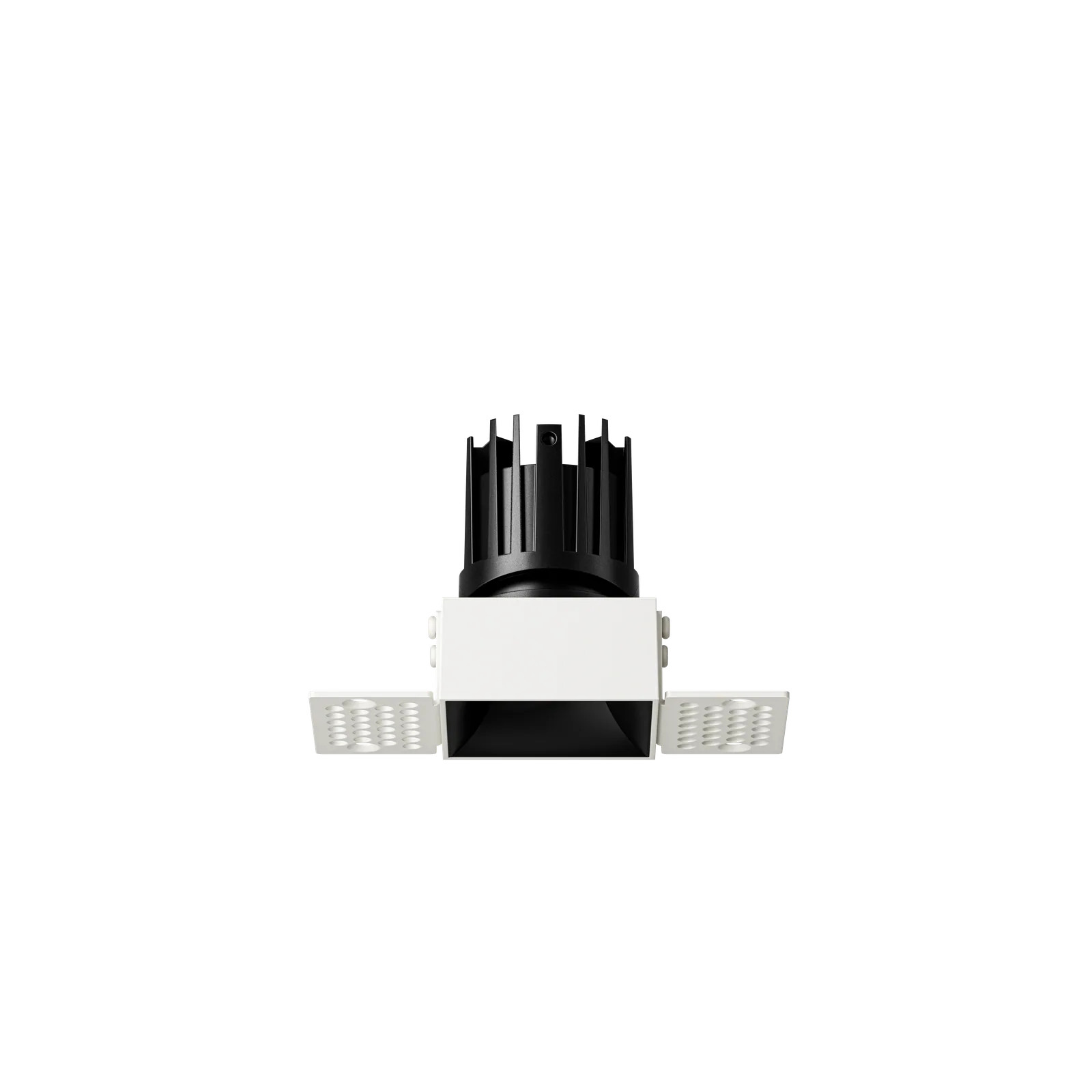

Square · Trimless DX055D recessed downlight, Black configuration

DX055D

9W
Flux630 lm
Cut-outL56×W55
Finish
View specifications
Power
9W
Luminous flux
630 lm
Size
L116×W53×H86
Cut-out
L56×W55

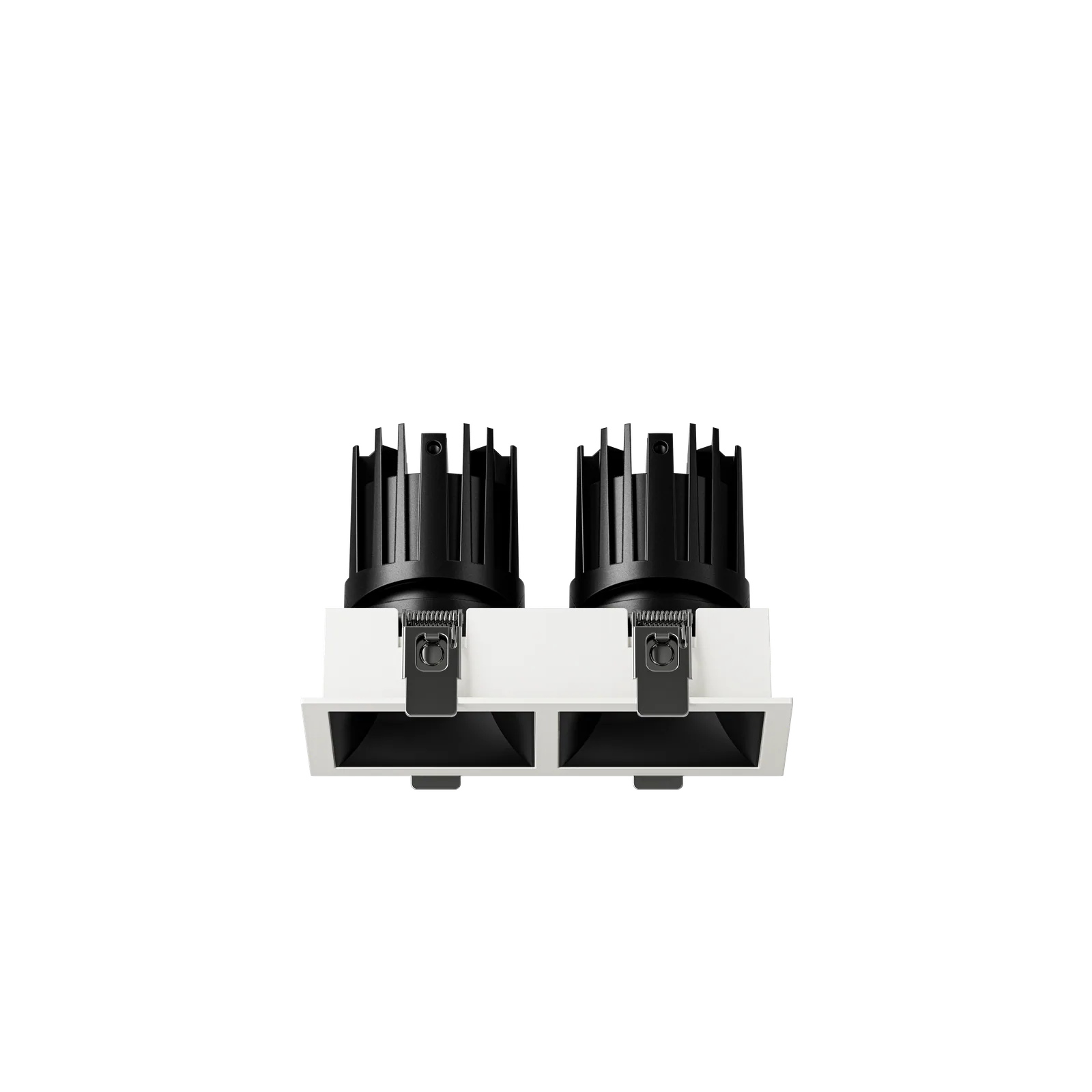

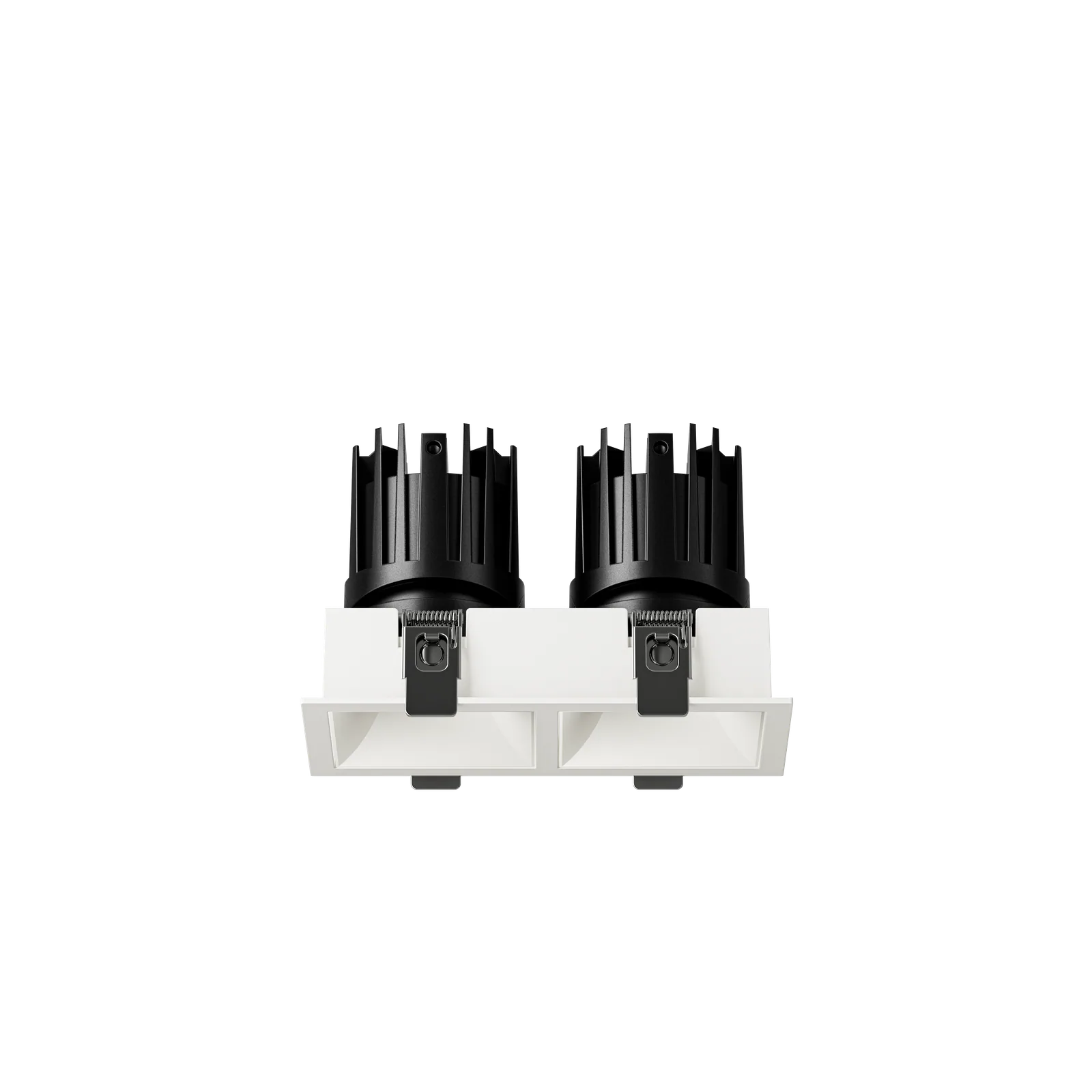

Twin-head Square · Narrow Ring DX055C2 recessed downlight, Black configuration

DX055C2

2×9W
Flux1260 lm
Cut-outL110×W55
Finish
View specifications
Power
2×9W
Luminous flux
1260 lm
Size
L118×W64×H86
Cut-out
L110×W55

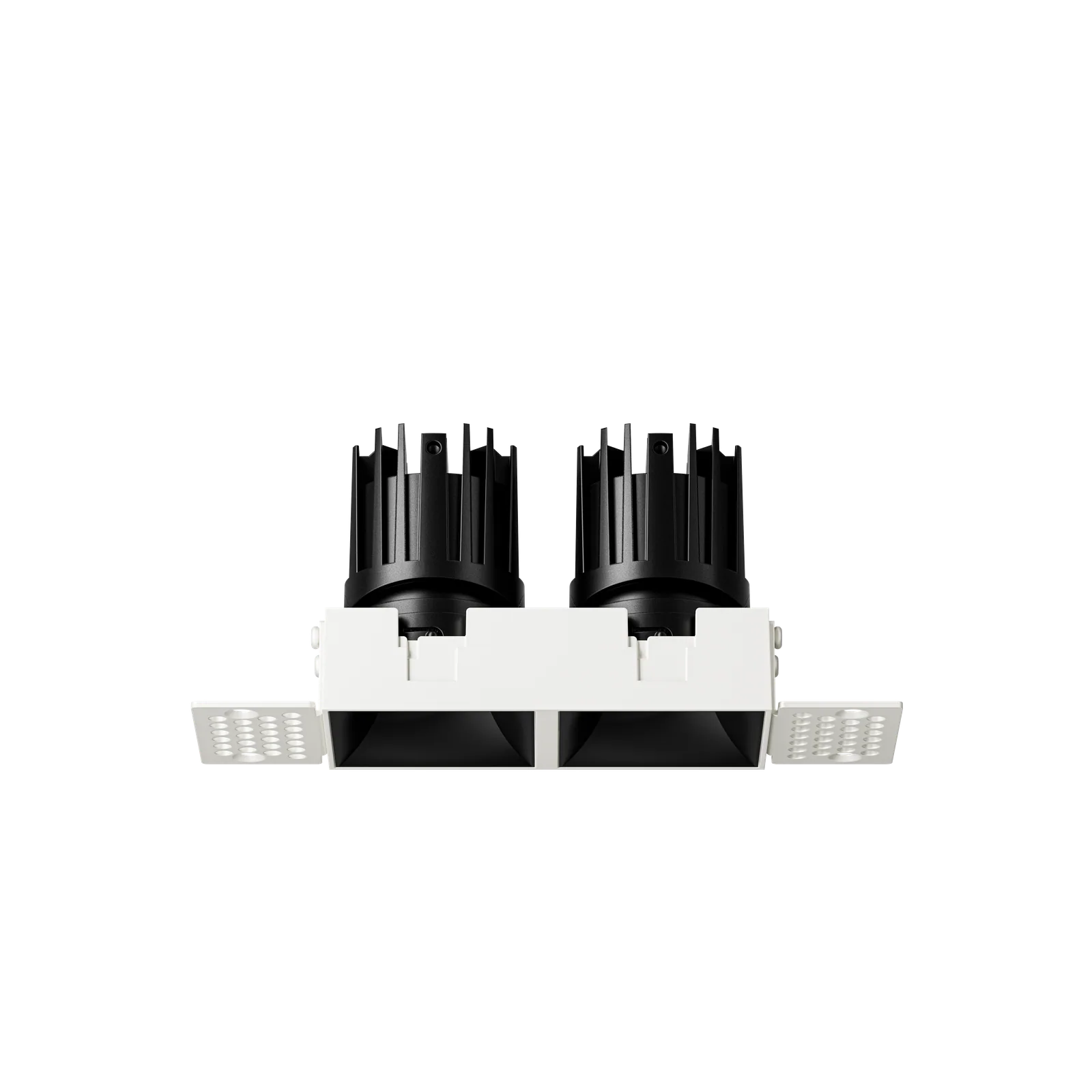

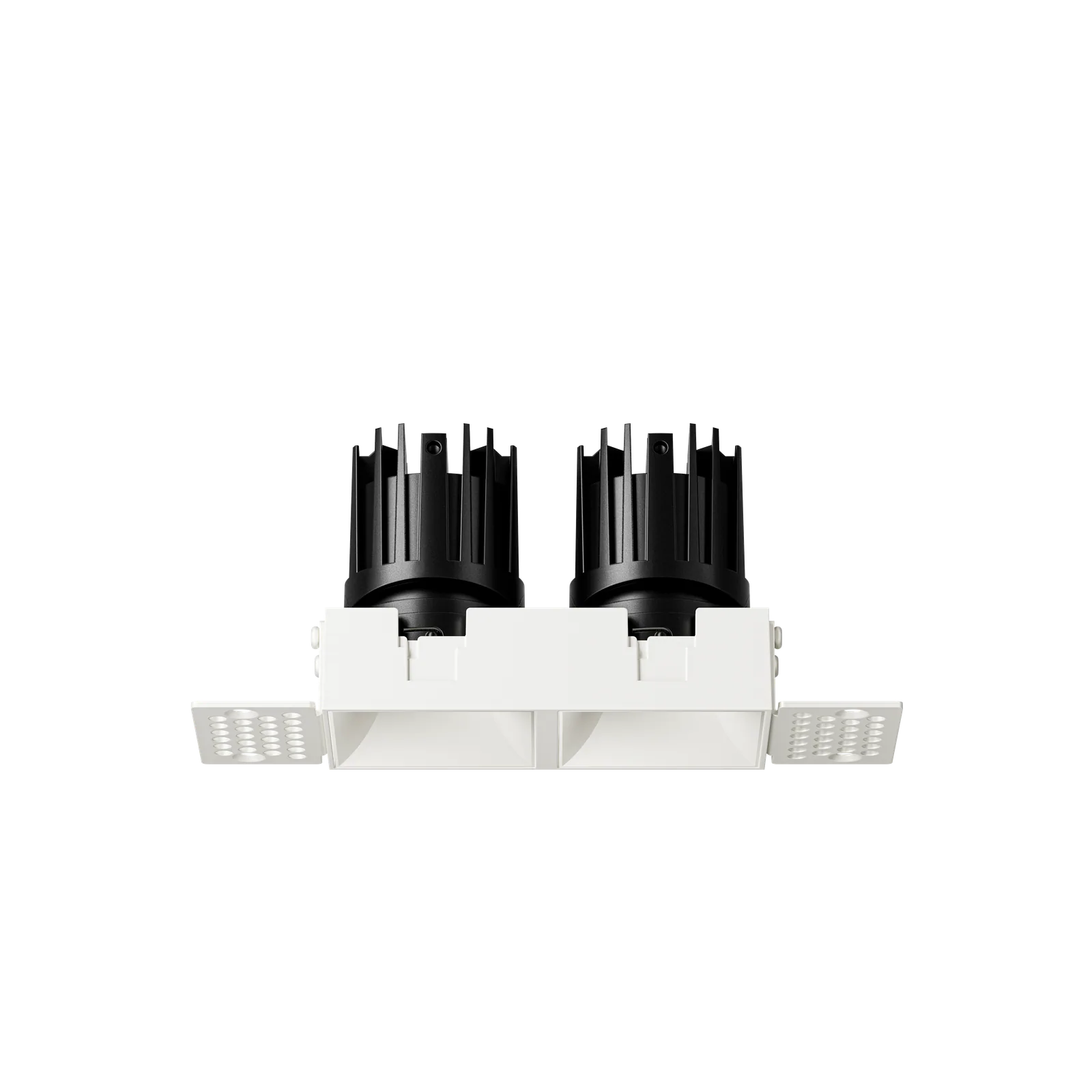

Twin-head Square · Trimless DX055D2 recessed downlight, Black configuration

DX055D2

2×9W
Flux1260 lm
Cut-outL111×W53
Finish
View specifications
Power
2×9W
Luminous flux
1260 lm
Size
L172×W53×H86
Cut-out
L111×W53
Compare all 12 modelsOpen the complete model, power, lumen, size and cut-out table.
SeriesModelFormTrim stylePowerLuminous fluxSizeCut-out
DX55DX055ARoundNarrow Ring9W630 lmD62×H80Ø55
DX55DX055BRoundTrimless9W630 lmL96×W60×H80Ø55
DX55DX055CSquareNarrow Ring9W630 lmL64×W64×H86L55×W55
DX55DX055DSquareTrimless9W630 lmL116×W53×H86L56×W55
DX55DX055C2Twin-head SquareNarrow Ring2×9W1260 lmL118×W64×H86L110×W55
DX55DX055D2Twin-head SquareTrimless2×9W1260 lmL172×W53×H86L111×W53

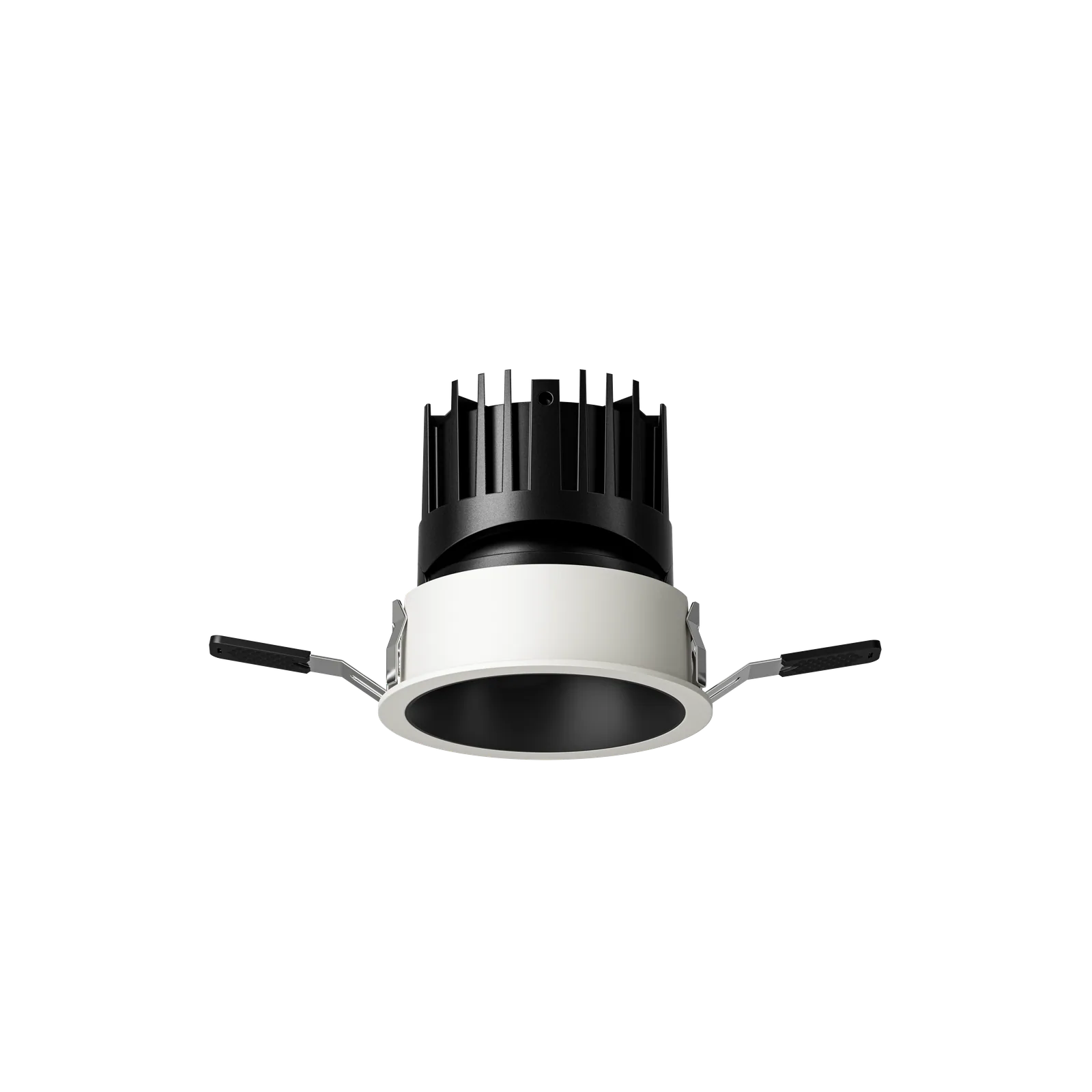

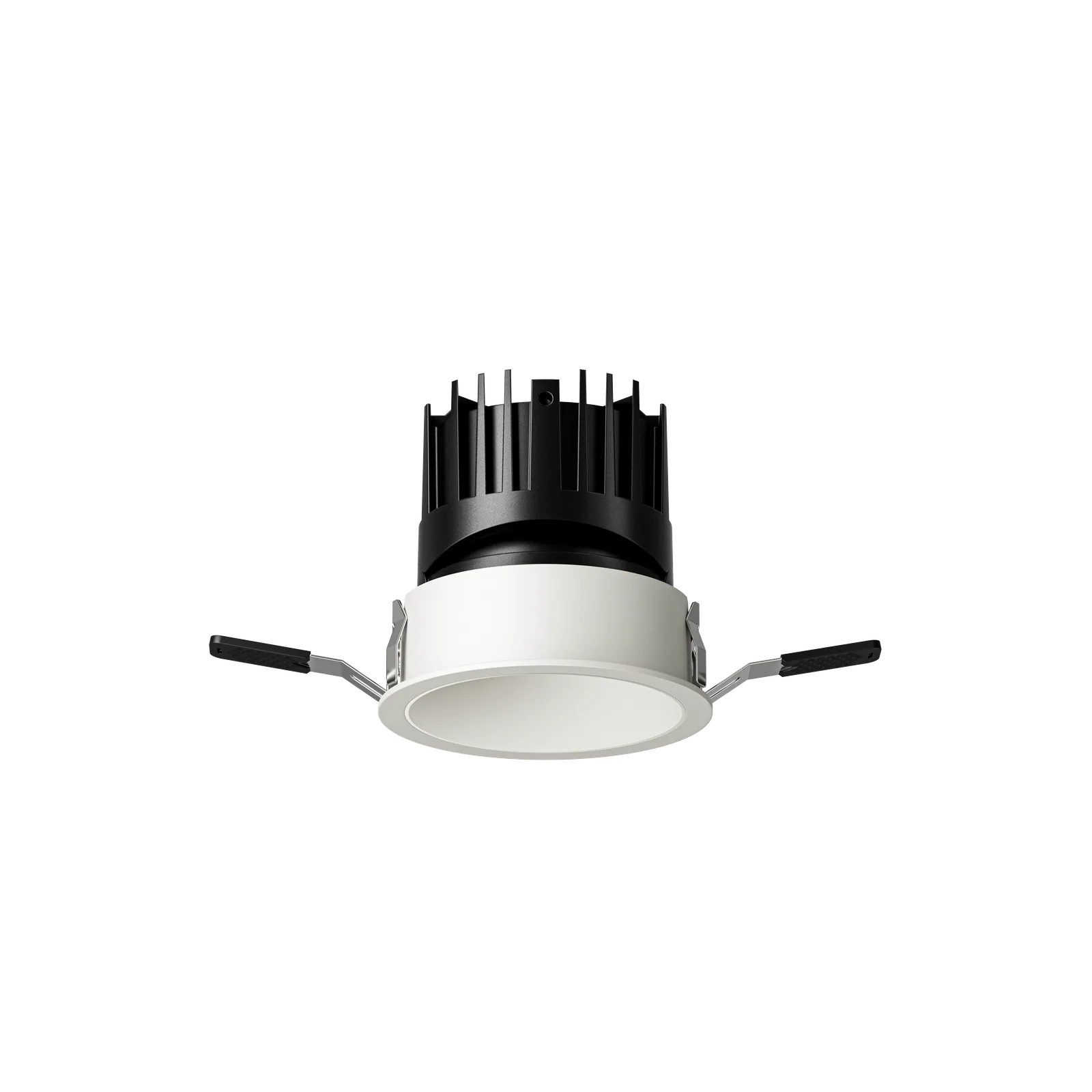

DX75DX075ARoundNarrow Ring12W960 lmD82×H80Ø75

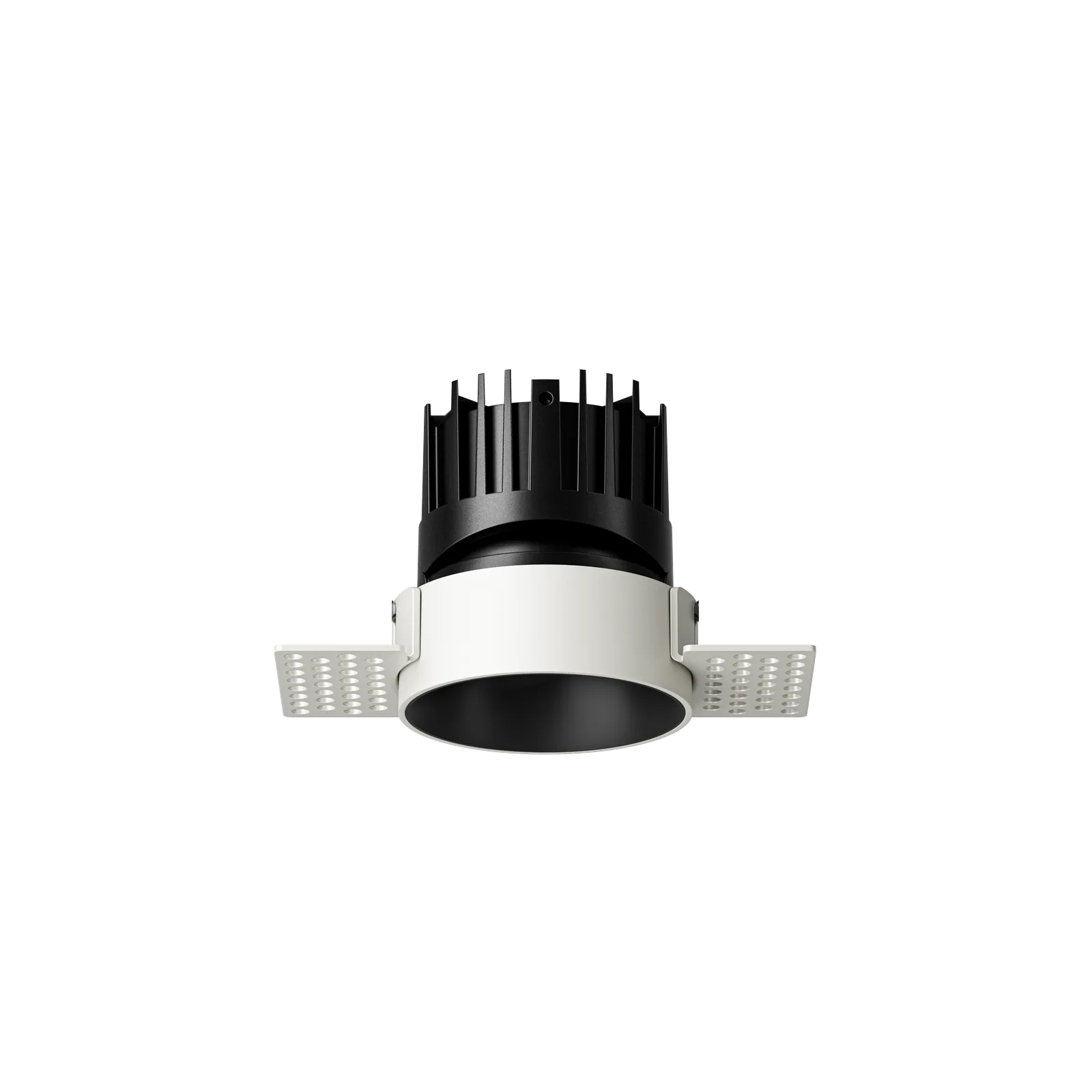

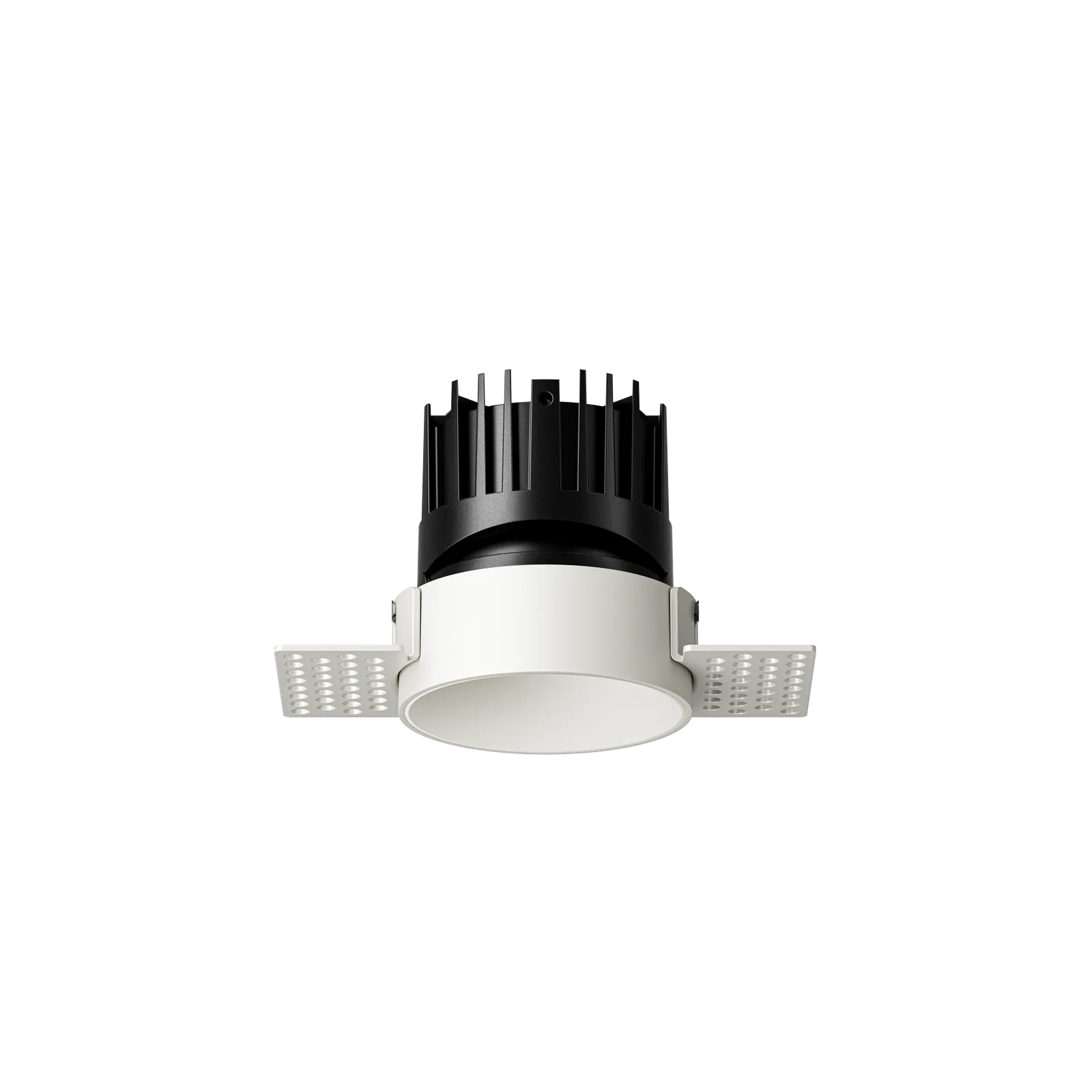

DX75DX075BRoundTrimless12W960 lmL135×W80×H80Ø75

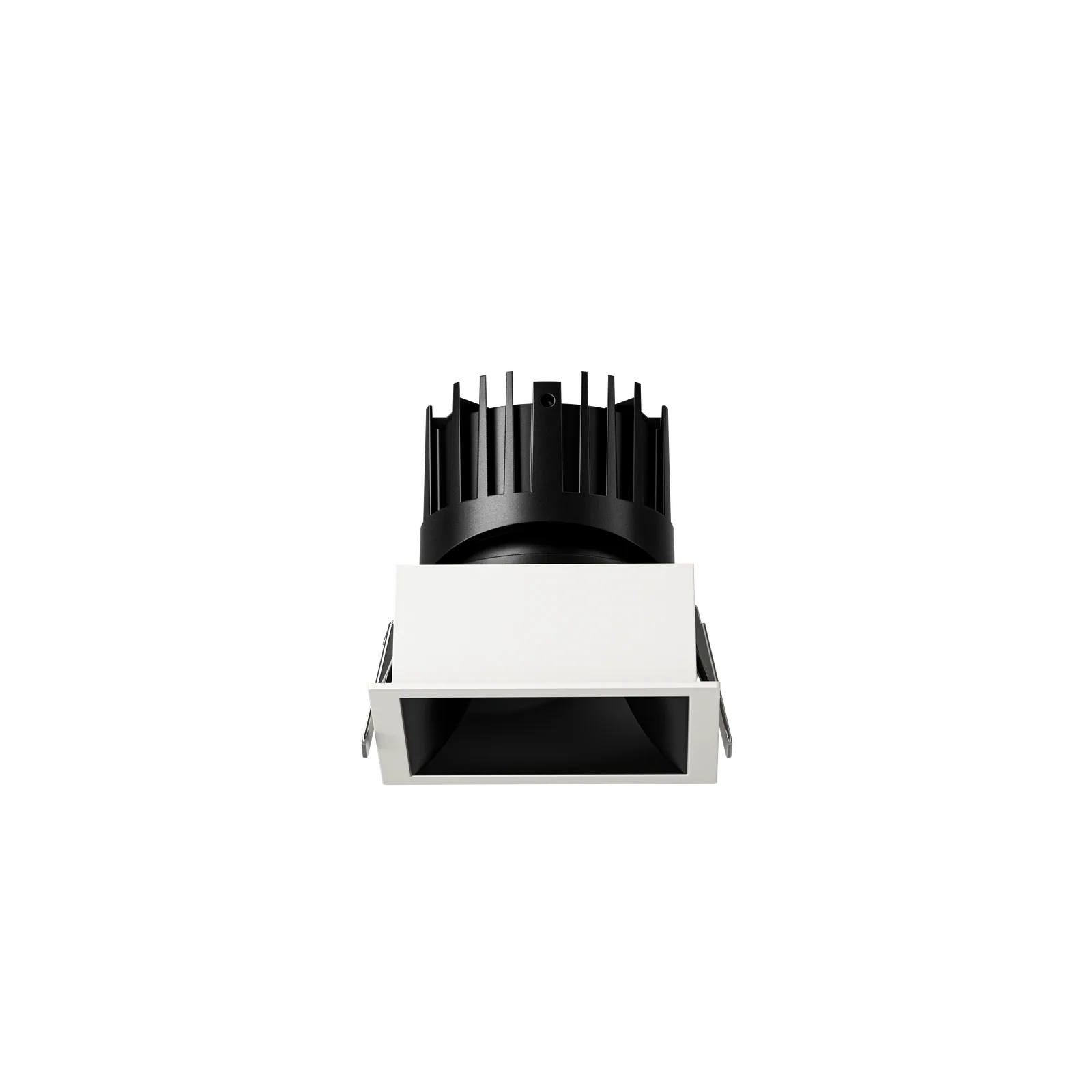

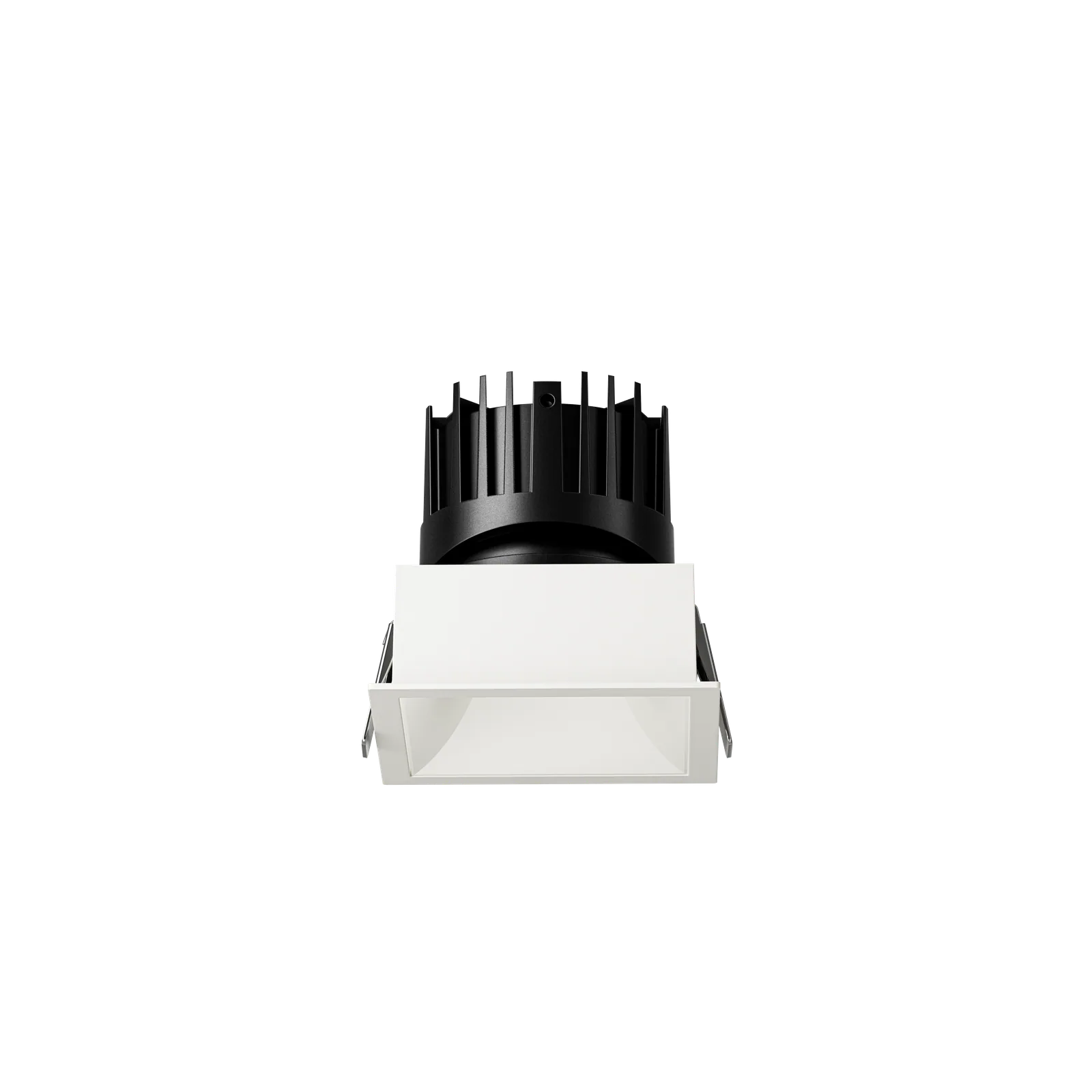

DX75DX075CSquareNarrow Ring12W960 lmL84×W84×H86L75×W75

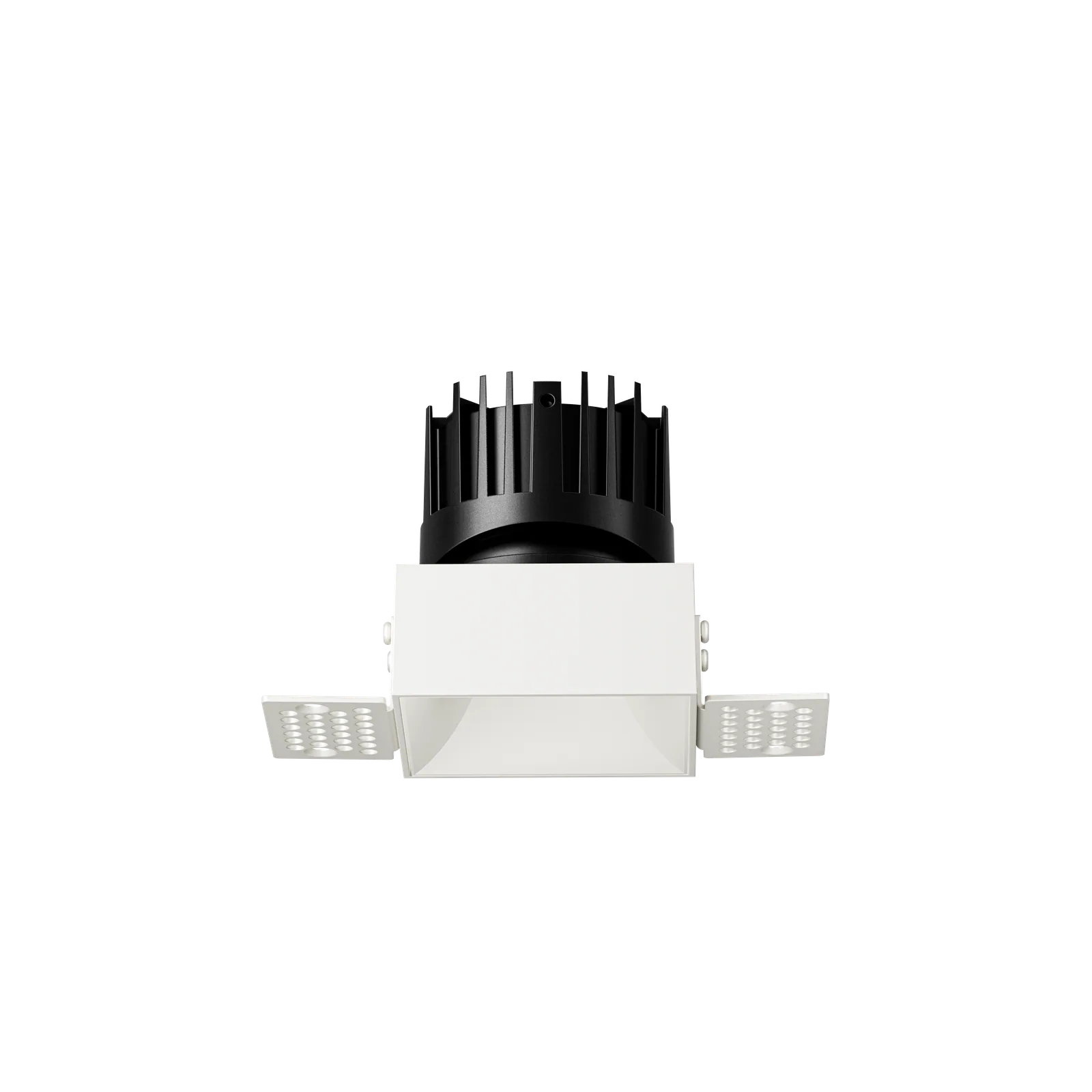

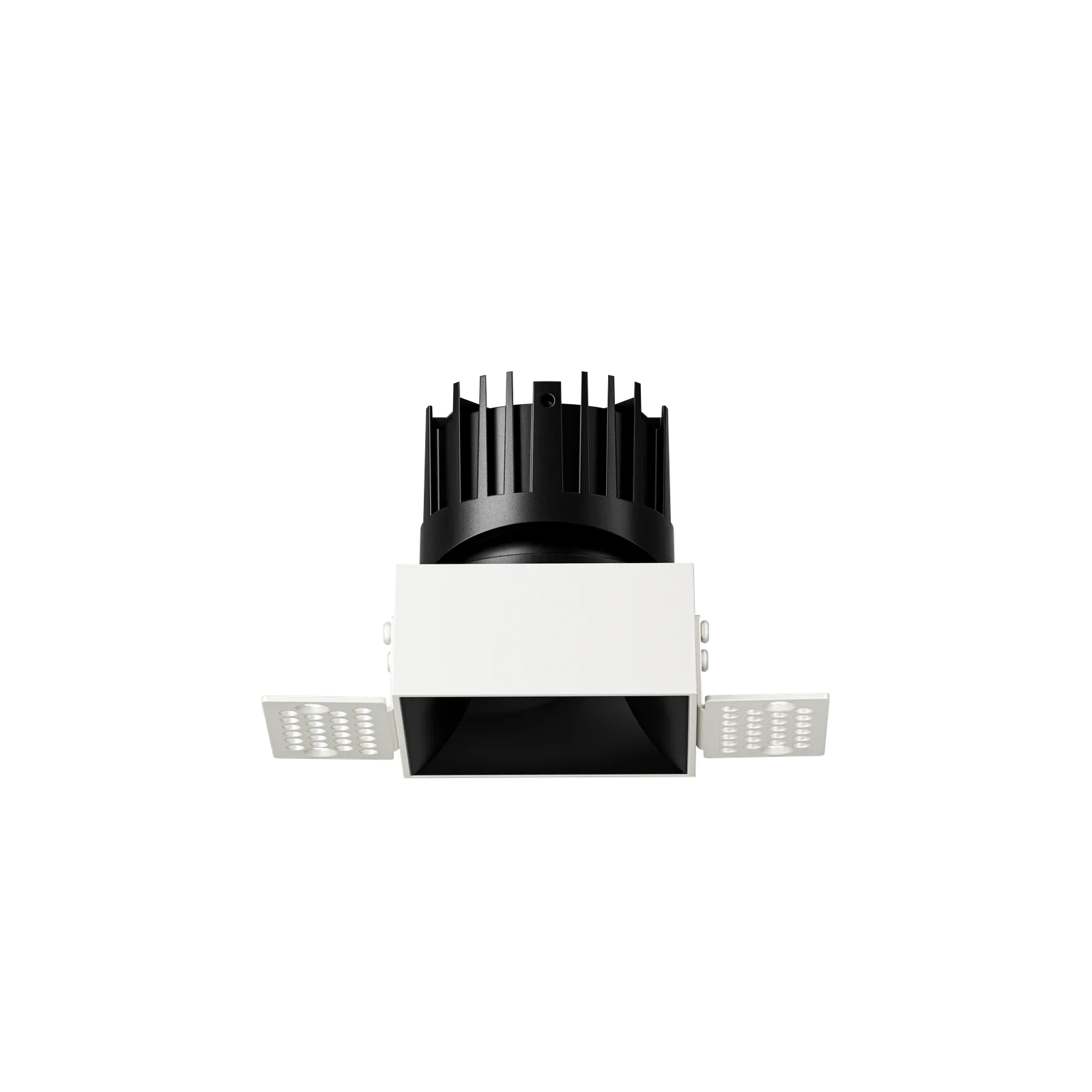

DX75DX075DSquareTrimless12W960 lmL137×W73×H86L76×W75

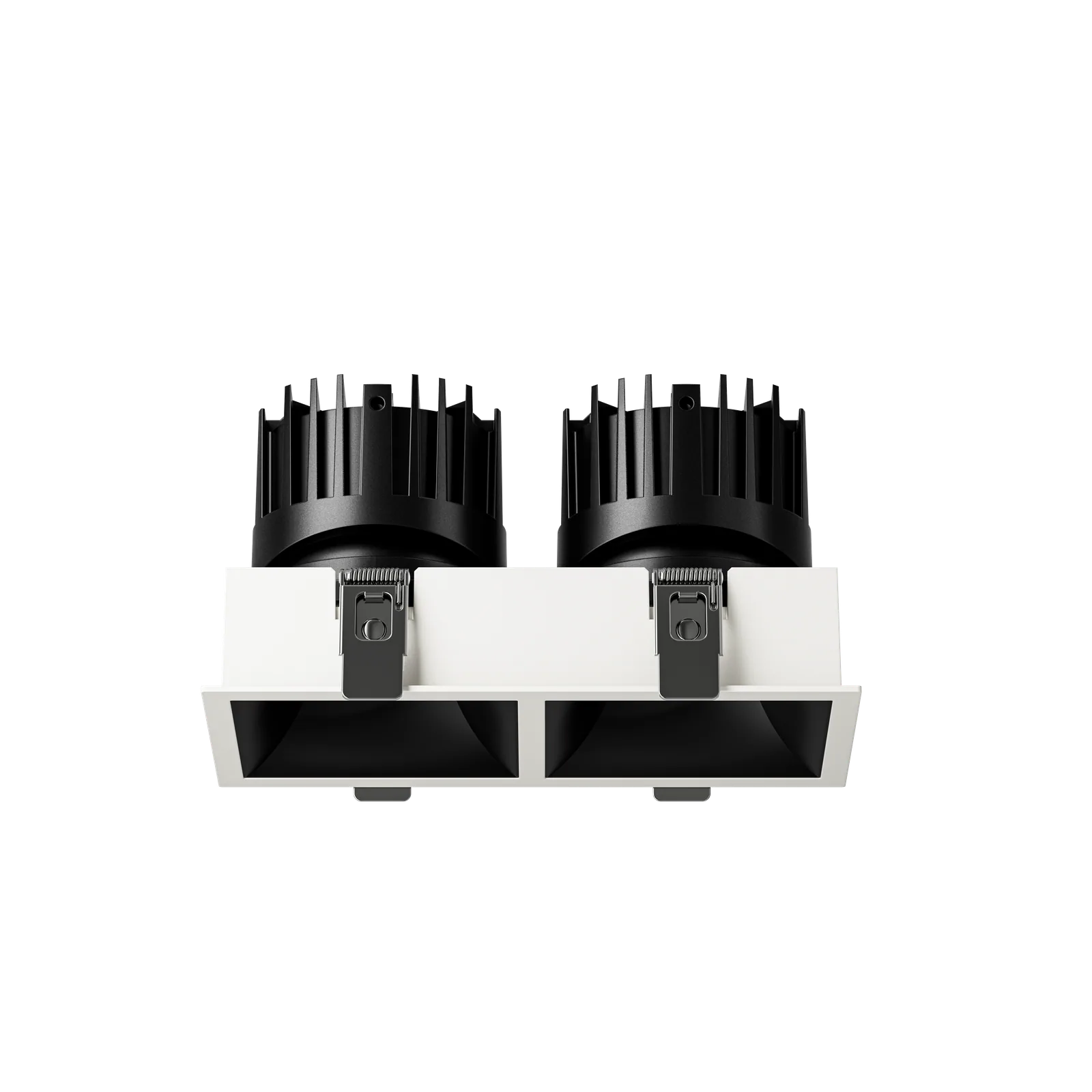

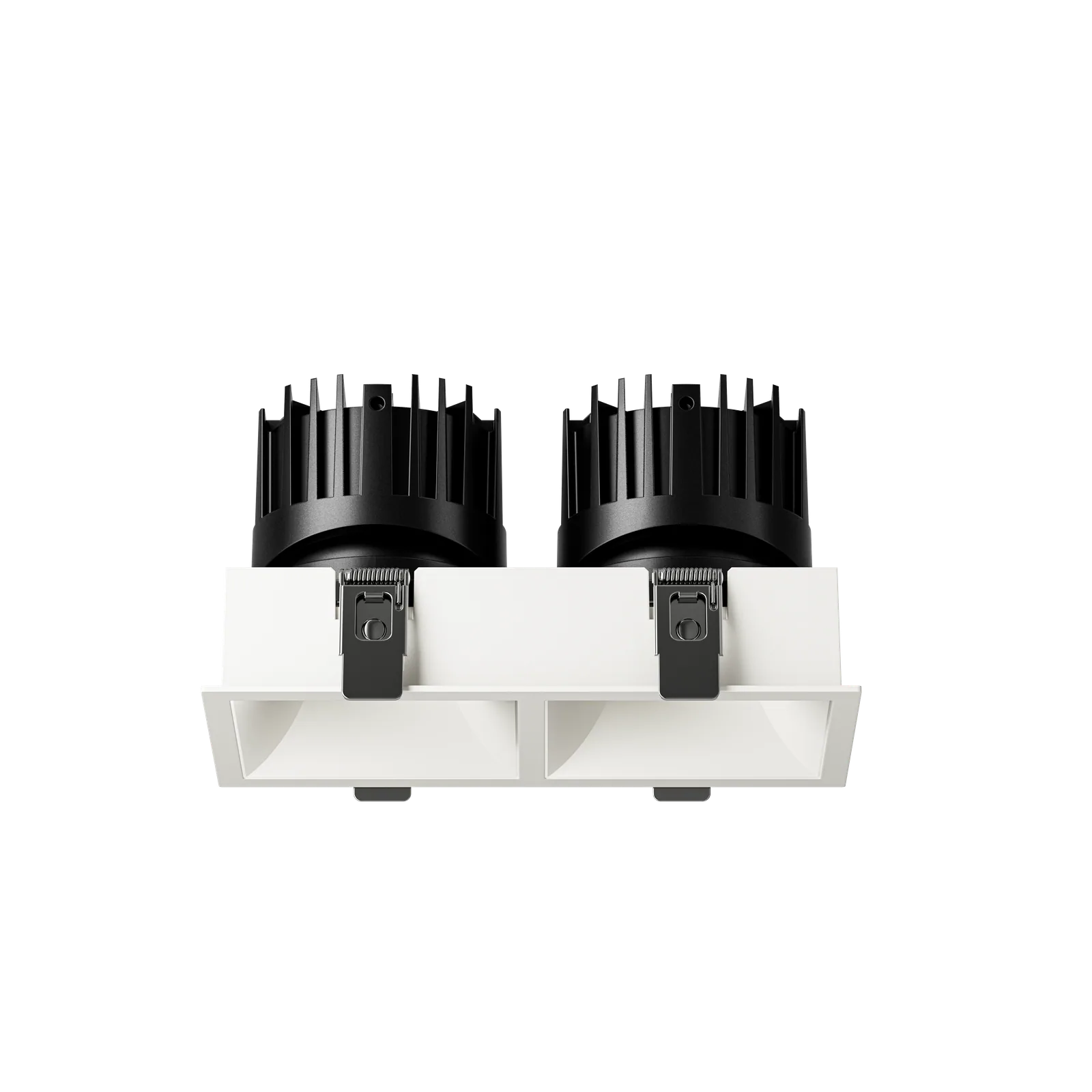

DX75DX075C2Twin-head SquareNarrow Ring2×12W1920 lmL157×W84×H86L150×W75

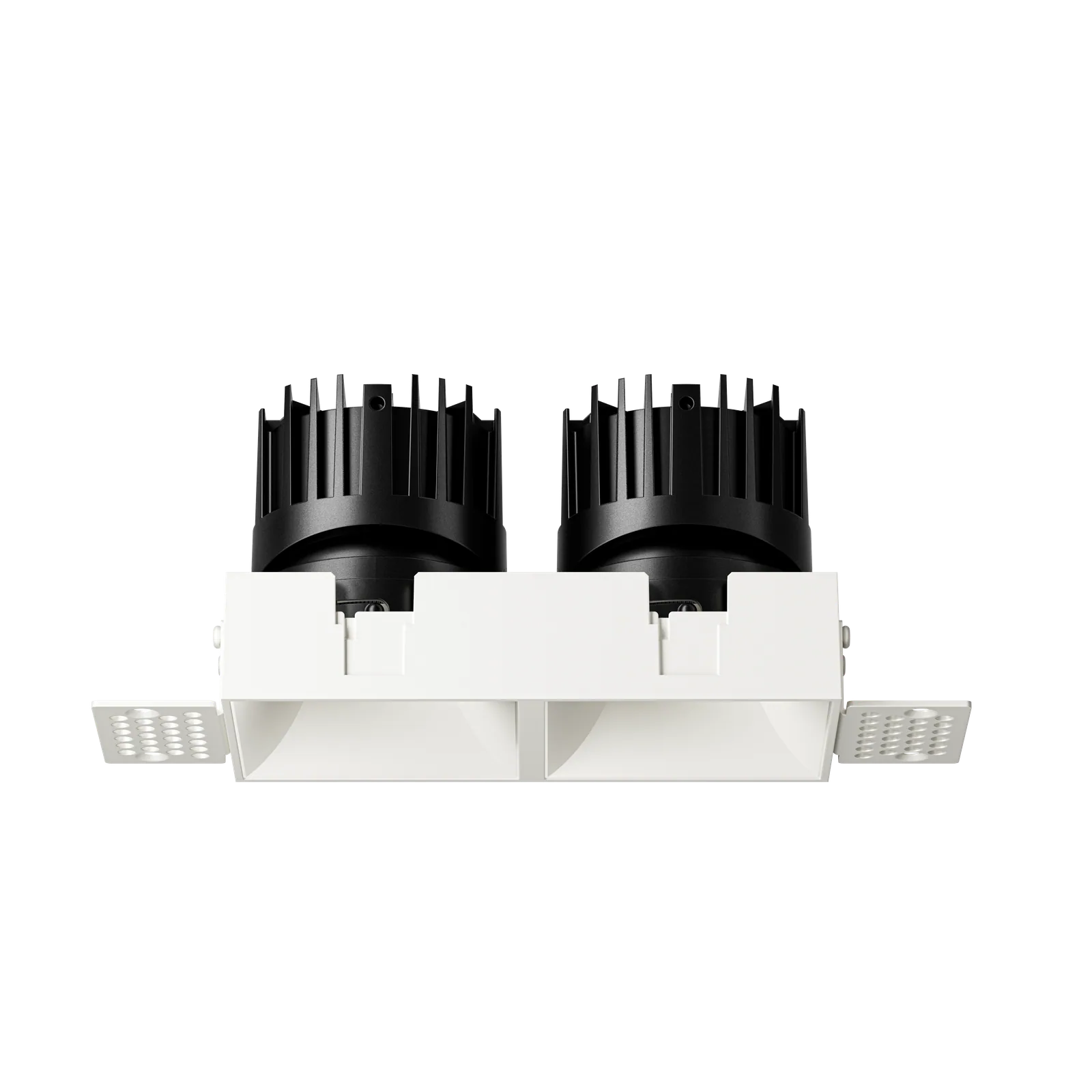

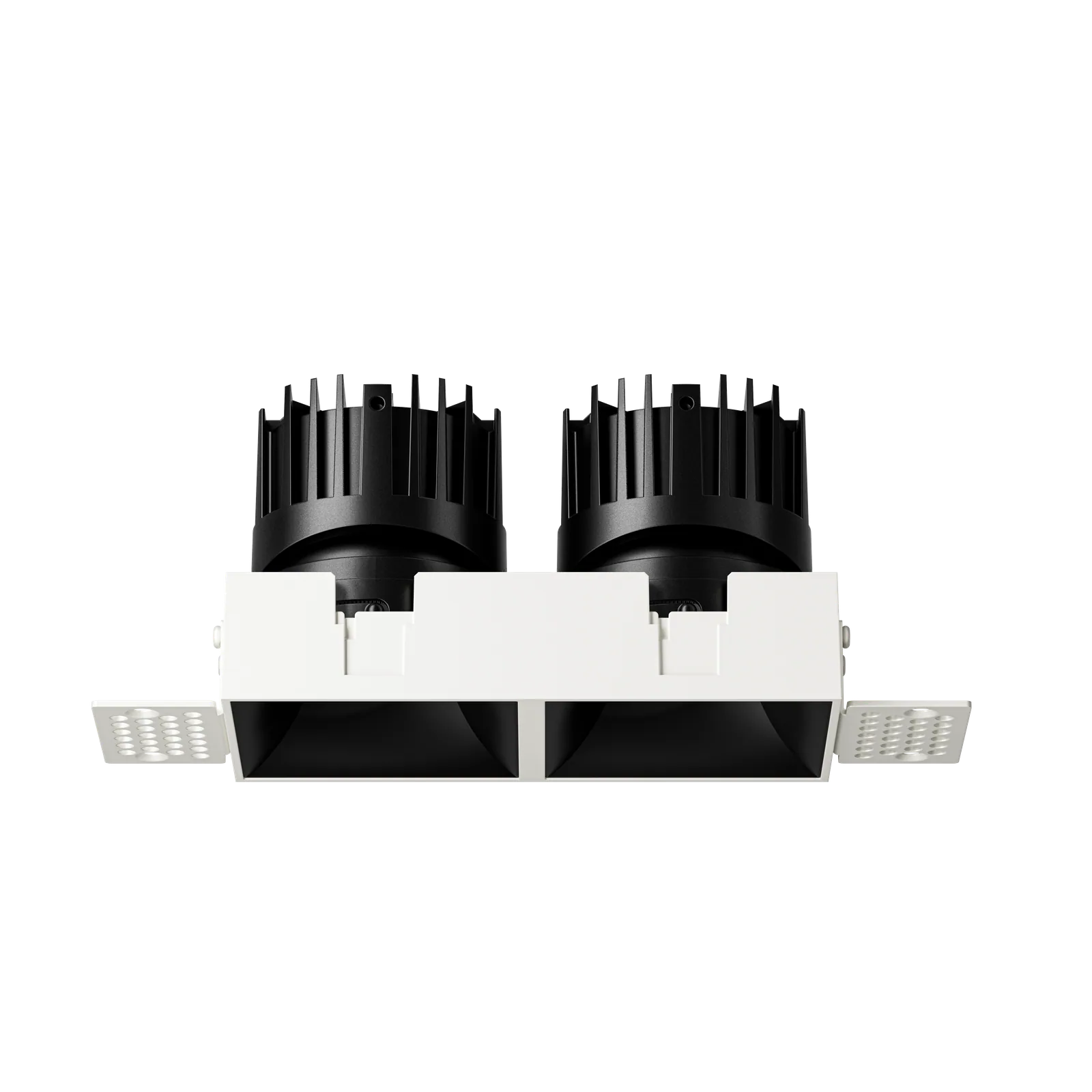

DX75DX075D2Twin-head SquareTrimless2×12W1920 lmL213×W73×H86L151×W75
Family technical dataOpen the shared optical, electrical, finish and accessory information recorded in the approved TDS.

Optical and electrical

  • Recessed installation
  • COB LED light source
  • AC220–240V input
  • 15° / 24° / 36° / 50° beam options
  • 3000K / 4000K / 6000K colour temperature options
  • CRI 90 · UGR <10 · IP20

Finish and options

  • Black and White configurations
  • Aluminum material
  • On/Off, DALI, Phase and 0–10V dimming
  • Honey comb, soften lens, clear glass and gasket
  • 50,000 hrs / 5 years stated warranty record

Discuss the Dark II family

Share the shortlisted model numbers, ceiling conditions, quantities, controls and intended application for project review.

Request project support

Application and Project Selection

Use Dark II for recessed indoor lighting layouts where the ceiling opening, recess depth and required light distribution can be coordinated before ordering.

  • Match the published cut-out and overall dimensions to the ceiling construction.
  • Select the required output and beam option in relation to mounting height, spacing and the target surface.
  • Confirm colour temperature, driver method, finish and accessories for the selected model before quotation.
  • Share the reflected ceiling plan and project schedule with LEADIN for model review and technical-file confirmation.

Options shown on this Family page must be confirmed against the final ordered configuration.
