Recessed linear downlight

Blade

Five compact linear formats combine a shallow recessed body, controlled glare and a consistent architectural aperture.

Power: 2-30W
Output: 150-2250 lm
Beam: 15° / 30° / 45°
Glare control: UGR <10

Current model

DL067E

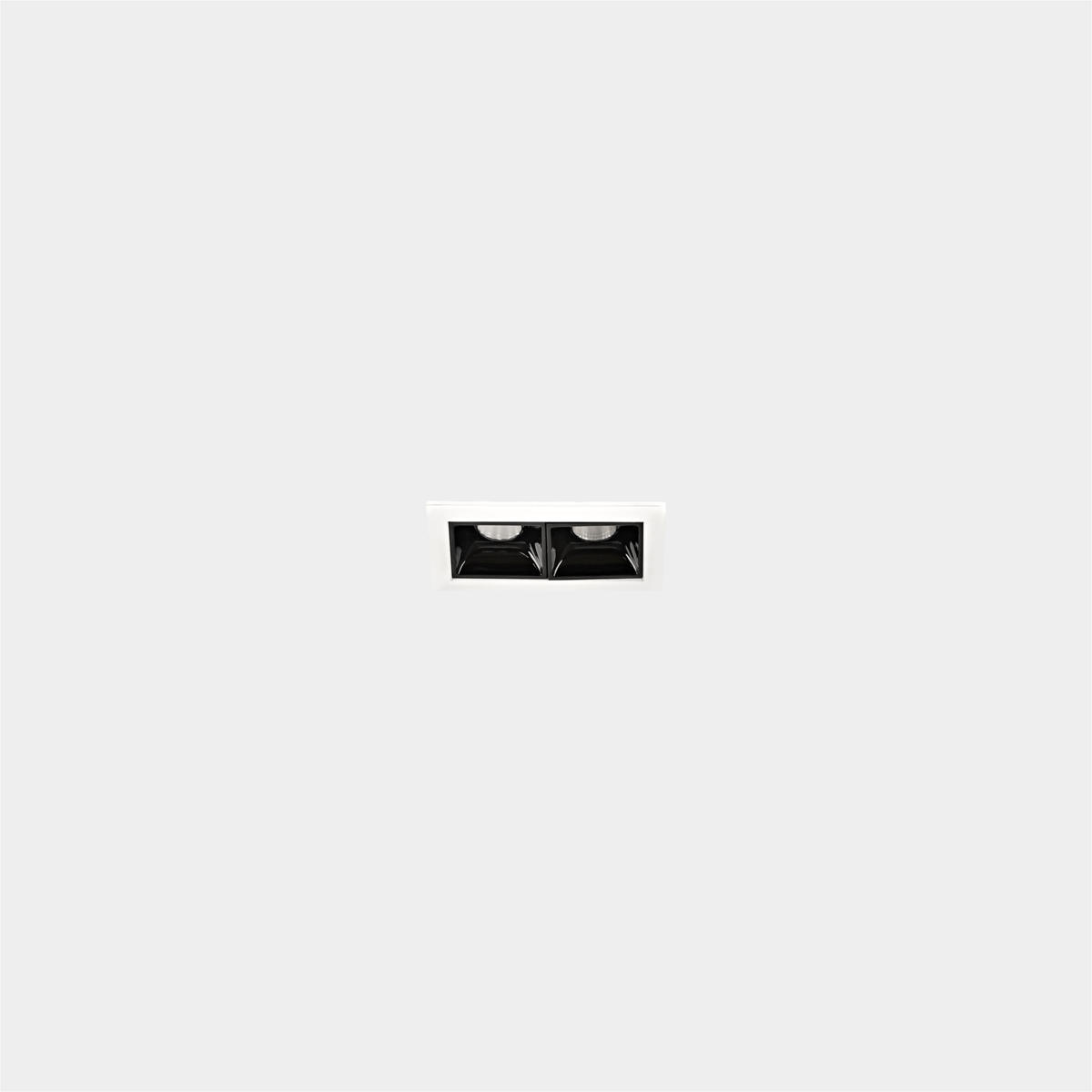

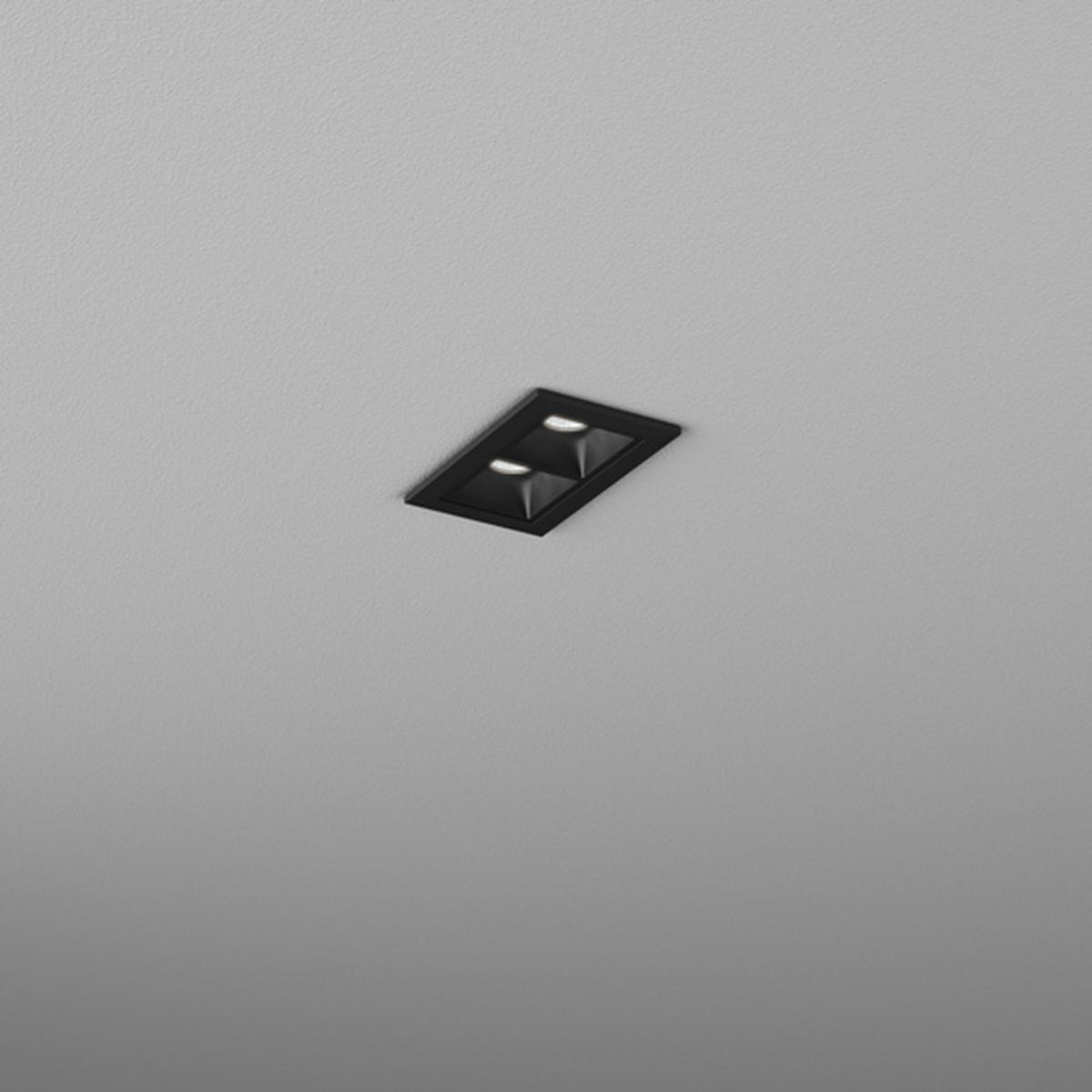

The two-cell 4W format delivers 300 lm while preserving the family's compact 45 mm width.

Model: DL067E
Power / output: 4W / 300 lm

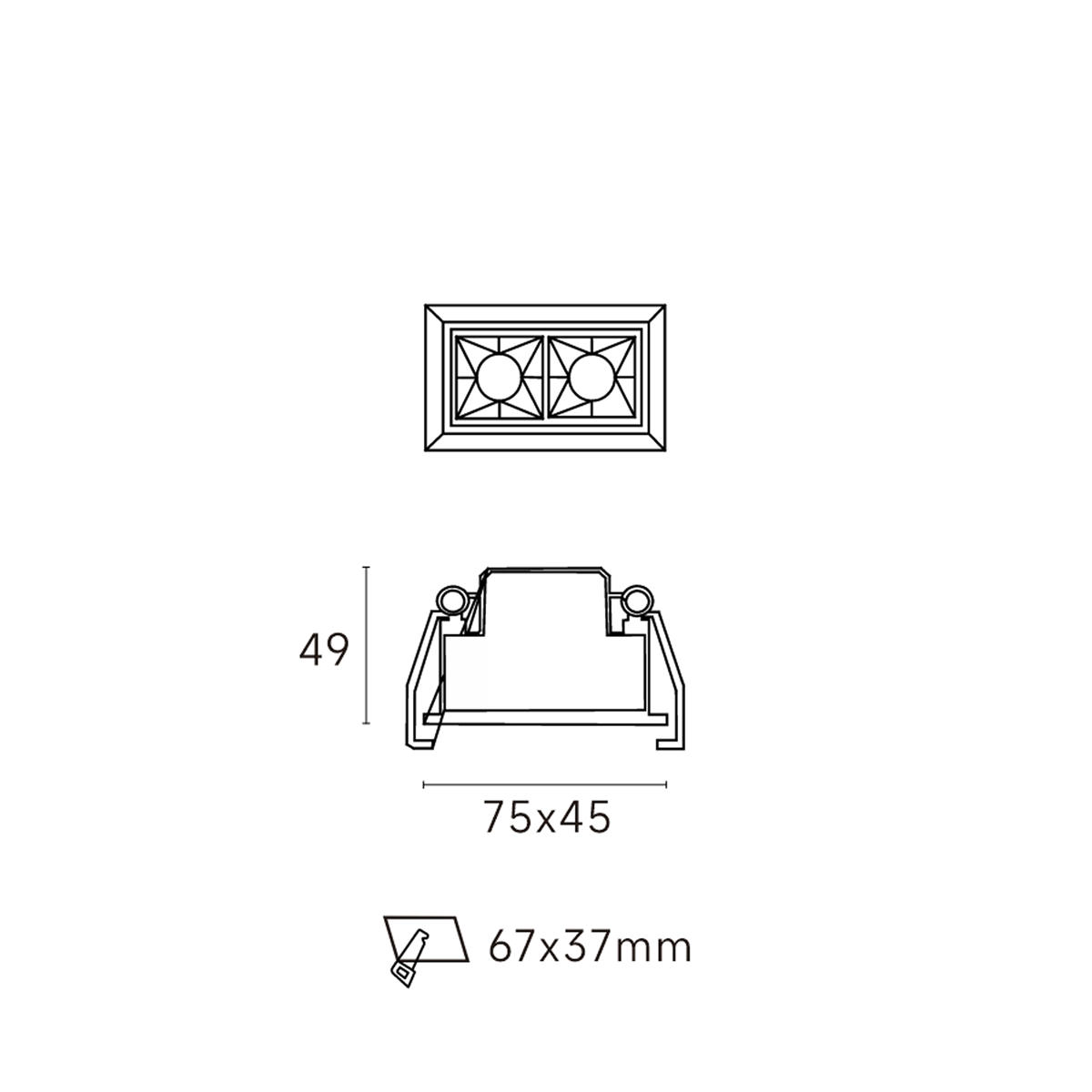

Overall size: L75 x W45 x H50 mm
Ceiling cut-out: L67 x W37 mm
Beam angles: 15° / 30° / 45°
Protection: IP20

Ask about DL067E

Published technical data

Five lengths, one consistent ceiling rhythm.

Published values follow the latest approved TDS. Final finish, control and project installation conditions are confirmed at quotation.

Installation: Recessed
Input voltage: AC 220-240V
Light source: SMD LED
Colour temperature: 3000K / 4000K / 6000K
Colour rendering: CRI 90
Glare rating: UGR <10
Beam angles: 15 degrees / 30 degrees / 45 degrees
Protection: IP20
Control options: On/Off / DALI / Phase / 0-10V
Finishes: White / Black
Material: Aluminium
Lifetime / warranty: 50,000 h / 5 years

Application

Compact apertures, precise pools of light.

Retail, hospitality and circulation scenes show the family integrated into finished ceilings. Final model, output, beam and spacing remain project-specific.

Blade linear downlights integrated into a refined retail ceiling — Retail interior

Blade linear downlights used for precise retail lighting — Display lighting

Blade linear downlights in a contemporary reception interior — Reception

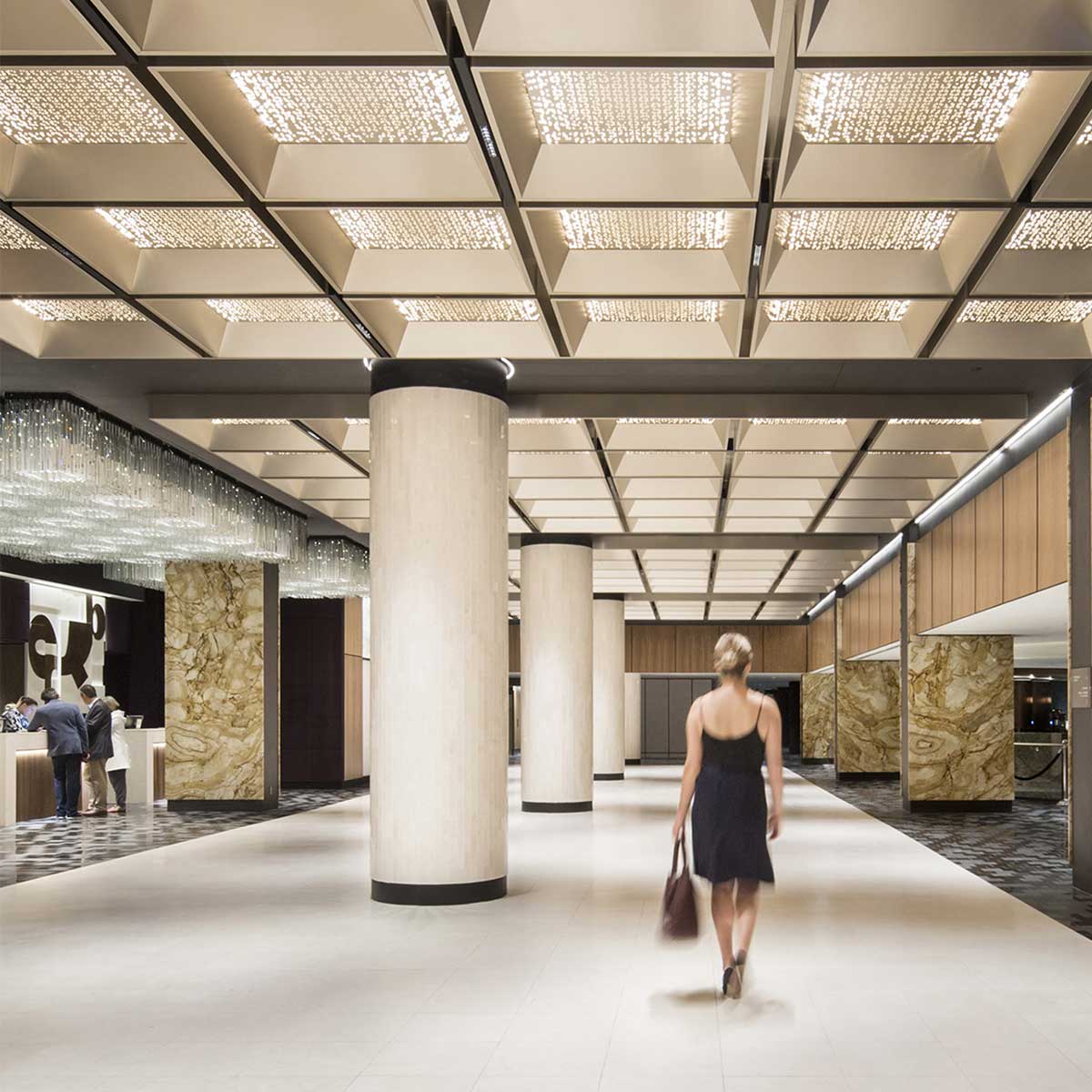

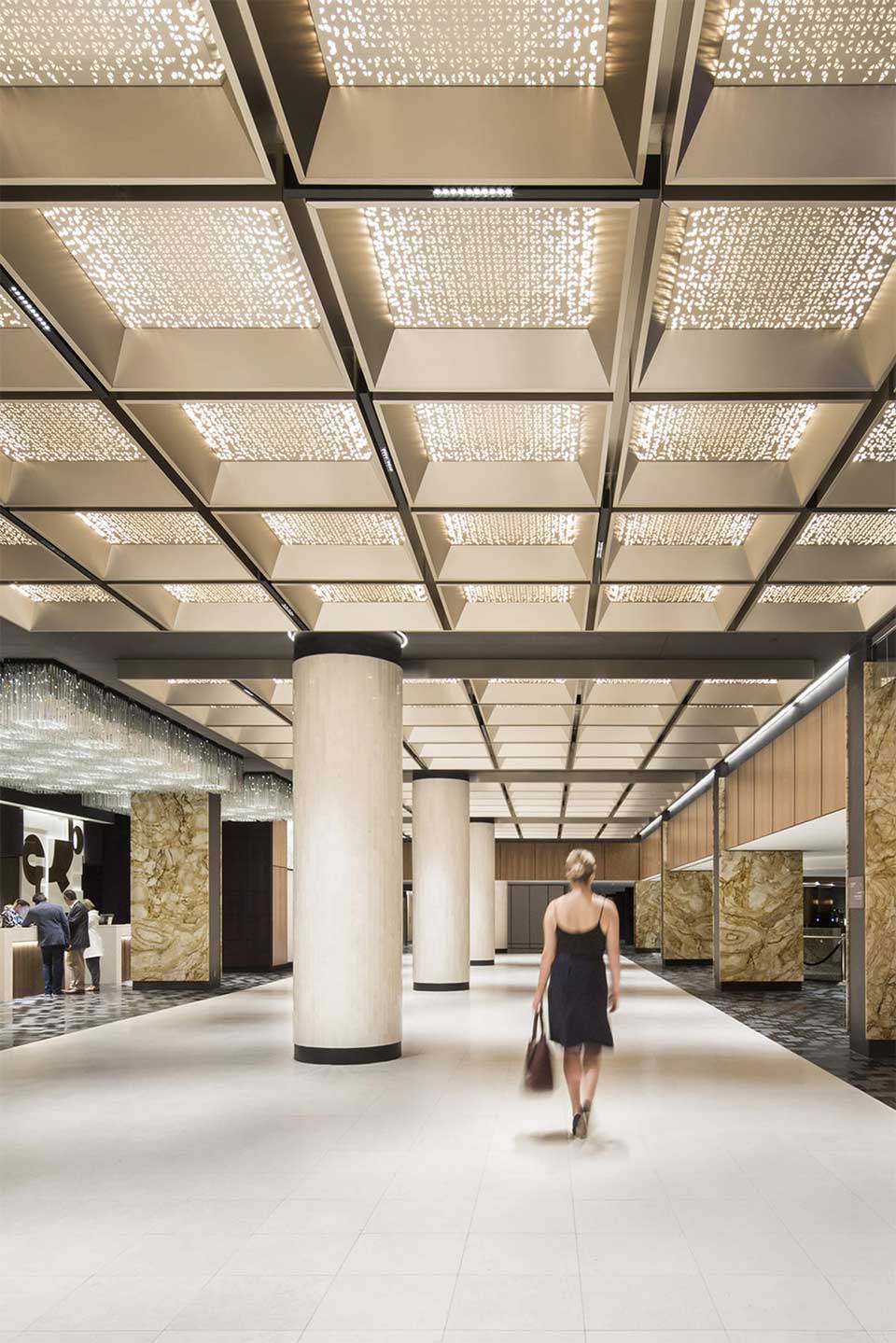

Blade linear downlights integrated into an architectural lift lobby — Lift lobby

Blade family used for architectural ceiling lighting — Architectural ceiling

Blade family used in a refined hospitality interior — Hospitality interior

Project support

Confirm the ceiling build-up, cut-out and beam.

Share the ceiling construction, mounting depth, quantities, preferred finish, colour temperature, beam and control requirements for model review.
