Blade Adjustable / Recessed Downlight

Focused light in a quiet linear form.

A low-profile recessed family for retail, hospitality and commercial interiors that need precise ceiling integration.

Power: 10-30W
Output: 750-2250 lm
Beam: 15° / 30° / 45°
Glare control: UGR <10

Current model

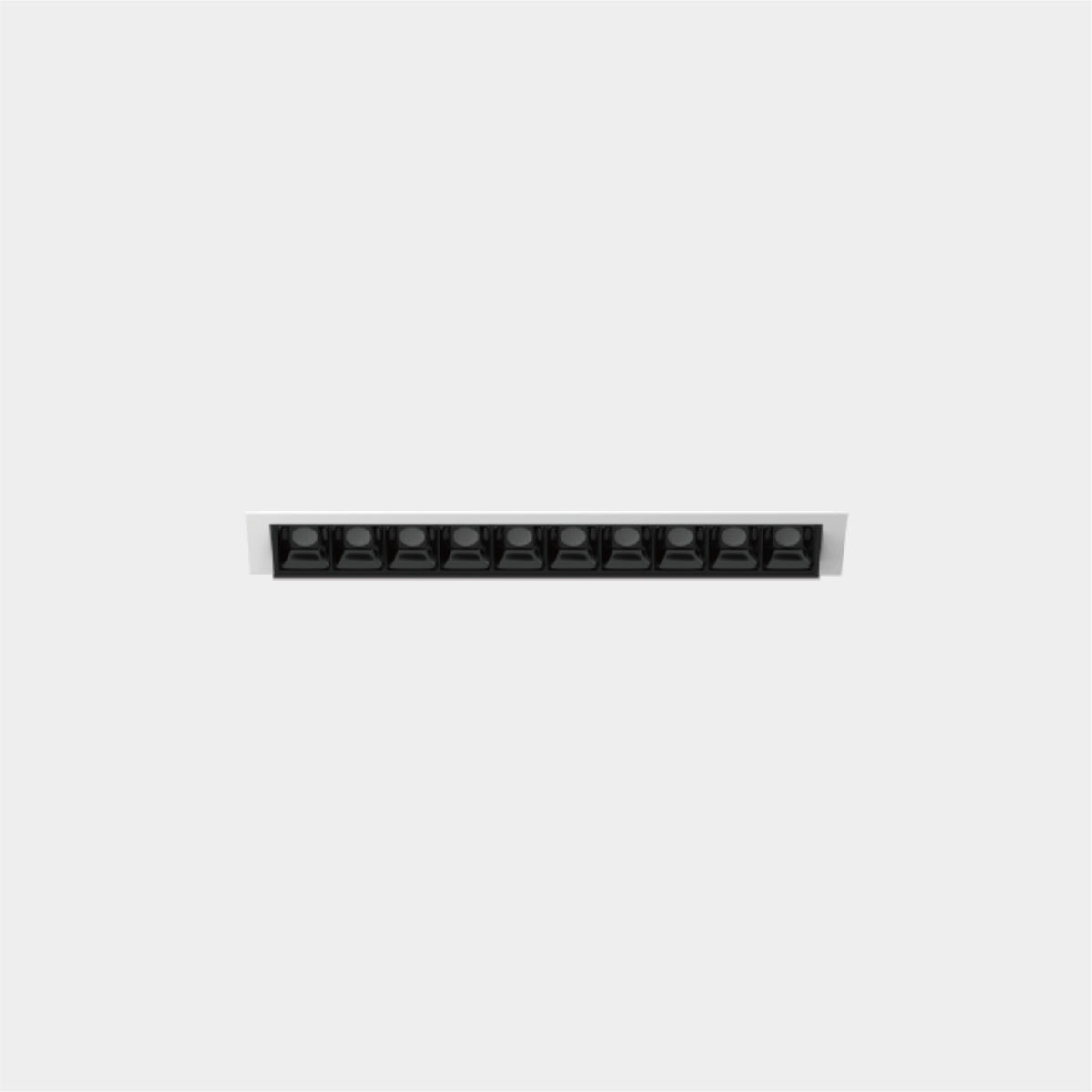

DL285F

The 20W middle format, delivering 1500 lm across a longer linear recessed aperture.

Model: DL285F
Power / output: 20W / 1500 lm
Overall size: L291 x W59 x H50 mm
Ceiling cut-out: L285 x W53 mm
Beam angles: 15° / 30° / 45°
Protection: IP20

Ask about DL285F

Published technical data

Three lengths, one precise ceiling language.

Published values follow the latest leadinlight TDS. Final finish, control and project installation conditions are confirmed at quotation.

Installation: Recessed
Input voltage: AC 220-240V
Light source: SMD LED
Colour temperature: 3000K / 4000K / 6000K
Colour rendering: CRI 90
Glare rating: UGR <10
Control options: On/Off / DALI / Phase / 0-10V
Finishes: White / Black
Material: Aluminium
Lifetime / warranty: 50,000 h / 5 years

Family application context

Built for visual focus without ceiling clutter.

Use the scenes to review visual scale and atmosphere. Final output, beam and spacing remain project-specific.

Blade Adjustable family used above merchandise shelving — Merchandise shelving

Blade Adjustable family used in a hospitality reception area — Hospitality reception

Blade Adjustable family used above a dining and meeting area — Dining and meeting

Blade Adjustable family used for a material display wall — Material presentation

Project support

Confirm the ceiling cut-out, optic and aiming intent.

Share the ceiling build-up, room type, quantities, preferred colour temperature, beam and control requirements. Our team can check the selected model against the project.
