Recessed linear downlight

Blade Trimless

Three linear formats sit flush within the ceiling, combining precise optics with a quiet, trim-free architectural line.

Power: 10-30W
Output: 750-2250 lm
Beam: 15° / 30° / 45°
Glare control: UGR <10

Current model

DL273H

The 20W format extends the linear aperture while delivering 1500 lm for larger interior zones.

Model: DL273H
Power / output: 20W / 1500 lm
Overall size: L273 x W86 x H47 mm
Ceiling cut-out: L273 x W45 mm
Beam angles: 15° / 30° / 45°
Protection: IP20

Ask about DL273H

Published technical data

Three lengths, one continuous ceiling language.

Published values follow the latest approved TDS. Final finish, control and project installation conditions are confirmed at quotation.

Installation: Recessed trimless
Input voltage: AC 220-240V
Light source: SMD LED
Colour temperature: 3000K / 4000K / 6000K
Colour rendering: CRI 90
Glare rating: UGR <10
Beam angles: 15 degrees / 30 degrees / 45 degrees
Protection: IP20
Control options: On/Off / DALI / Phase / 0-10V
Finishes: White / Black
Material: Aluminium
Lifetime / warranty: 50,000 h / 5 years

Application

Linear precision without visual clutter.

Residential, hospitality and circulation scenes show the family integrated into finished ceilings. Final model, output, beam and spacing remain project-specific.

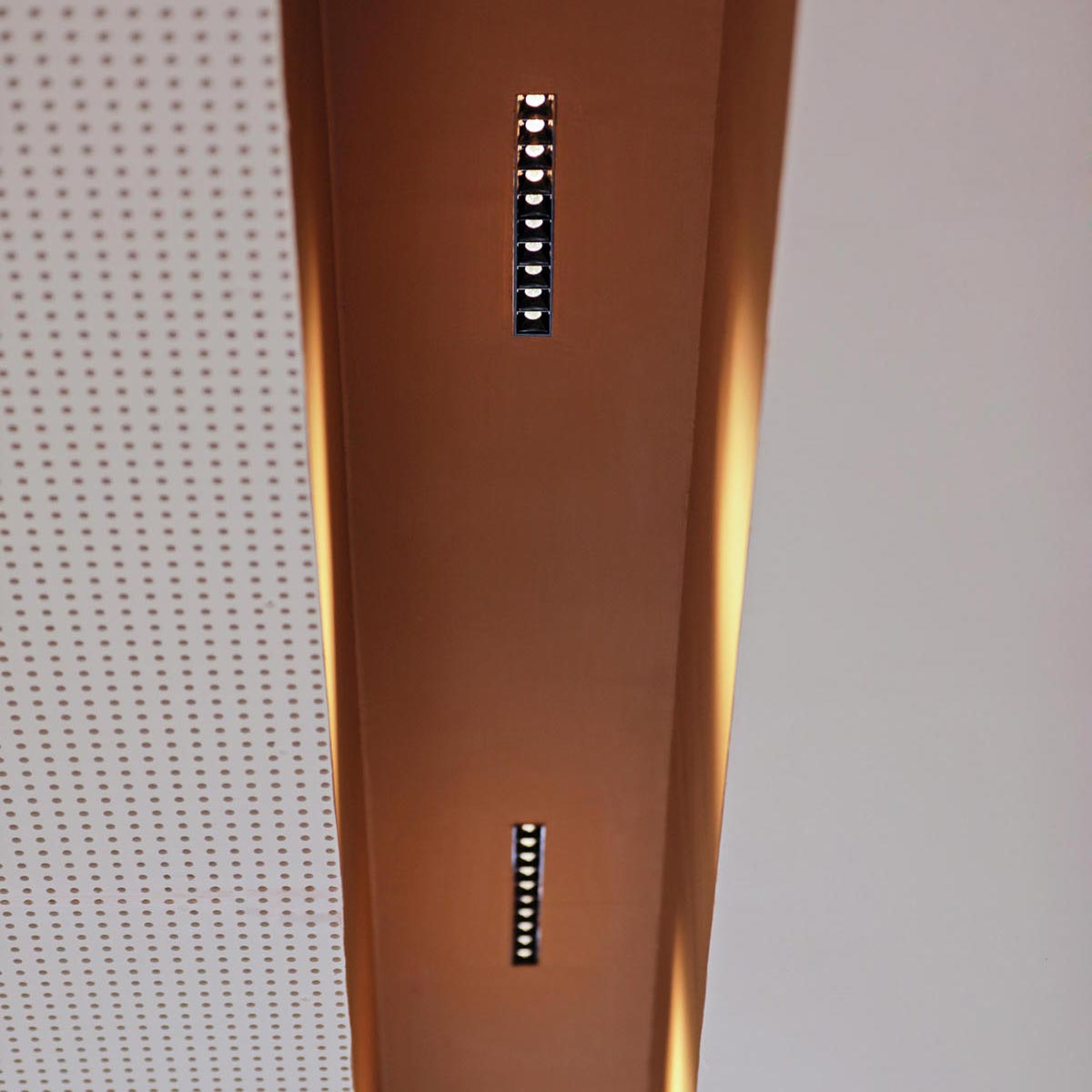

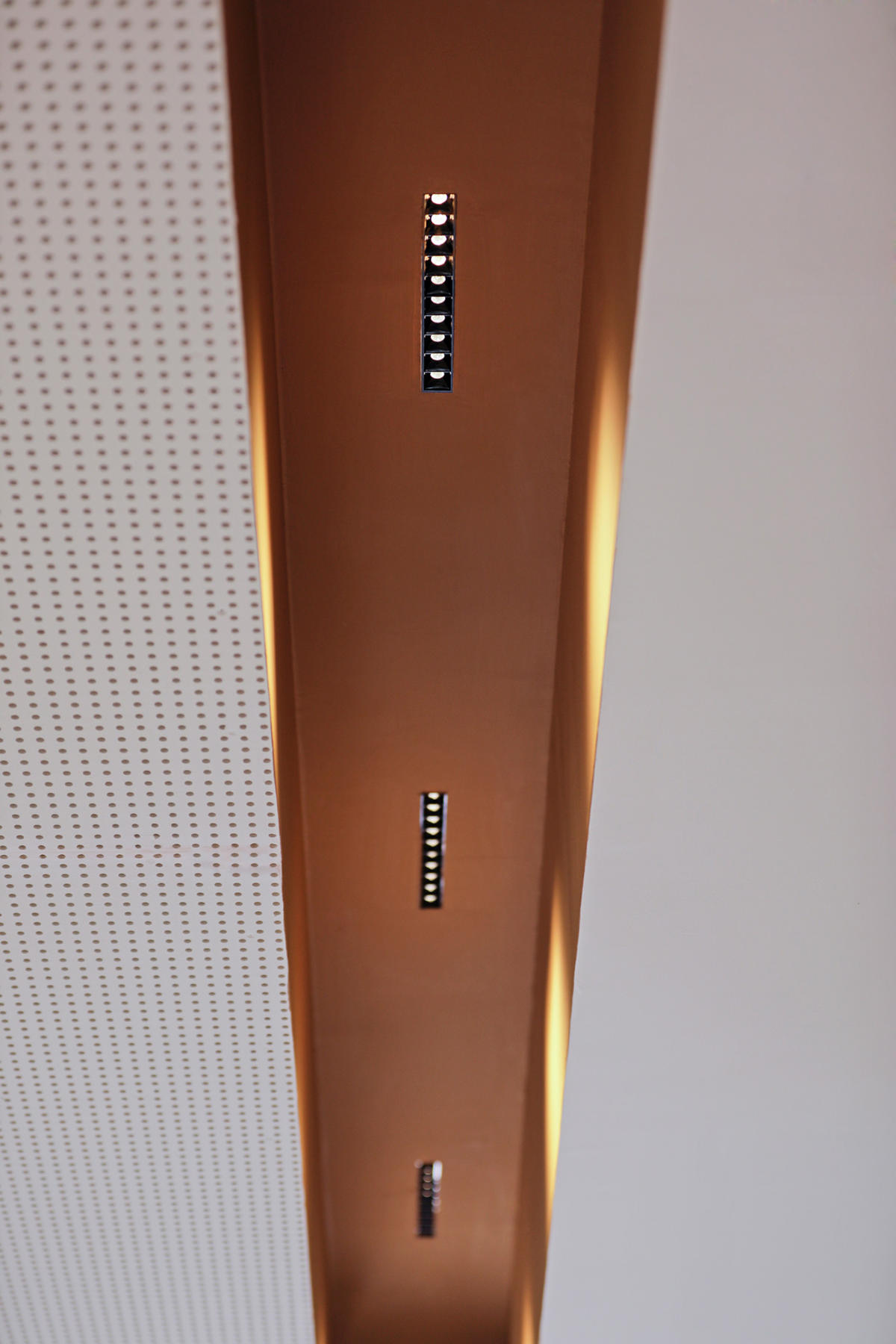

Blade Trimless linear downlights integrated into a warm residential ceiling — Residential interior

Blade Trimless family used for precise ambient lighting — Ambient lighting

Blade Trimless family used in a contemporary interior — Contemporary interior

Blade Trimless linear downlights integrated into a living room ceiling — Living room

Blade Trimless family used for architectural ceiling lighting — Architectural ceiling

Blade Trimless family used in a refined hospitality interior — Hospitality interior

Project support

Confirm the ceiling build-up, cut-out and beam.

Share the ceiling construction, mounting depth, quantities, preferred finish, colour temperature, beam and control requirements for model review.
