Comp Surface product family in three sizes

Surface-mounted downlights

Comp Surface

Three cylindrical downlight sizes with IP65 protection and low-glare optics for interiors and sheltered outdoor spaces.

Power: 10-30W
Output: 800-2400 lm
Glare control: UGR <10
Protection: IP65

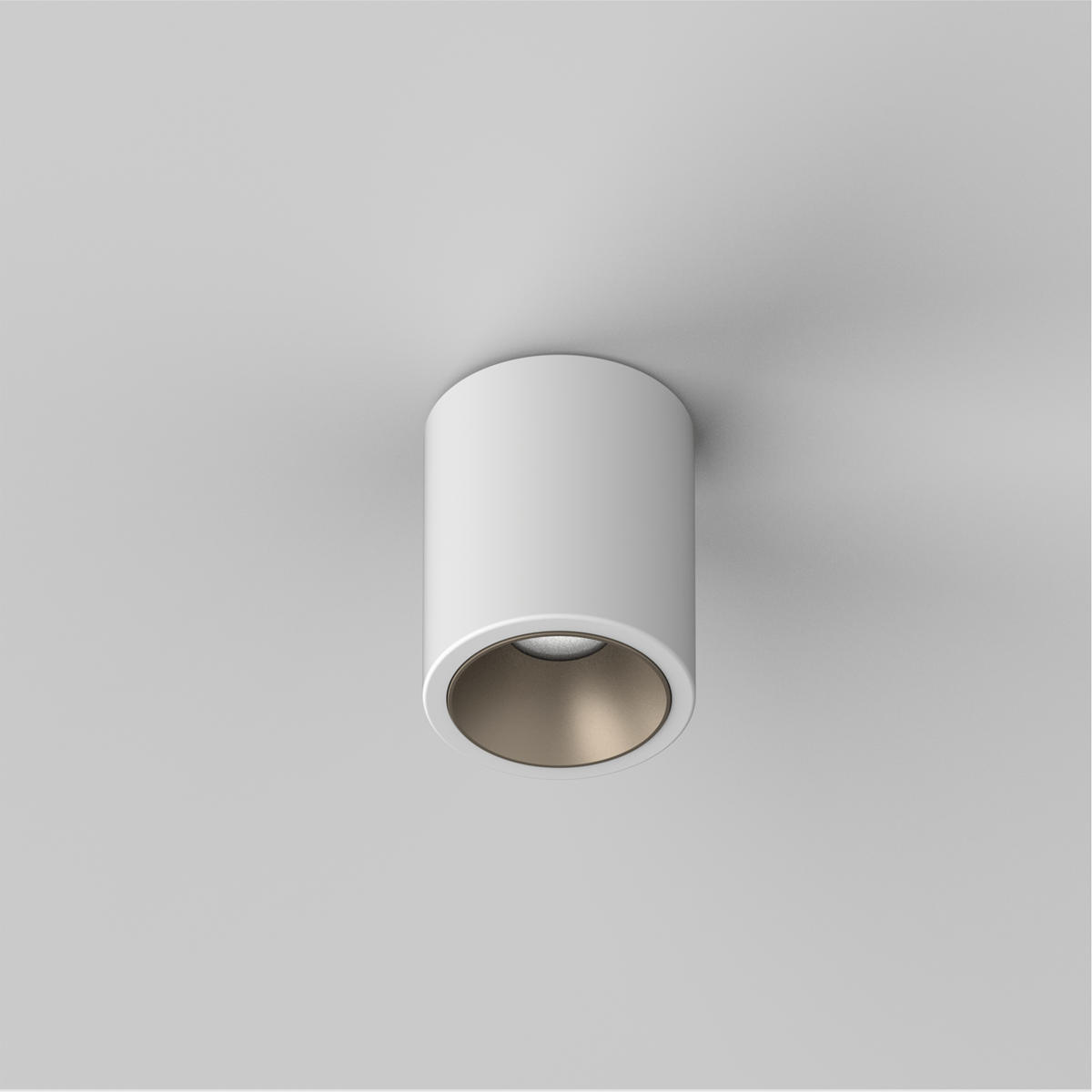

SD080A white surface-mounted downlight

Current model

SD080A

A 10W surface-mounted downlight with IP65 protection and low-glare optics.

Model: SD080A
Power / light: 10W / 800 lm
Body size (TDS): D80 x H90 mm
Installation: Surface mounted
Cutout: N/A
Beam angle: 15°/24°/36°/60°
Control options: On/Off / DALI Dim / Phase Dim / 0-10V Dim

Ask about SD080A

Technical data

Technical specification.

Input voltage: AC220-240V
Light source: COB LED
Colour temperature: 3000K/4000K/6000K
Colour rendering: 90
Beam angle: 15°/24°/36°/60°
Glare control: <10
Protection: IP65
Control options: On/Off / DALI Dim / Phase Dim / 0-10V Dim
Finish options: White / Black
Material: Aluminum
Lifetime / warranty: 50000 hrs/5 years
Accessories: N/A

Family range

Three coordinated sizes.

Comp Surface three-size product range — Comp Surface

Application

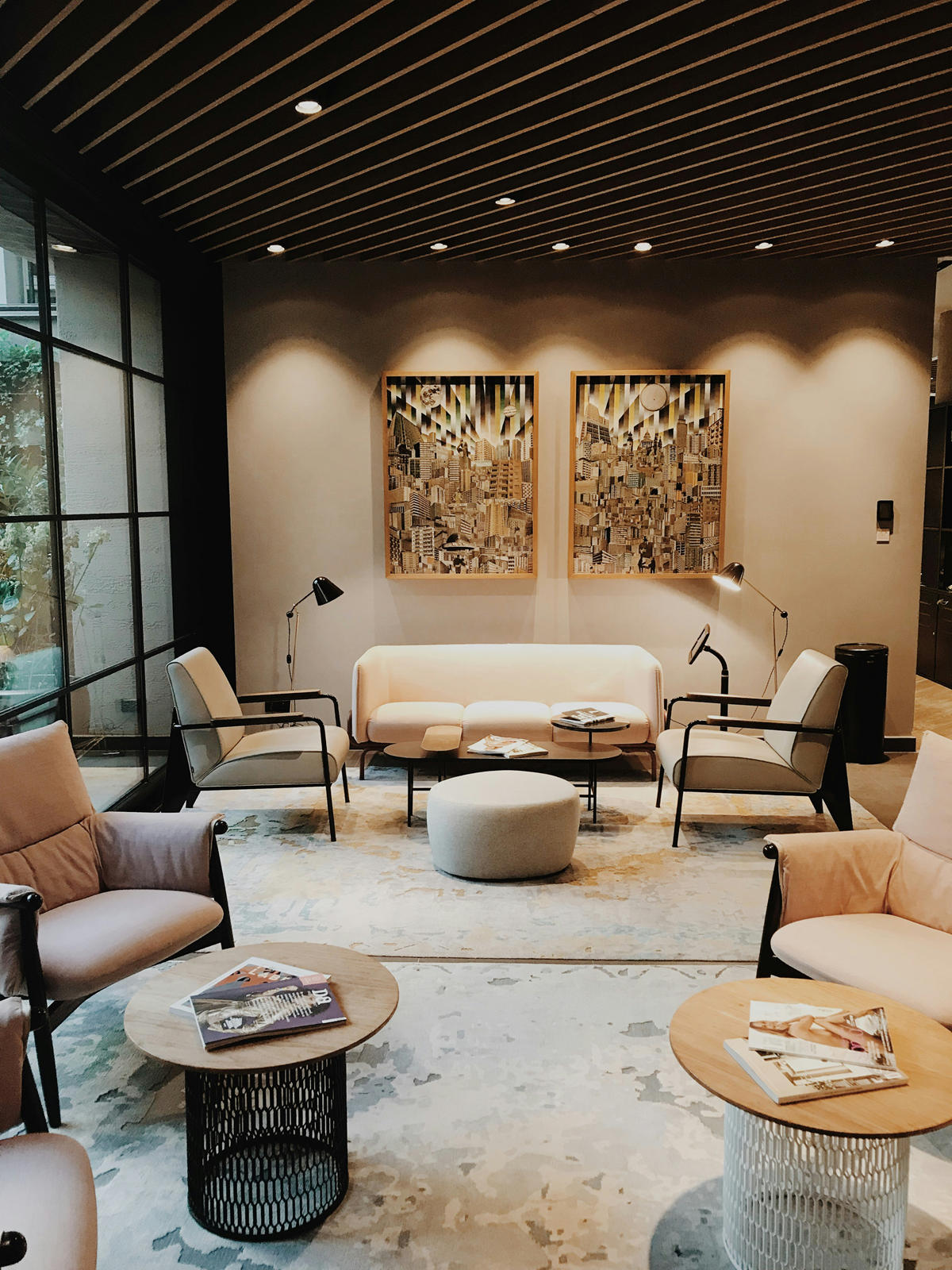

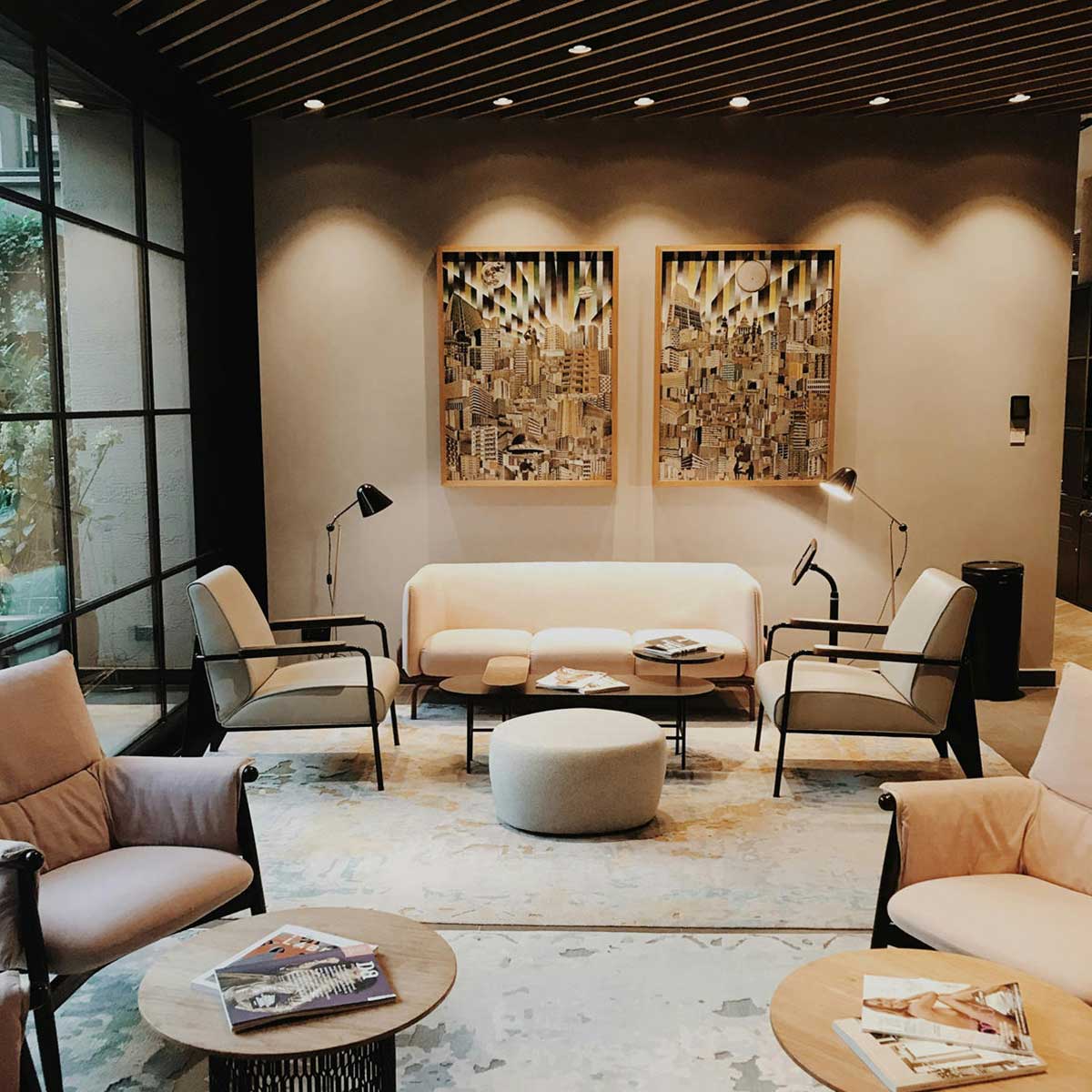

Comp Surface in application.

SD080A application 1

SD080A application 2

SD080A application 3

SD080A application 4

SD080A application 5

Project support

Specify Comp Surface for the space.

Share the downlight, ceiling layout and control requirements for your project.
