Outdoor linear wall washing across a textured architectural facade

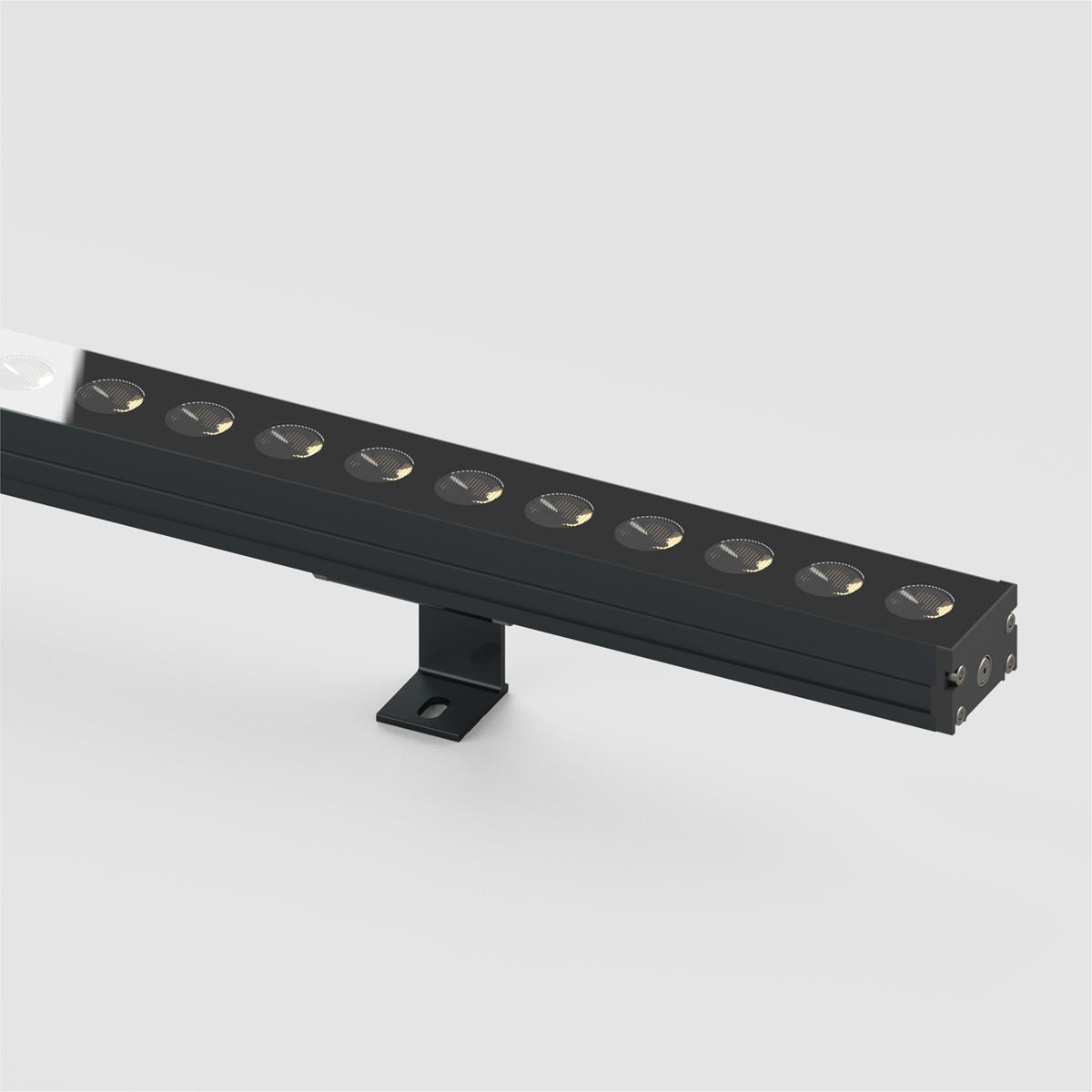

WW01-36W / Linear Wall Washer

Linear control for architectural surfaces.

Seven verified WW01, WW02 and WW03 configurations for facade, landscape and hospitality lighting.

Power: 36W
Output: 2160 lm
Protection: IP65
Impact: IK09

Product

Current model

WW01-36W

Mid-output WW01 configuration for continuous architectural surfaces.

Model: WW01-36W
Installation: Outdoor surface mounted
Power / output: 36W / 2160 lm

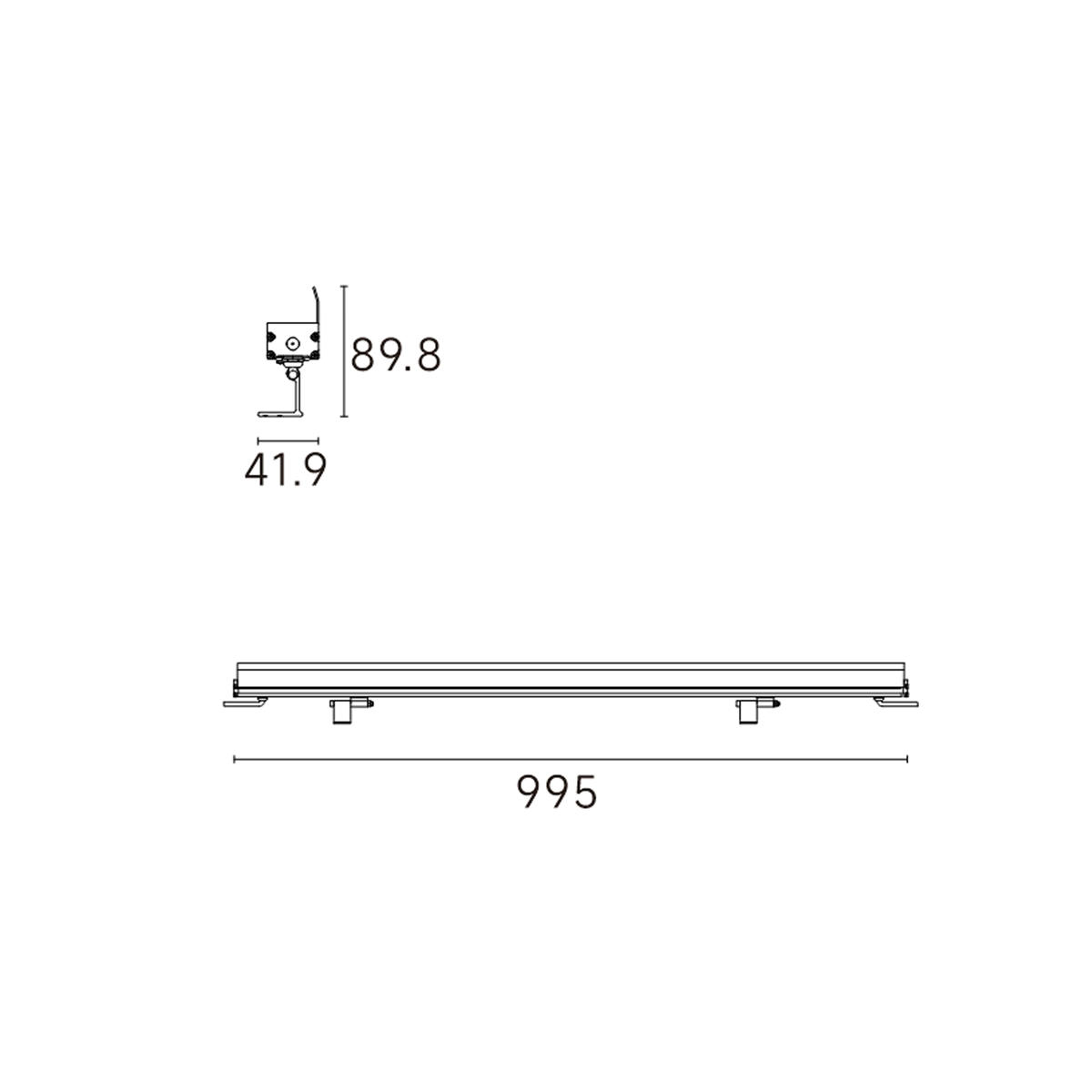

Overall size: L1000 x W40 x H68 mm
Beam: 15° / 30° / 45° / 60° / 15 x 60° / 20 x 40° / 20 x 60°
Protection: IP65 / IK09
Finishes: White / Black / Gray

Ask about WW01-36W

Published technical data

Three profiles, one facade-lighting family.

Published values follow the latest verified TDS. Final optic, colour, control and finish are confirmed for the project.

Product type: Outdoor linear wall washer
Installation: Outdoor surface mounted
Input voltage: DC 24V
Light source: SMD LED
Colour temperature: 3000K / 4000K / 6000K / RGB
Colour rendering: CRI 80
Control: On/Off / DALI / Phase / 0-10V / DMX
Accessory: Shade plate
Material: Aluminium
Lifetime / warranty: 50,000 h / 5 years

Family application context

Grazing, washing and colour across the elevation.

These verified family scenes show the intended architectural contexts. Final output, beam and spacing are selected for each project.

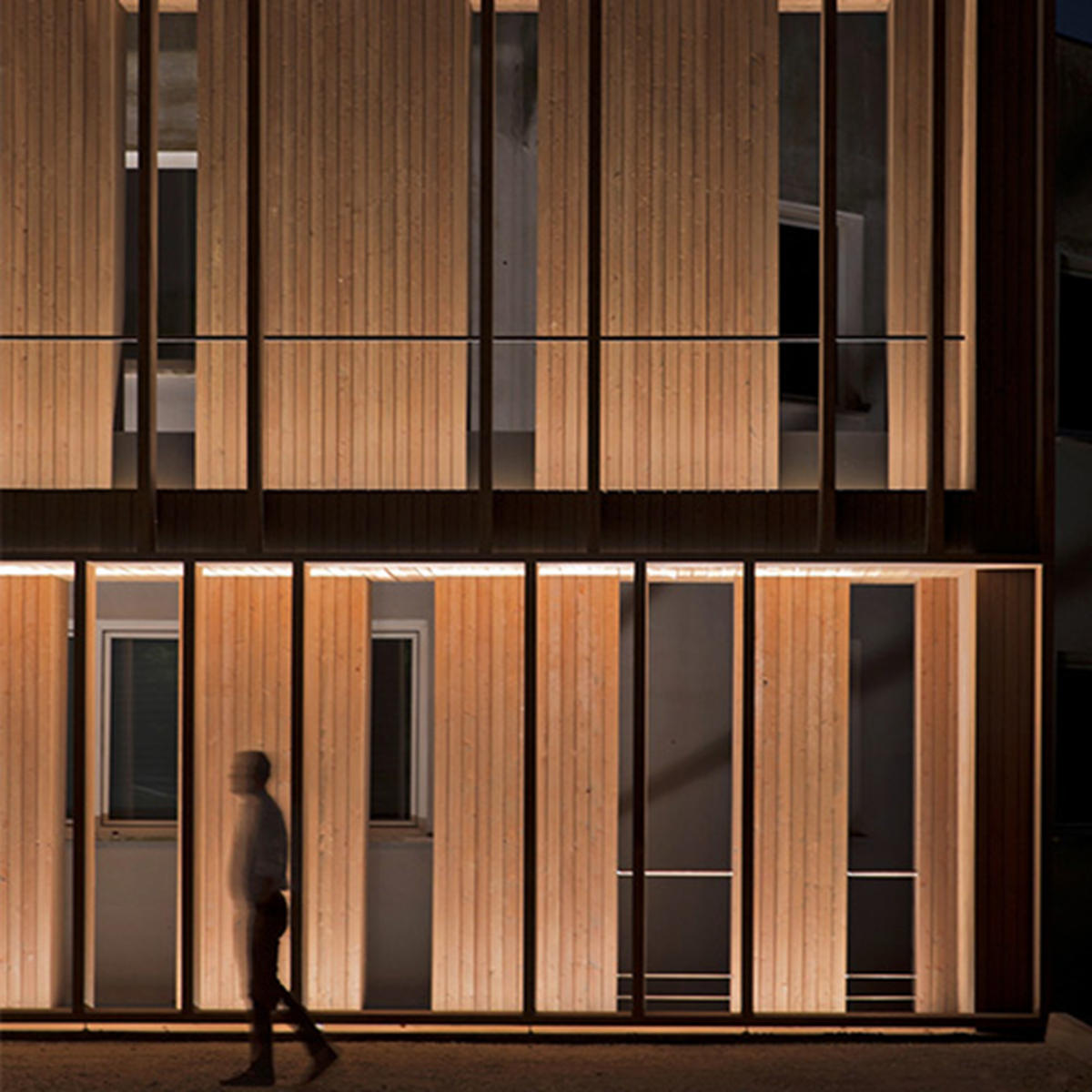

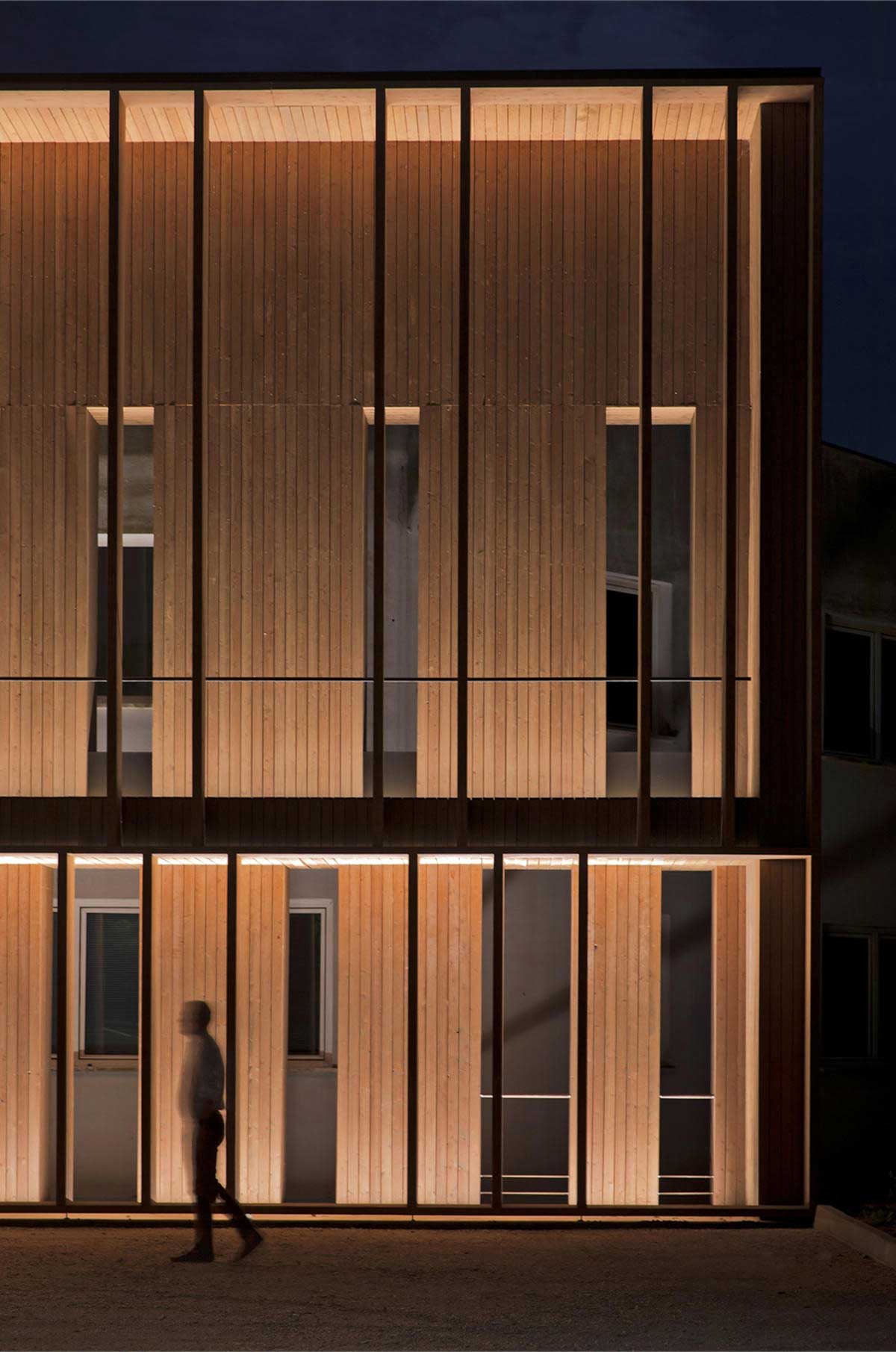

Warm linear wall washing along a modern exterior facade — WW02 family / Facade wash

Linear wall washing integrated into an exterior landscape edge — WW03 family / Landscape edge

Project support

Match profile, beam and control to the elevation.

Share elevations, mounting positions, throw distances, quantities and control requirements. Our team can review the WW configuration for the intended surface.

Discuss a project
