Current model

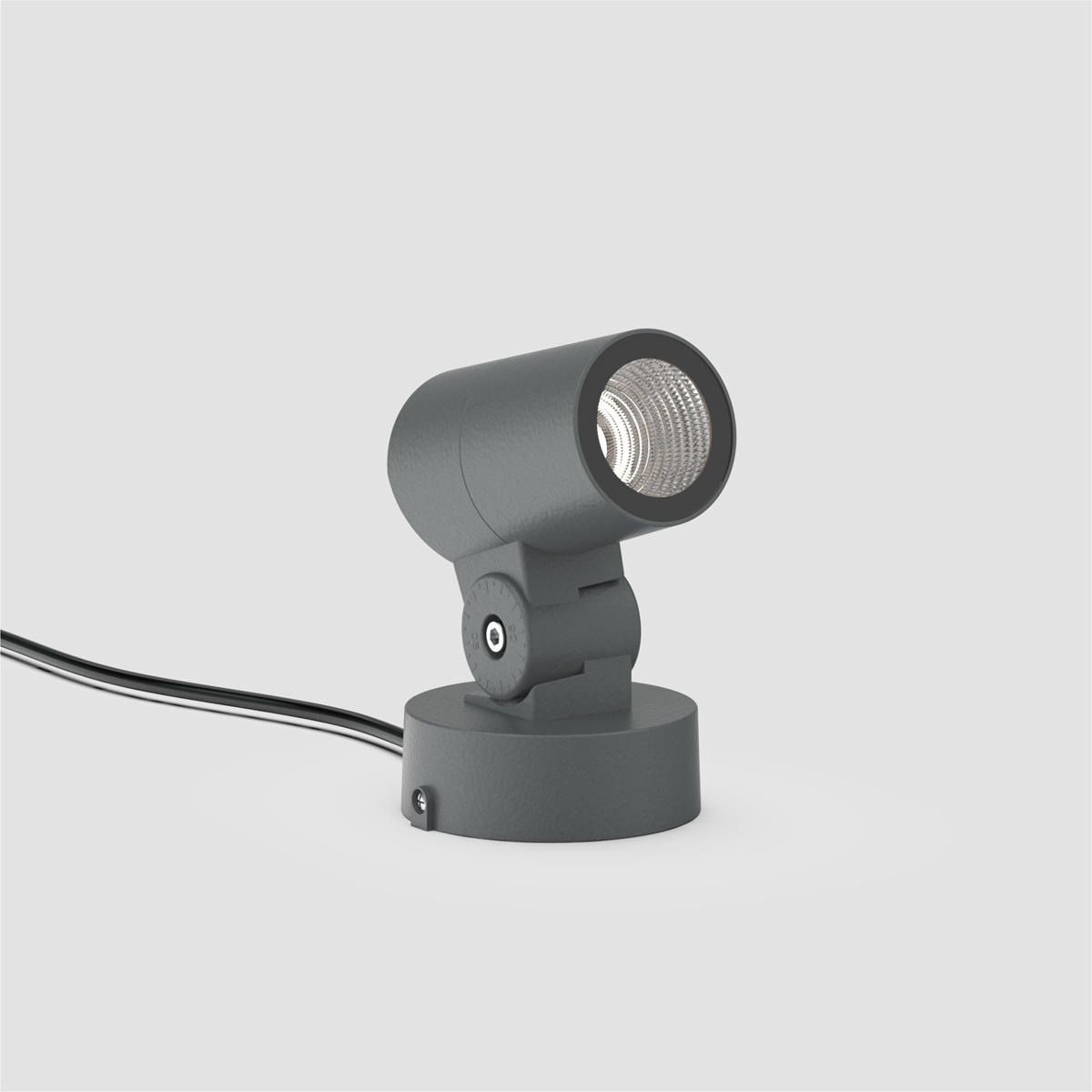

PJ03-7W
Select the body size and output for the mounting distance, target surface and required beam.
- Model
- PJ03-7W
- Power / output
- 7W / 560 lm
- Body size
- D60 x 103 mm
- Beam angle
- 15° / 30° / 45° / 60°
- Protection
- IP66 / IK09
- Finish
- White / Black / Grey
Published technical data
Five sizes, one coherent projector family.
The PJ03 range shares the same optical, protection and control platform. Body size, power and output change with the selected model.
- Installation
- Outdoor surface mounted
- Input voltage
- DC24V / AC220-240V
- Light source
- COB LED
- Colour temperature
- 3000K / 4000K / 6000K
- Colour rendering
- CRI 80
- Material
- Aluminium
- Control options
- On/Off / DALI / Phase / 0-10V / DMX
- Accessories
- Ground spike / ground post / pole bracket
- Lifetime / warranty
- 50,000 hours / 5 years
Application

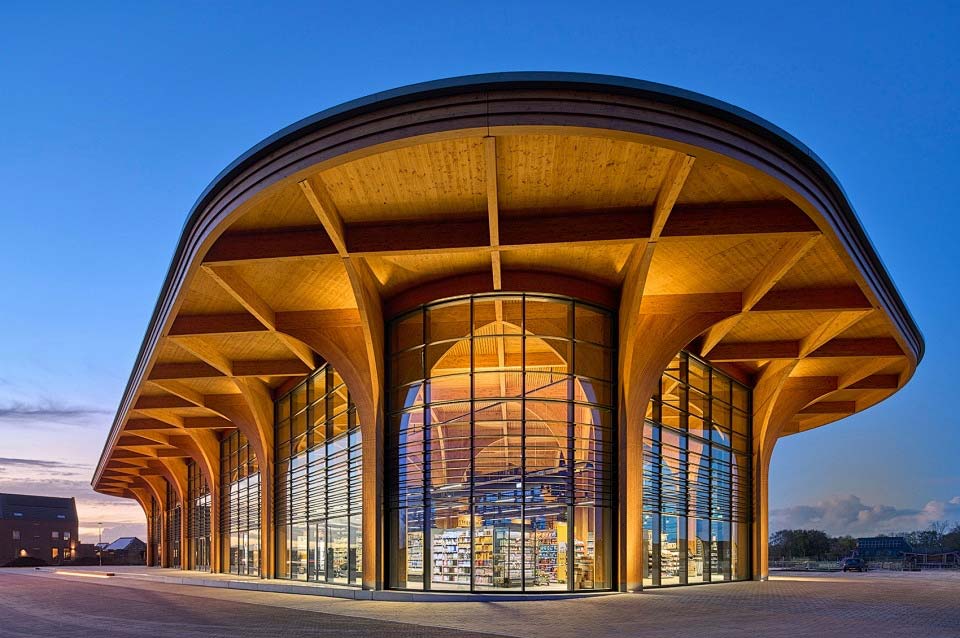

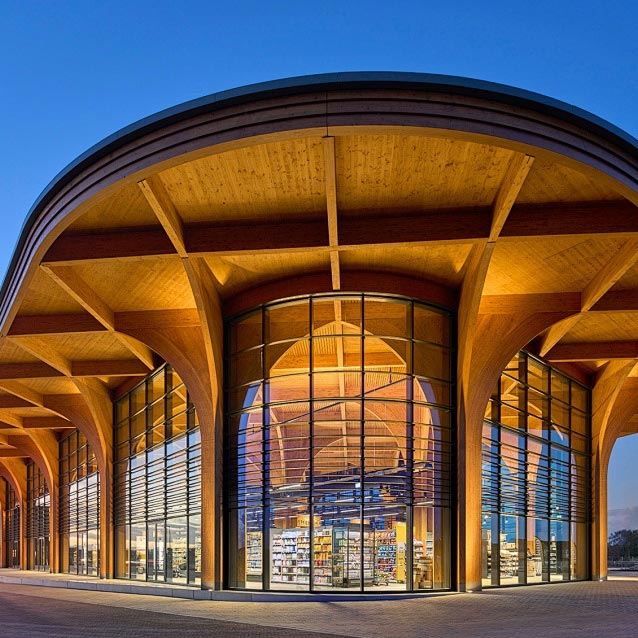

Shape facades, structures and landmarks.
Architectural applications show how controlled aiming and beam choice can reveal material, rhythm and depth after dark.
Project support
Confirm the beam, aiming and mounting condition.
Share the elevations, mounting distance, target surfaces, quantities and control requirements. Our project team can check the selected PJ03 model against the lighting intent.
Discuss a project
