Current model

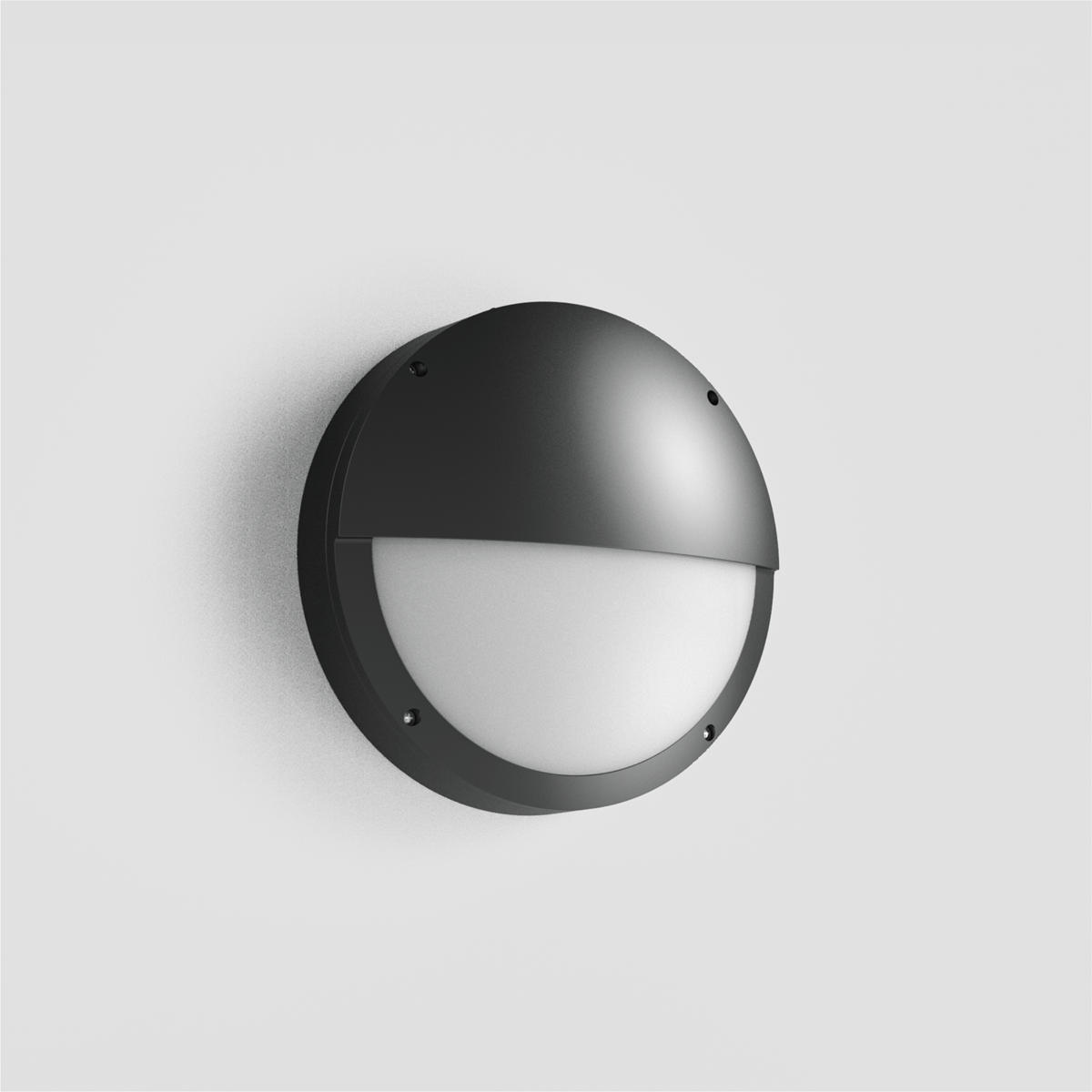

BH02
20WHalf shield
Choose the face design for the project. Power, lumen output, protection rating and control options remain shared across the family.
- Model
- BH02
- Output
- 1600 lm

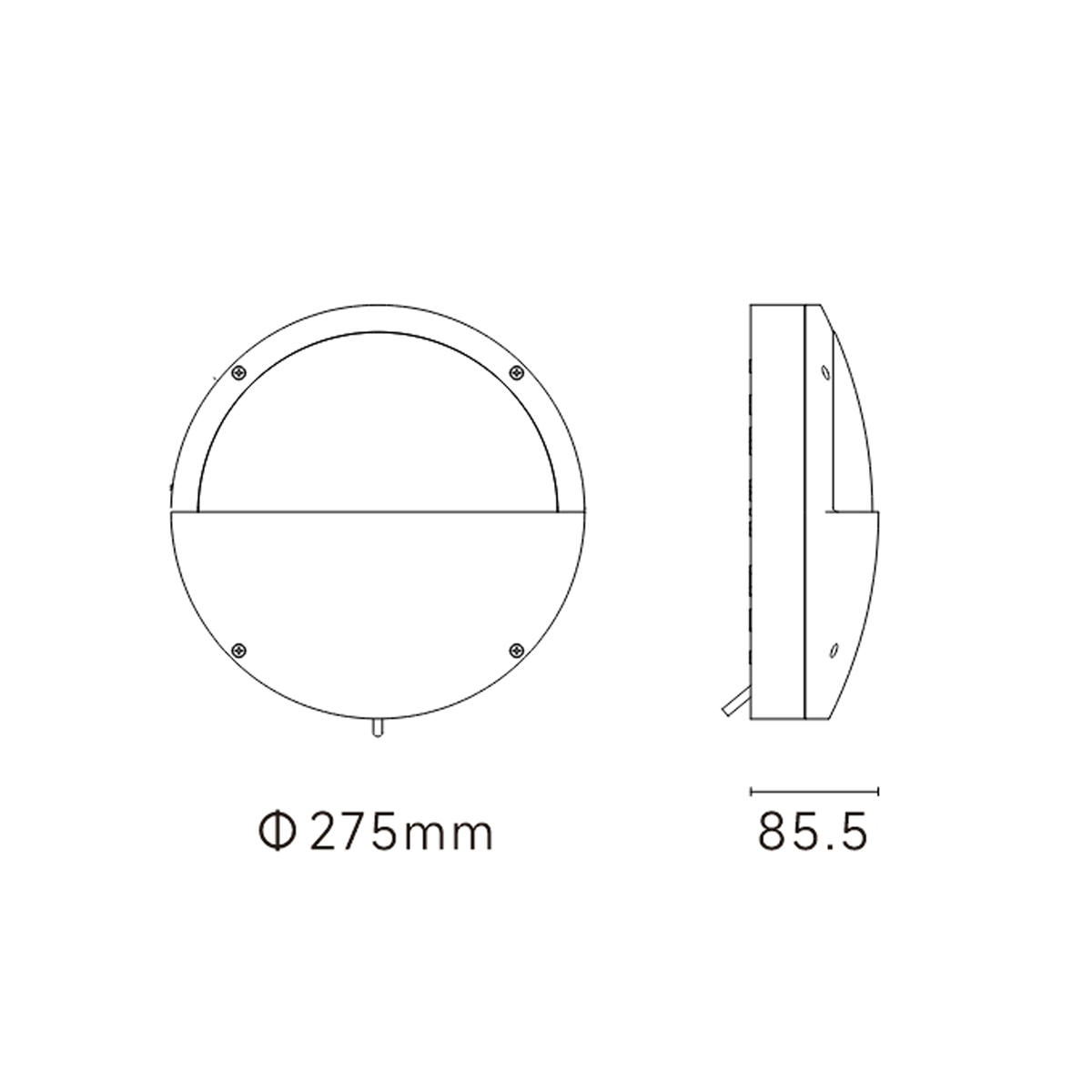

- Dimension
- D275 x H85 mm
- Protection
- IP65 / IK08
Shared technical data
Specified as a family.
All three face designs use the same electrical and performance platform. Final colour, control method and configuration are confirmed with the selected model at quotation.
Ask about this family- Installation
- Outdoor wall or surface mounting
- Input voltage
- AC 220-240V
- Light source
- SMD LED
- Colour temperature
- 3000K / 4000K / 6000K
- Colour rendering
- CRI 80
- Optic
- Flood distribution
- Housing
- Aluminium
- Finish options
- White / Black / Grey
- Control options
- DALI / DMX
- Lifetime / warranty
- 50,000 h / 5 years
Application

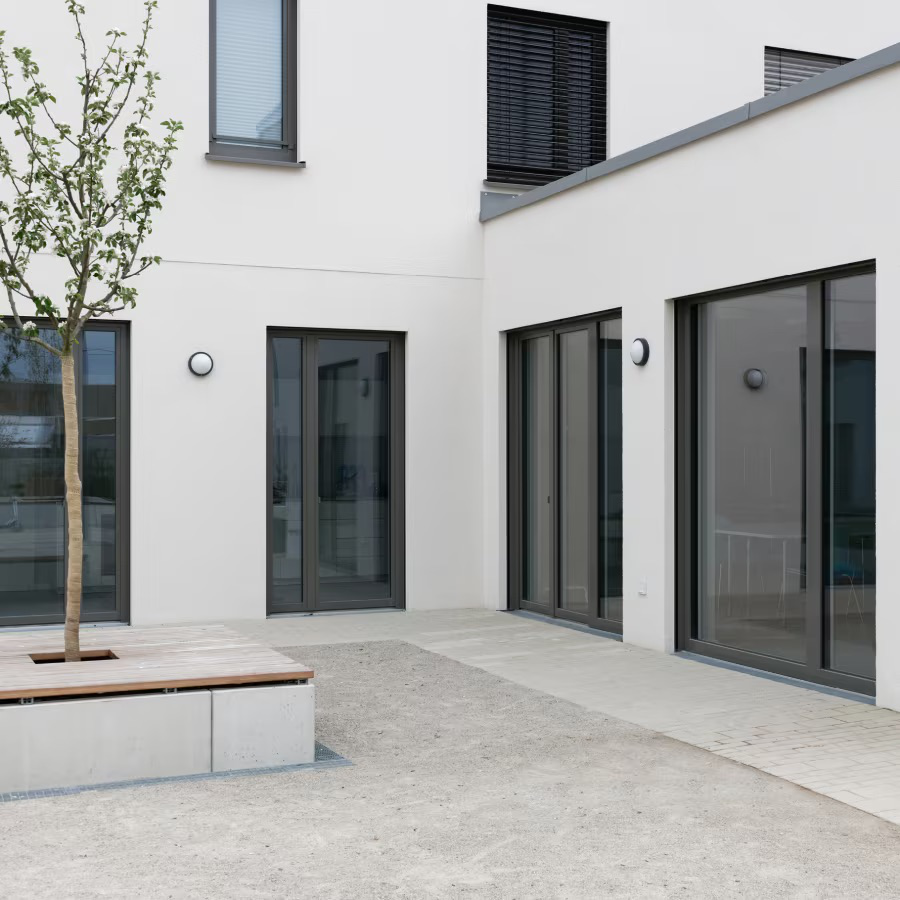

A clear architectural presence, by day and after dark.
Project support
Shortlist the face design, then confirm the project configuration.
Share the drawings, quantities, preferred finish and control requirements. Our team can check the selected Bulkhead model against the application.
Discuss a project
