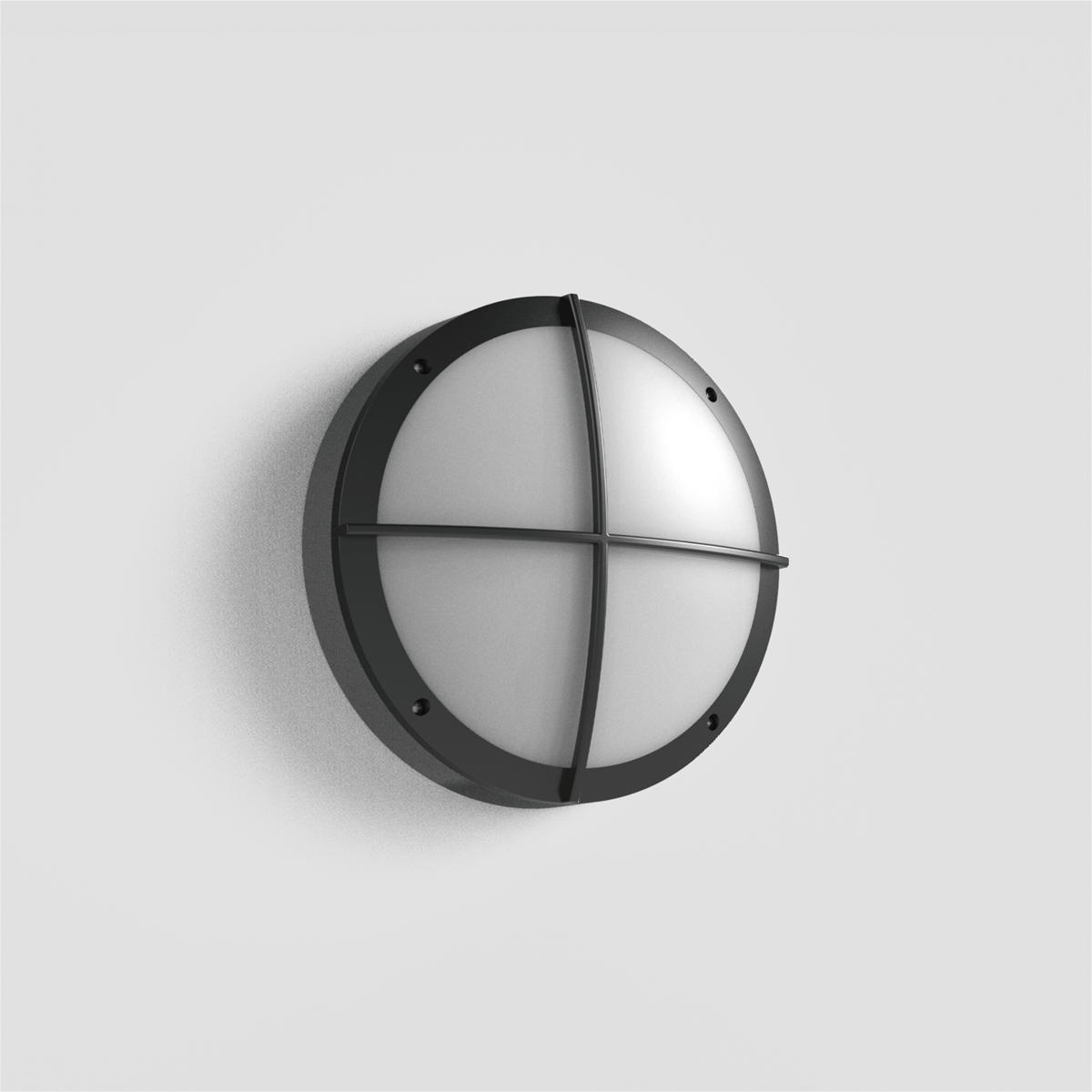

Cross guard

20W

Choose the face design for the project. Power, lumen output, protection rating and control options remain shared across the family.

Model: BH03
Output: 1600 lm

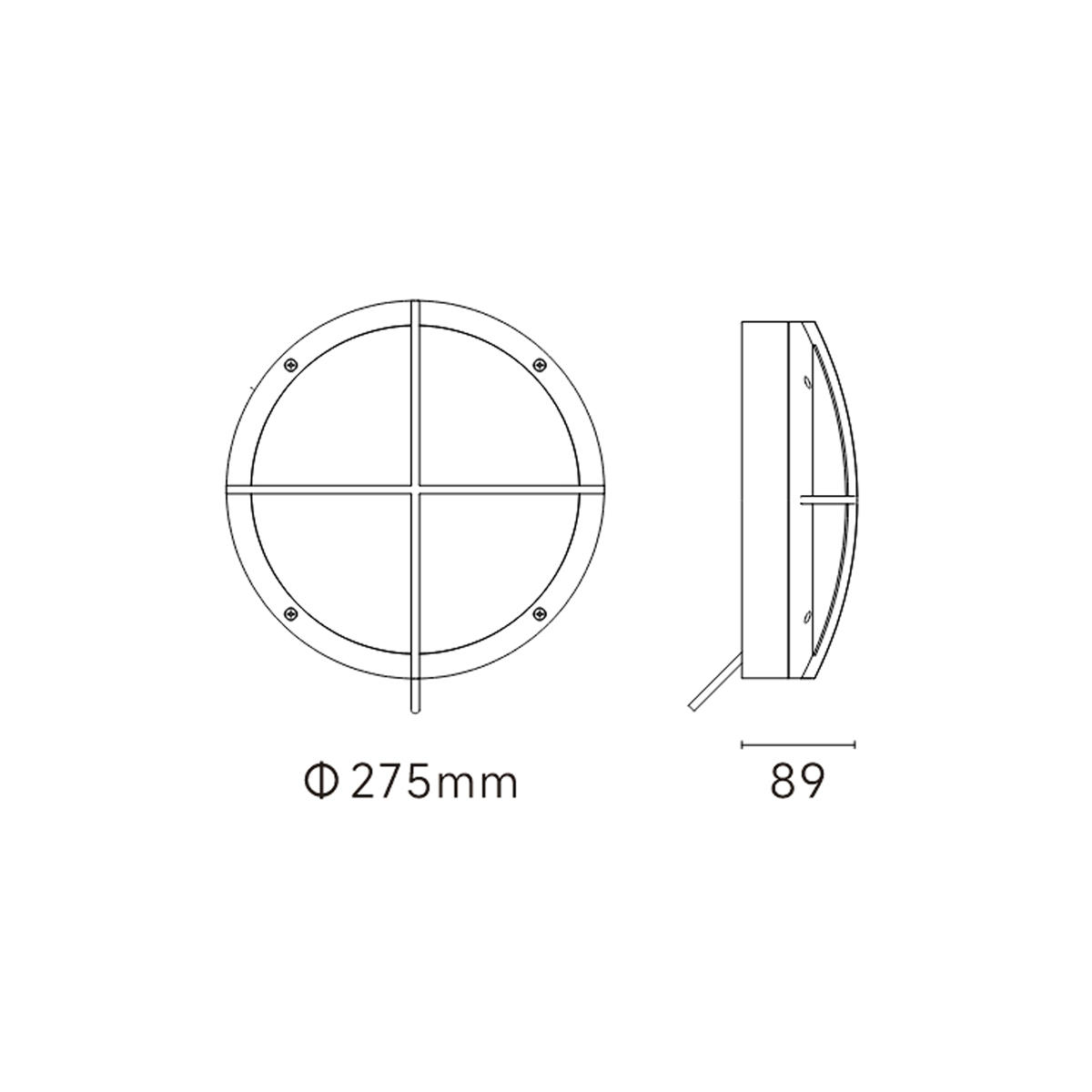

Dimension: D275 x H89 mm
Protection: IP65 / IK08

Ask about BH03

Shared technical data

Specified as a family.

All three face designs use the same electrical and performance platform. Final colour, control method and configuration are confirmed with the selected model at quotation.

Ask about this family

Installation: Outdoor wall or surface mounting
Input voltage: AC 220-240V
Light source: SMD LED
Colour temperature: 3000K / 4000K / 6000K
Colour rendering: CRI 80
Optic: Flood distribution
Housing: Aluminium
Finish options: White / Black / Grey
Control options: DALI / DMX
Lifetime / warranty: 50,000 h / 5 years

Application

A clear architectural presence, by day and after dark.

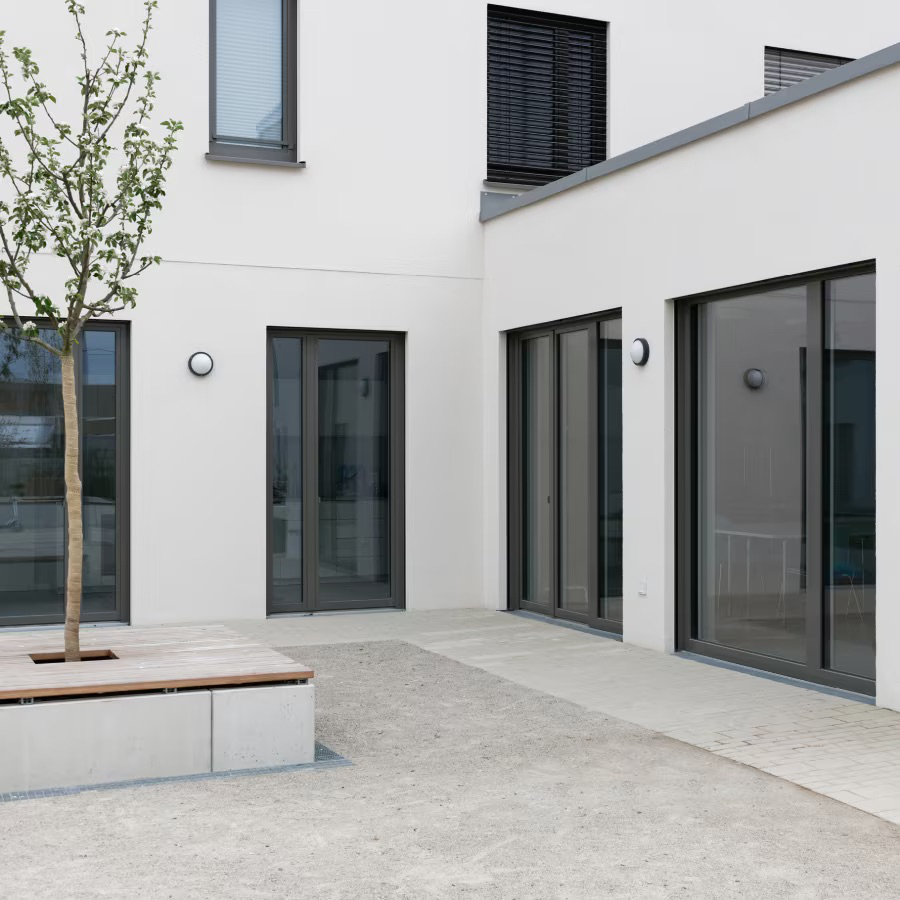

BH01 bulkheads used for covered circulation lighting — BH01 / Covered circulation

BH02 bulkheads used on an exterior residential facade — BH02 / Facade and entrance

BH03 bulkheads used beside an apartment entrance — BH03 / Residential exterior

Project support

Shortlist the face design, then confirm the project configuration.

Share the drawings, quantities, preferred finish and control requirements. Our team can check the selected Bulkhead model against the application.
