Current model

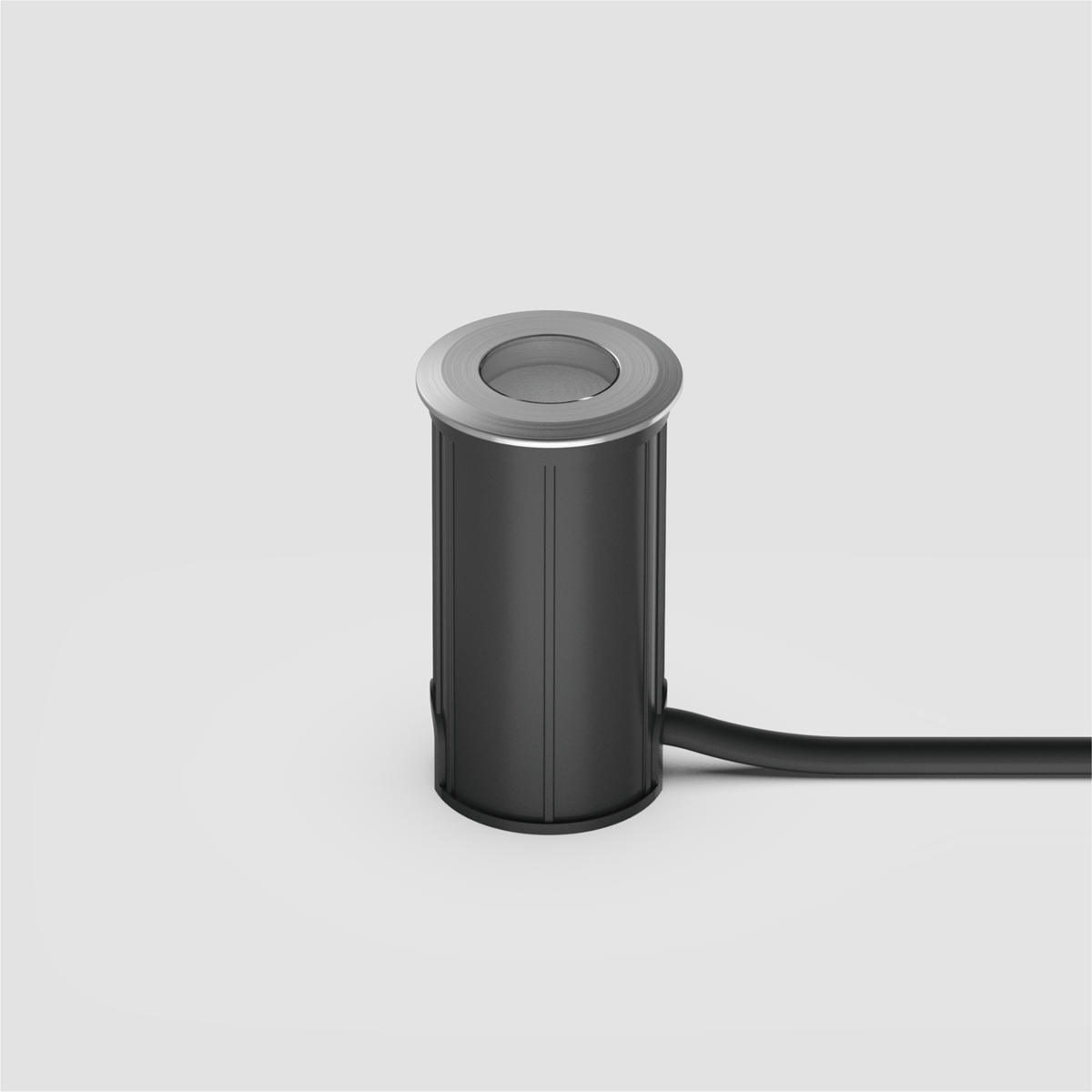

Recessed uplight
Select the body size and light distribution for the application. Final finish, wiring, control and installation details are confirmed against the project conditions.
- Model
- IG01E
- Power / output
- 1W / 60 lm

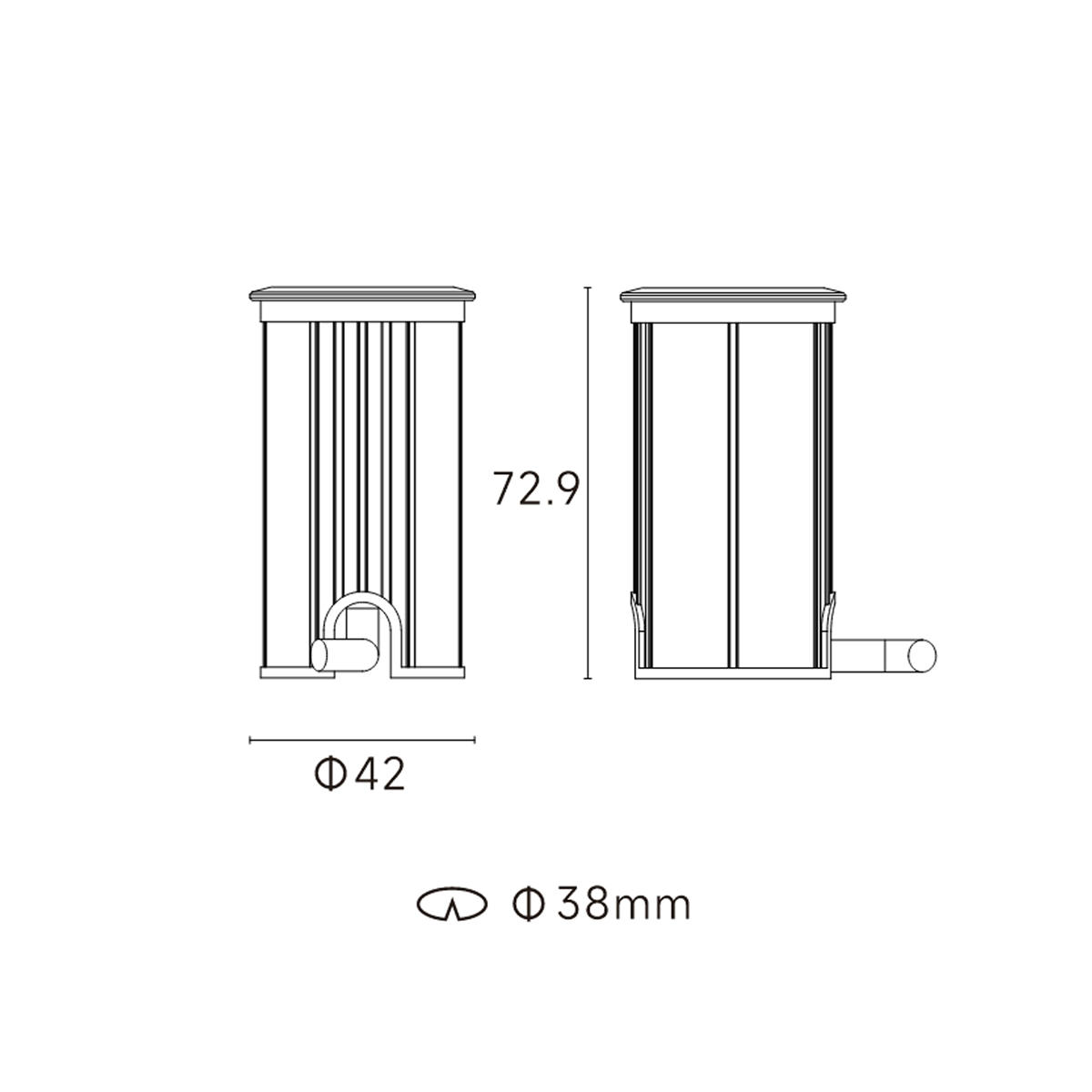

- Overall size
- D42 x H72.9 mm
- Cut-out
- D38 mm
- Optic
- 15° / 30° / 45° / 60° / 120°
- Protection
- IP67 / IK08
Published technical data
A compact 24V outdoor platform.
Model-specific dimensions, output, optic and impact rating are shown above. The shared data below is carried forward from the current published specification.
- Installation
- Outdoor recessed
- Input voltage
- DC24V
- Light source
- SMD LED
- Colour temperature
- 3000K / 4000K / 6000K / RGB
- Colour rendering
- CRI 80
- Lifetime / warranty
- 50,000 hours / 5 years
Application

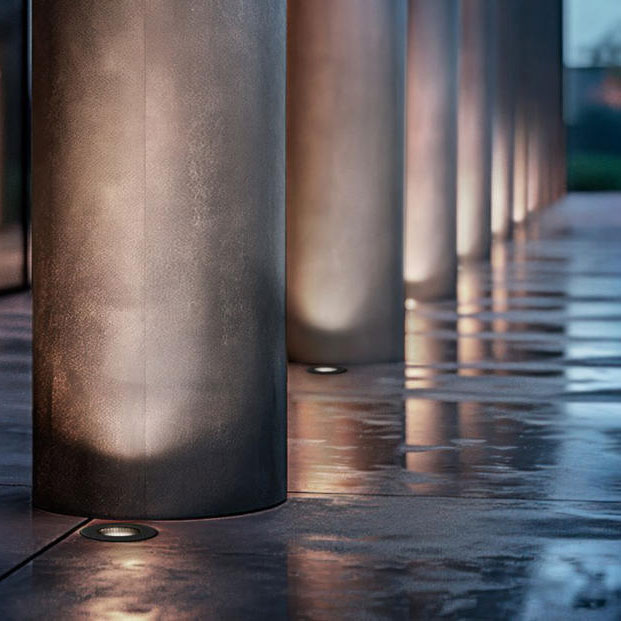

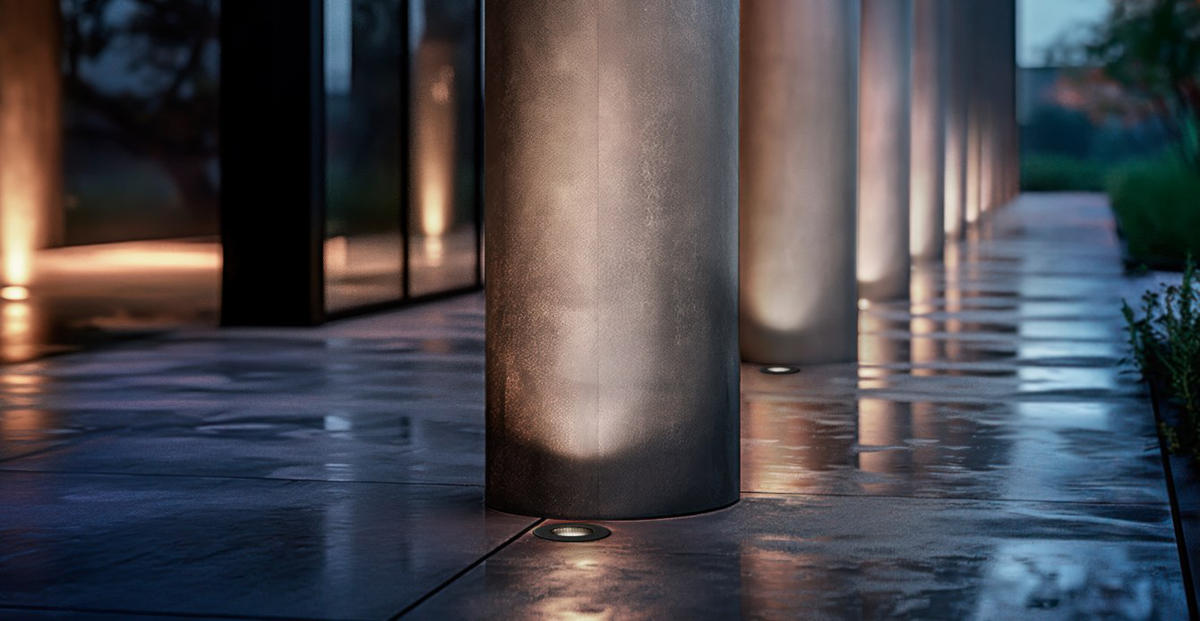

Mark the route or lift the architecture.
Use shielded lateral light for low-level guidance, or a recessed upward beam for planting and vertical surfaces.
Project support
Choose the effect and body size, then review the installation.
Share the landscape plan, mounting surface, drainage conditions, quantities and preferred light effect. Our team can confirm the selected IG01 model against the project.
Discuss a project
