Current model

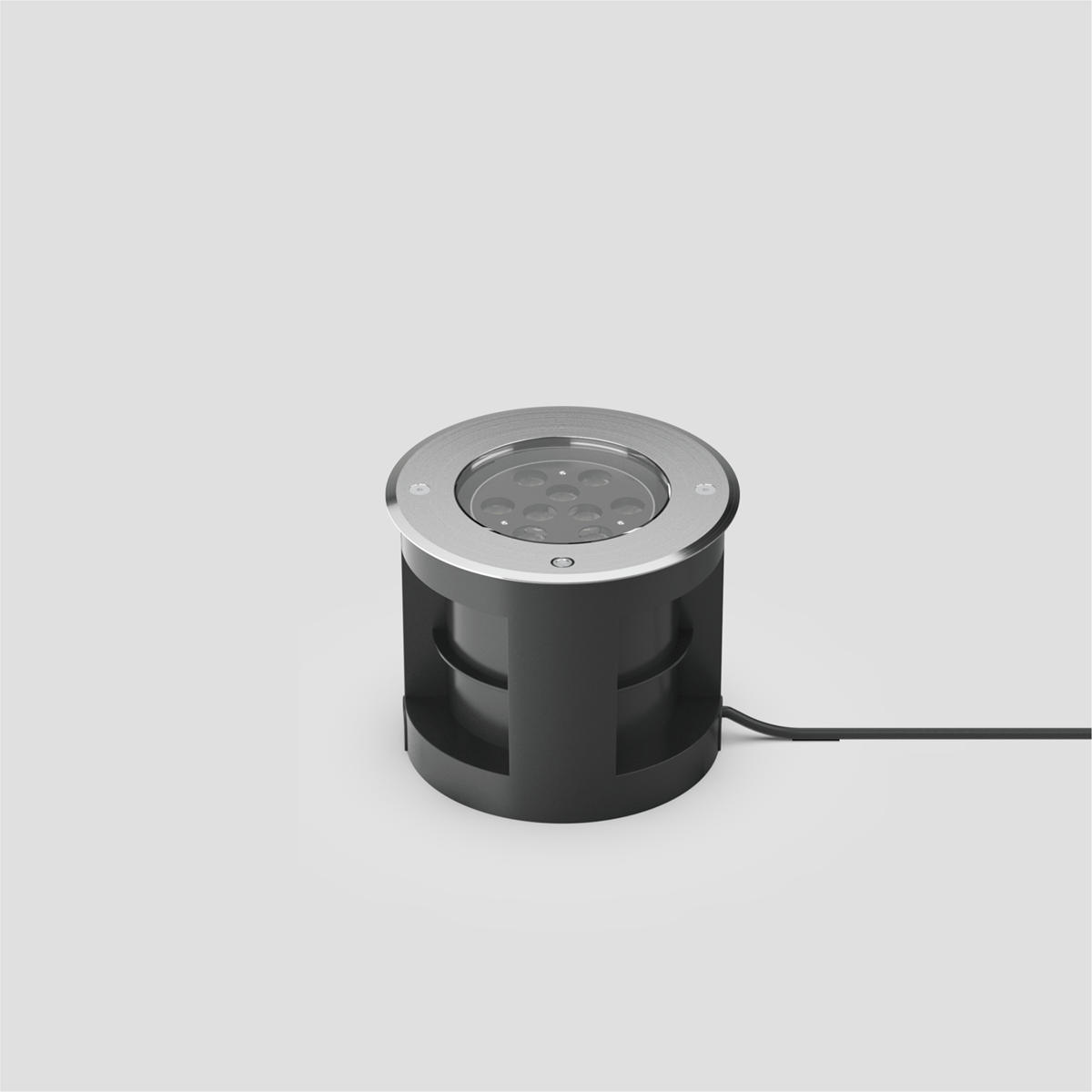

IG02-9W
Select the body size and output for the mounting distance, target surface and required beam.
- Model
- IG02-9W
- Power / output
- 9W / 540 lm
- Overall size
- D180 x H148 mm
- Cut-out
- D168 mm
- Optic
- 15° / 30° / 45° / 60° / 120°
- Protection
- IP67 / IK08
Published technical data
Five outputs on one adjustable platform.
Power, output, body size and cut-out change with the selected model. Shared data follows the current TDS.
- Installation
- Outdoor recessed
- Input voltage
- DC24V
- Light source
- SMD LED
- Colour temperature
- 3000K / 4000K / 6000K / RGB
- Colour rendering
- CRI 80
- Material
- Aluminium + stainless steel
- Control option
- DMX
- Accessory
- Honeycomb
- Lifetime / warranty
- 50,000 hours / 5 years
Application
Focus light where the landscape needs it.

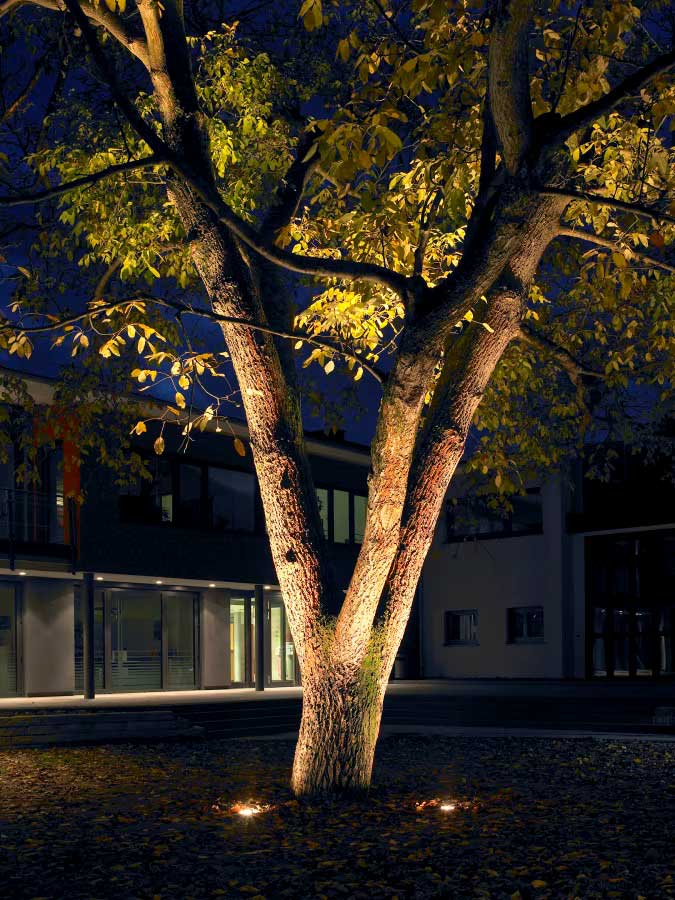

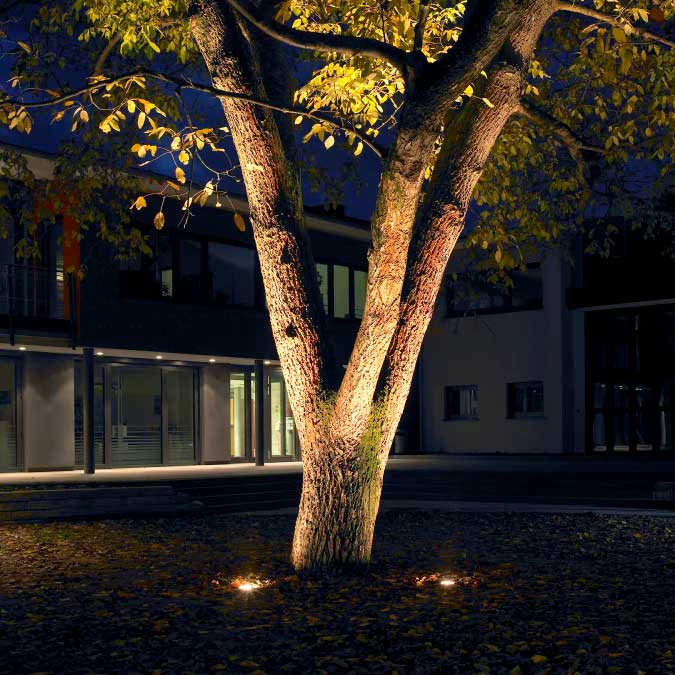

These images show the IG02 family in landscape applications. Final output and spacing are confirmed for each project.
Project support
Confirm the body size, beam and installation detail.
Share the landscape plan, target height, mounting position, quantities and control requirements. Our project team can check the selected IG02 model against the intended layout.
Discuss a project
