Current model
IG03-18W
Select the length and output for the wall height, mounting line and required lighting effect.
- Model
- IG03-18W
- Power / output
- 18W / 1080 lm

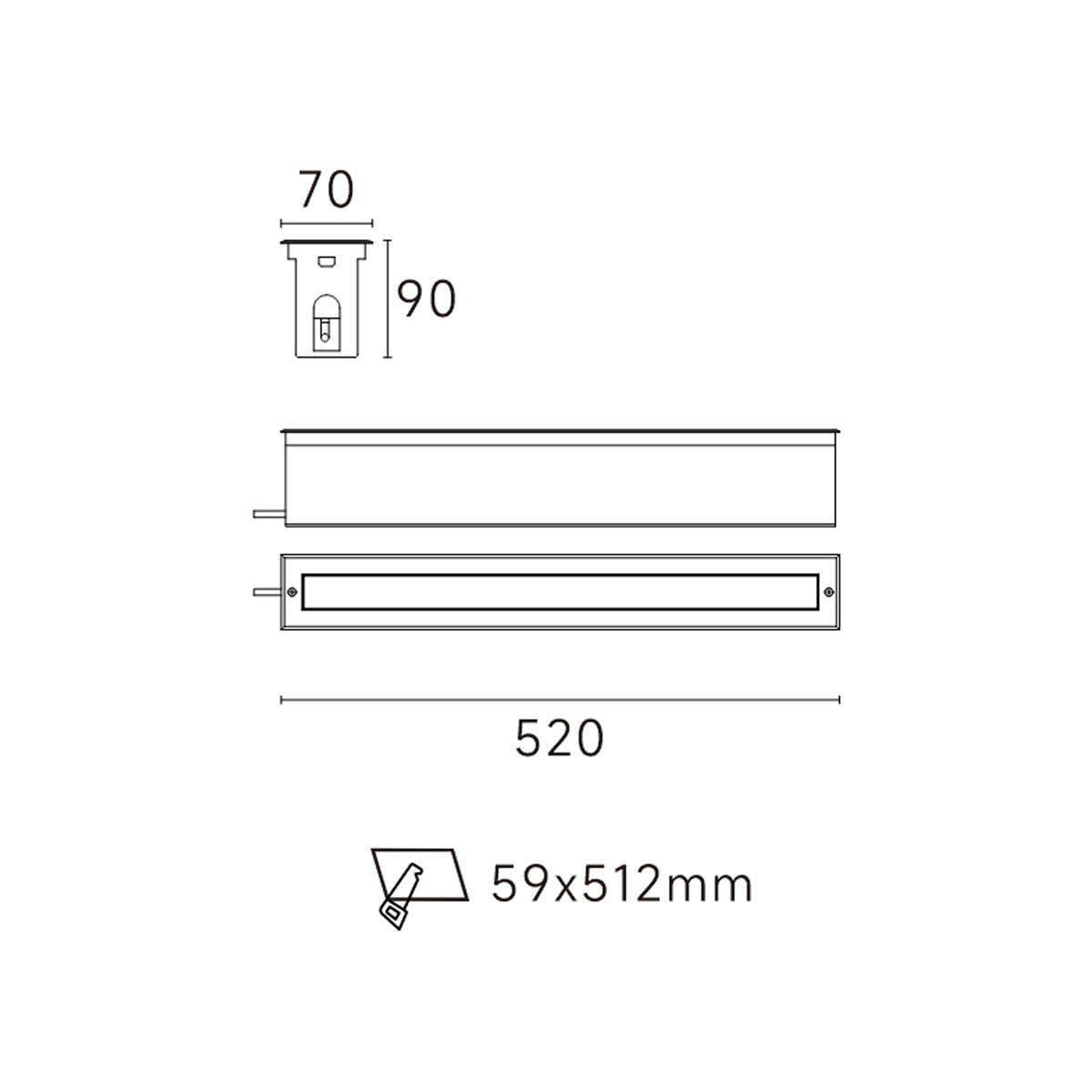

- Overall size
- L520 x W70 x H90 mm
- Cut-out
- L512 x W60 mm
- Protection
- IP67 / IK08
- Input
- DC24V
Published technical data
Three lengths on one recessed platform.
Power, output, overall length and cut-out change with the selected model. The shared data below follows the current published TDS.
- Installation
- Outdoor recessed
- Input voltage
- DC24V
- Light source
- SMD LED
- Colour temperature
- 3000K / 4000K / 6000K / RGB
- Colour rendering
- CRI 80
- Material
- Aluminium + stainless steel
- Control option
- DMX
- Accessory
- Honeycomb
- Lifetime / warranty
- 50,000 hours / 5 years

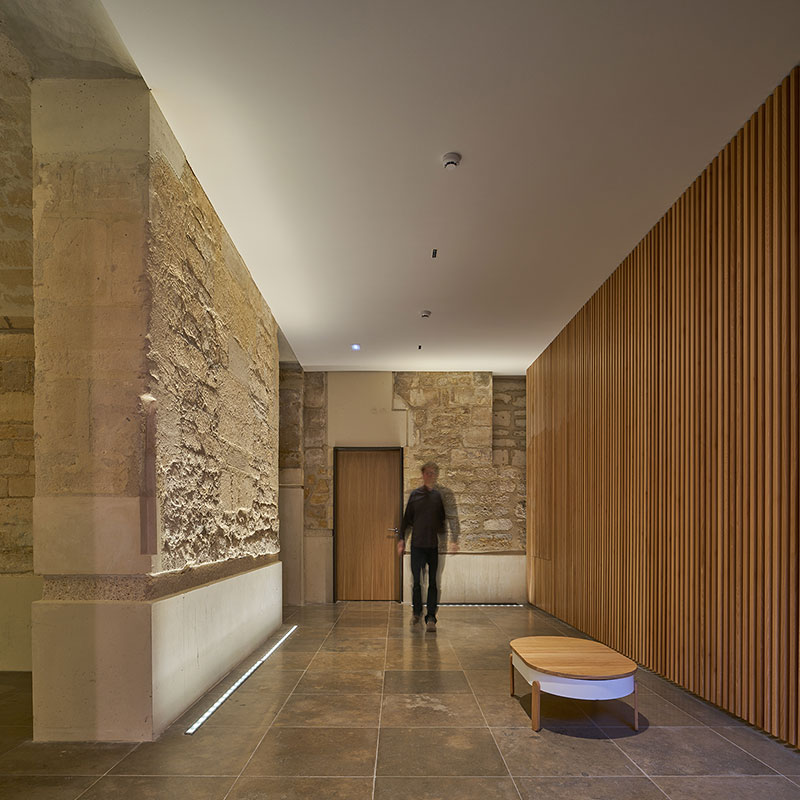

Application
Build a continuous rhythm of light.
The three verified application images show the family used at different wall lengths and architectural scales.
Project support
Confirm the length, spacing and installation detail.
Share the elevations, mounting line, drainage condition, quantities and control requirements. Our project team can check the selected IG03 model against the intended layout.
Discuss a project
