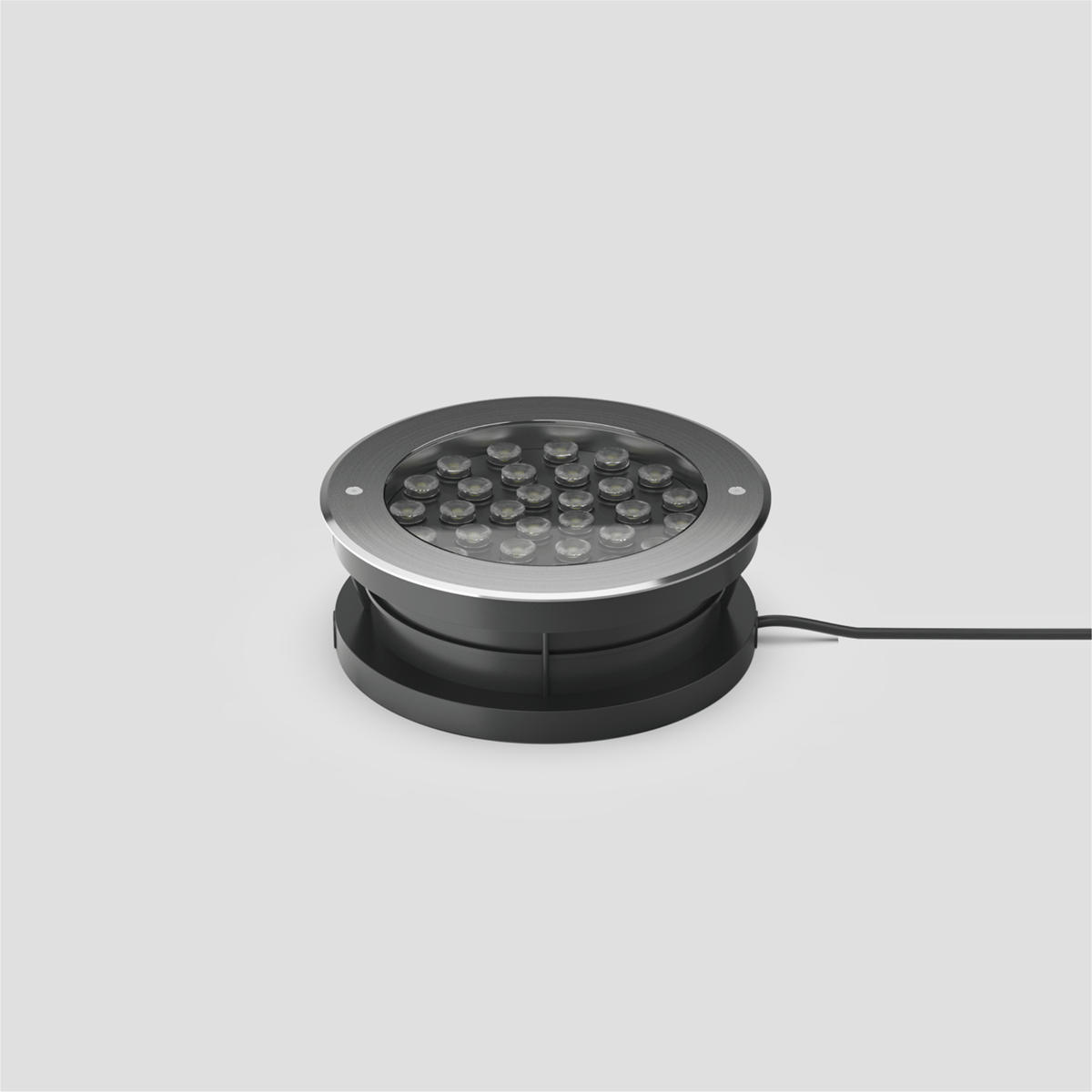

Current model
UW01-36W
Select the diameter and output to suit the pool structure, water depth and required visual effect.
- Model
- UW01-36W
- Power / output
- 36W / 1620 lm

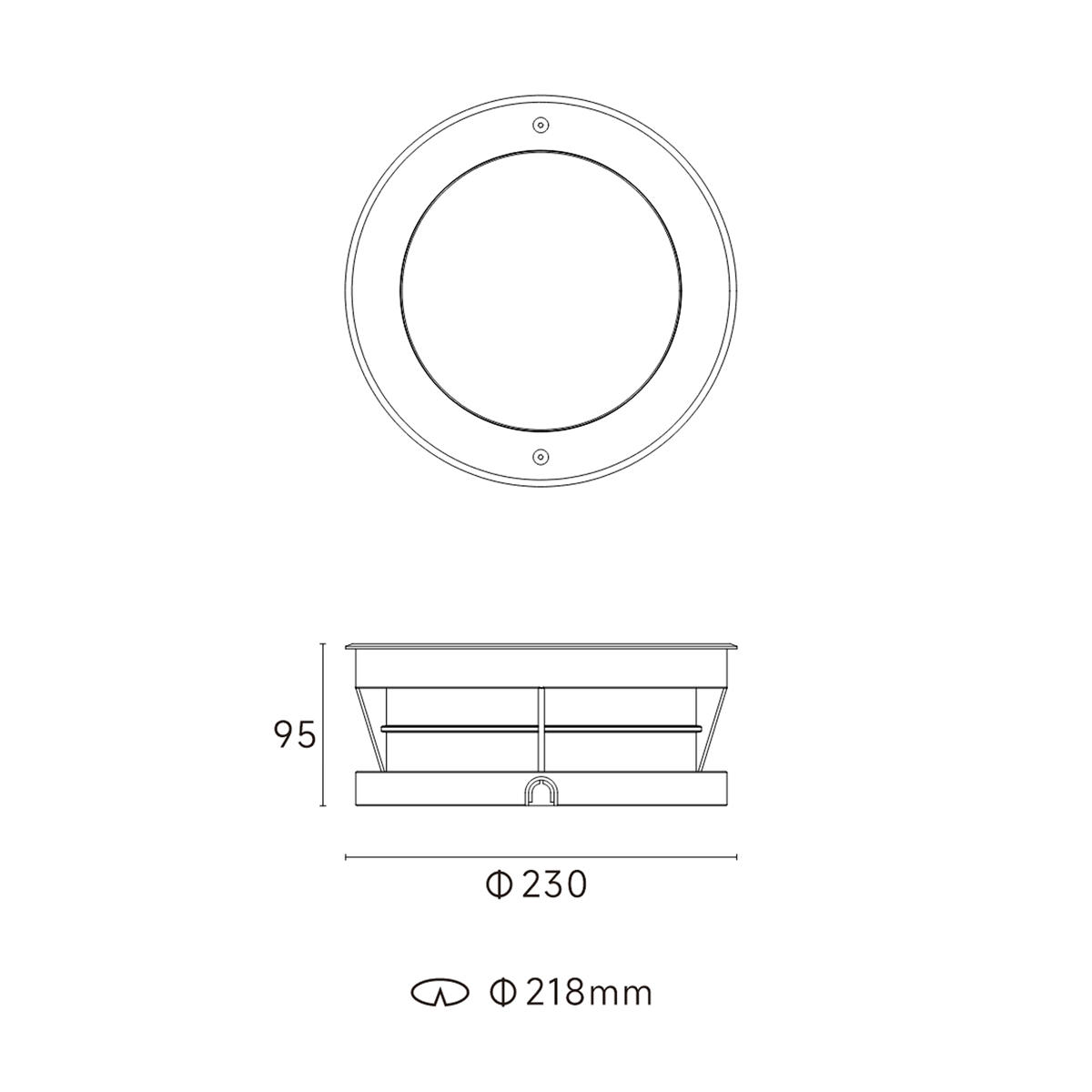

- Overall size
- D230 x H95 mm
- Cut-out
- D218 mm
- Optics
- 15° / 30° / 45° / 60°
- Protection
- IP68 / IK08
Published technical data
One platform for water, light and control.
The UW01 range shares a recessed low-voltage platform. Diameter, output and cut-out change with the selected model.
- Installation
- Underwater recessed
- Input voltage
- DC24V
- Light source
- SMD LED
- Colour temperature
- 3000K / 4000K / 6000K / RGB
- Colour rendering
- CRI 80
- Material
- Aluminium + stainless steel
- Control
- DMX
- Lifetime / warranty
- 50,000 hours / 5 years

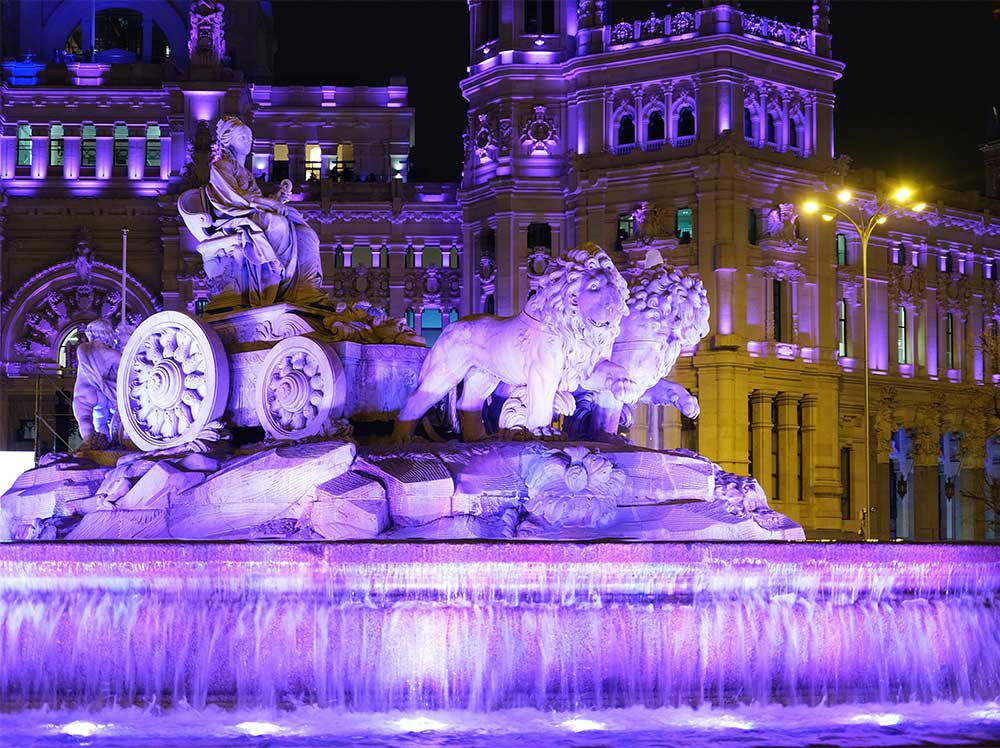

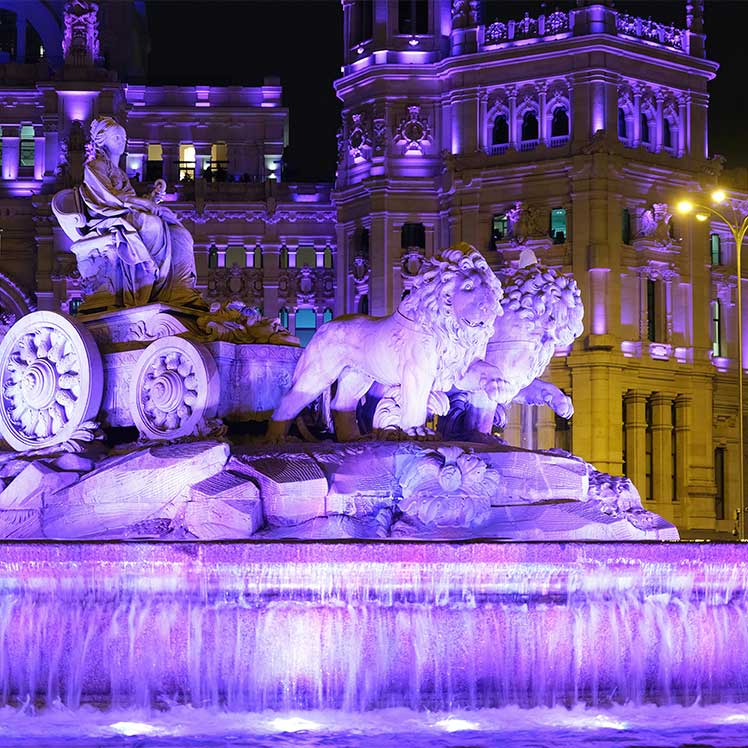

Application
Build light into the pool architecture.
Recessed installation keeps the luminaire integrated while colour and beam choice shape the water after dark.
Project support
Confirm the output, installation and control scene.
Share the water-feature drawings, installation detail, water depth, quantities and control requirements. Our project team can check the selected UW01 model against the installation.
