Current model

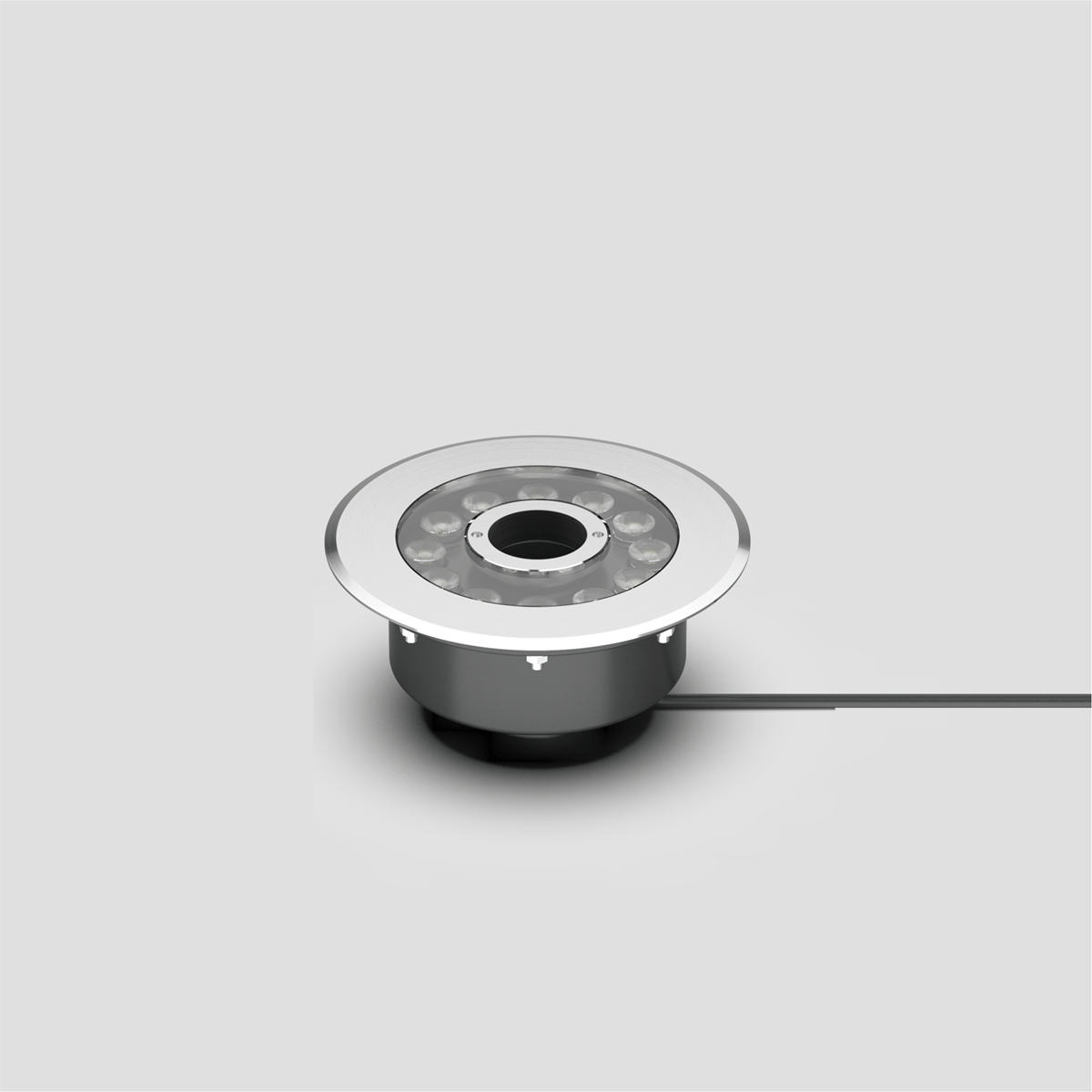

UW02-12W
Select the ring size and output to suit the fountain nozzle, water feature and required visual effect.
- Model
- UW02-12W
- Power / output
- 12W / 360 lm

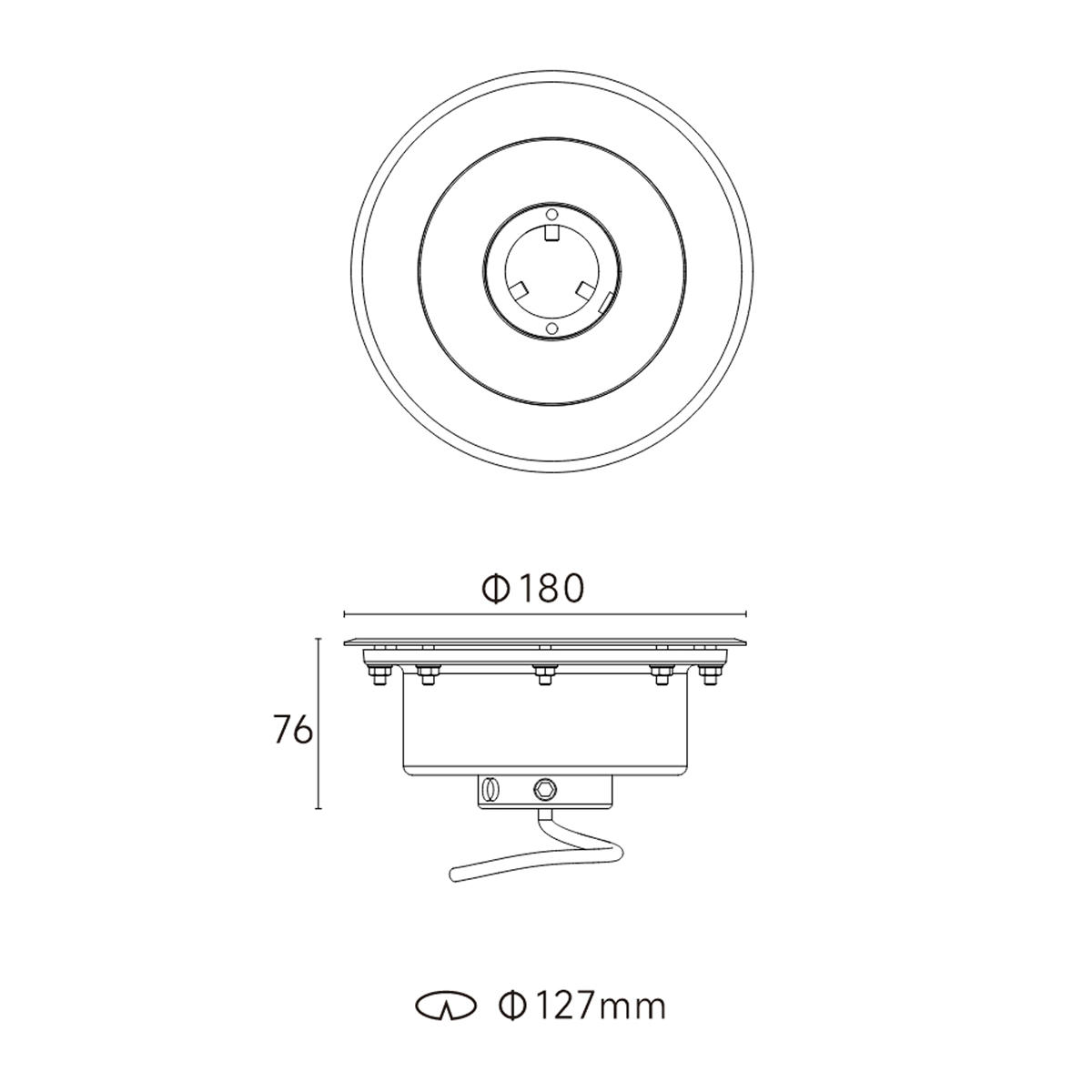

- Overall size
- D180 x H76 mm
- Nozzle opening
- D127 mm
- Optics
- 15° / 30° / 45° / 60°
- Protection
- IP68 / IK08
Published technical data
One platform for water, light and control.
The UW02 range shares its material, low-voltage platform and optical choices. Size, output and nozzle opening change with the selected model.
- Installation
- Underwater recessed fountain
- Input voltage
- DC24V
- Light source
- SMD LED
- Colour temperature
- 3000K / 4000K / 6000K / RGB
- Colour rendering
- CRI 80
- Material
- Aluminium + stainless steel
- Control
- DMX
- Lifetime / warranty
- 50,000 hours / 5 years
Application
Shape the rhythm after dark.

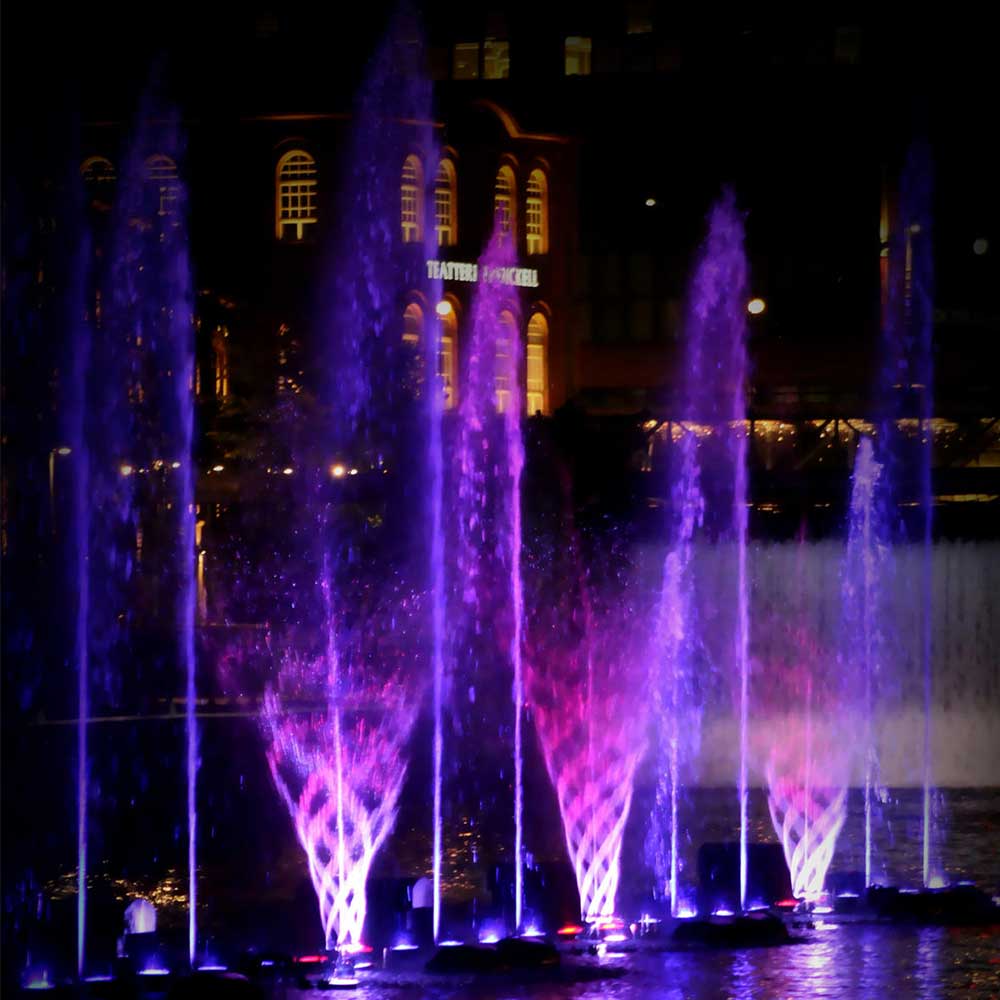

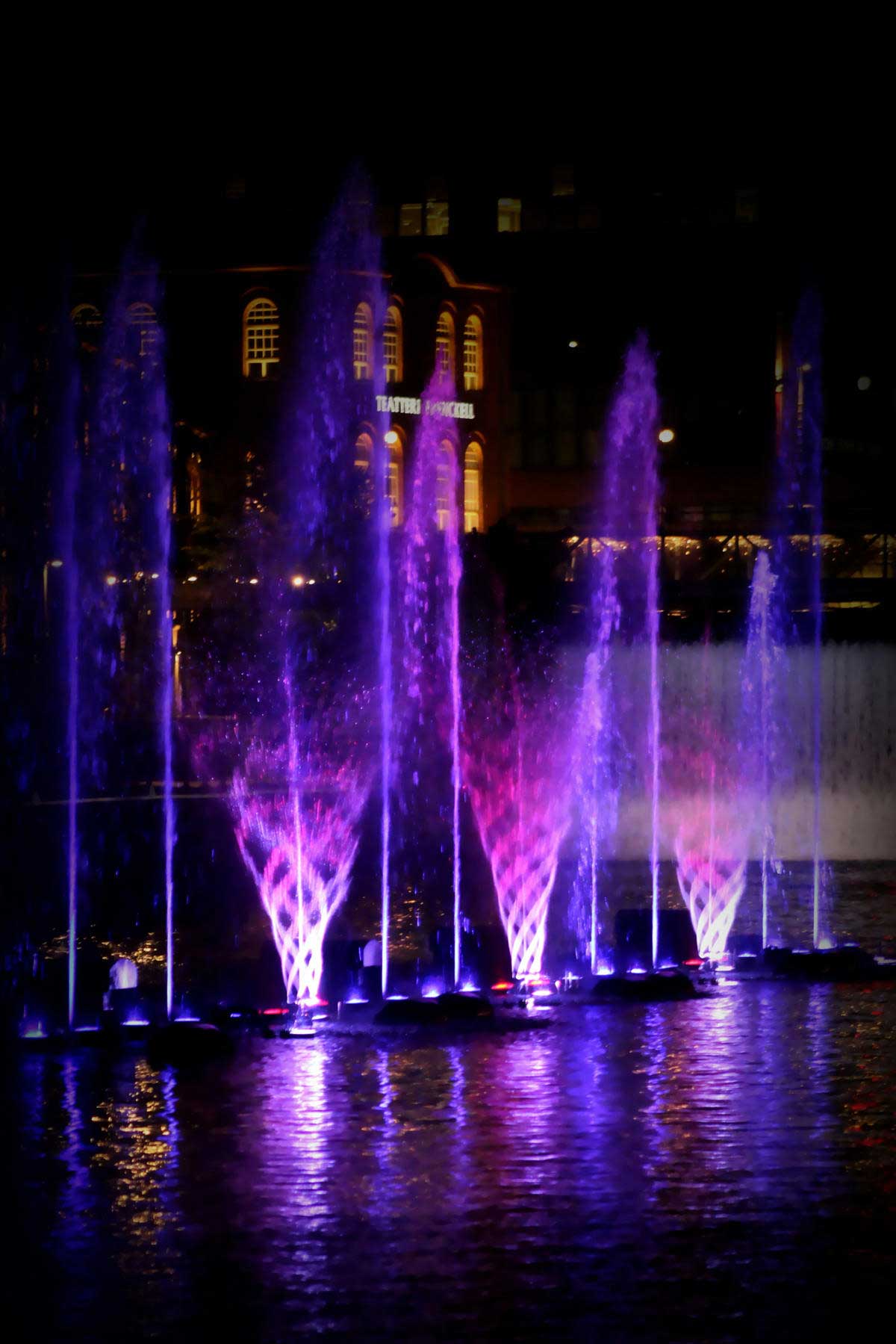

Linear jets, rain curtains and large fountain basins show how scale and spacing influence the final composition.
Project support
Confirm the nozzle, output and control scene.
Share the fountain drawings, nozzle dimensions, water depth, quantities and control requirements. Our project team can check the selected UW02 model against the installation.
