Current model

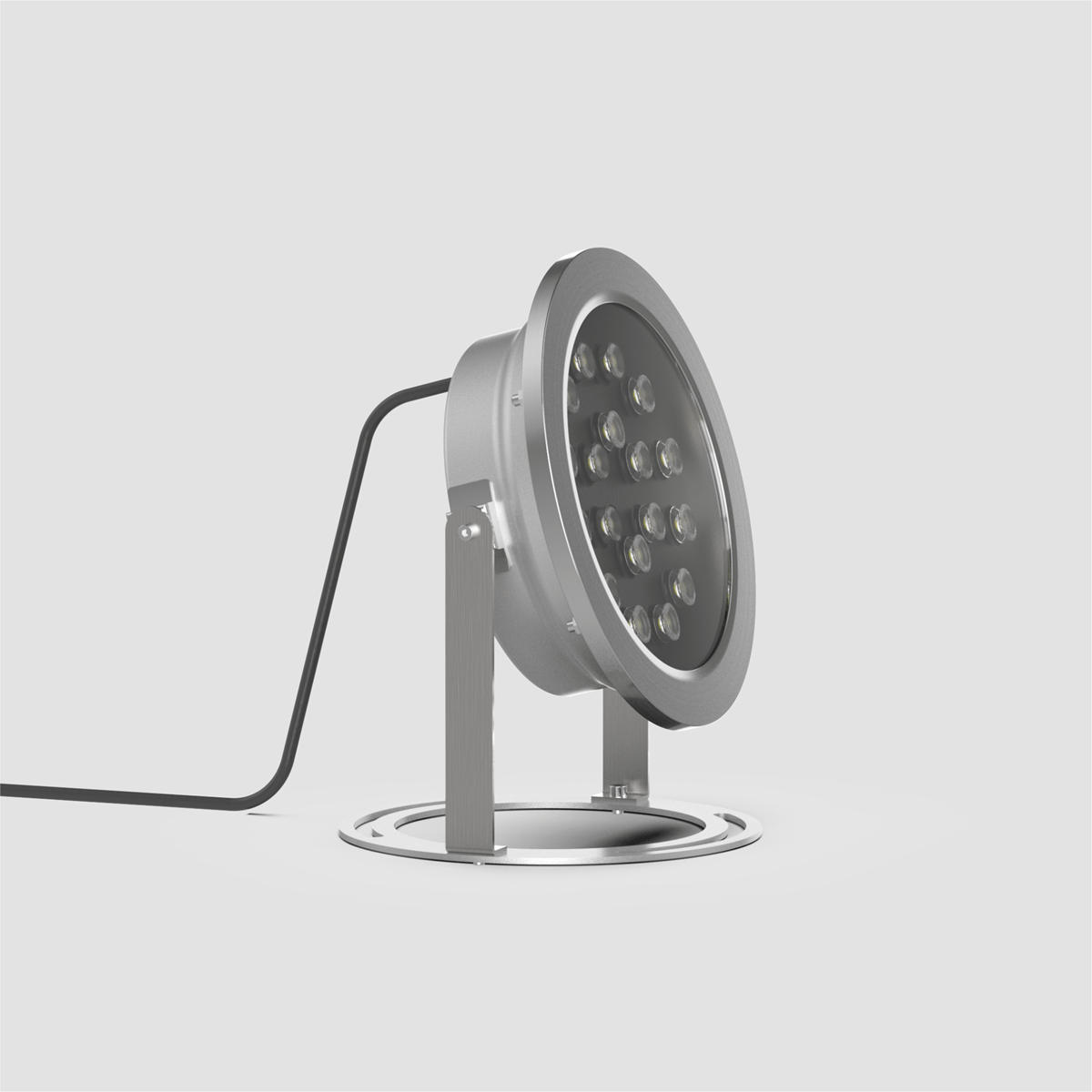

UW03-18W
Select the body size and output for the water depth, aiming direction and required visual effect.
- Model
- UW03-18W
- Power / output
- 18W / 810 lm

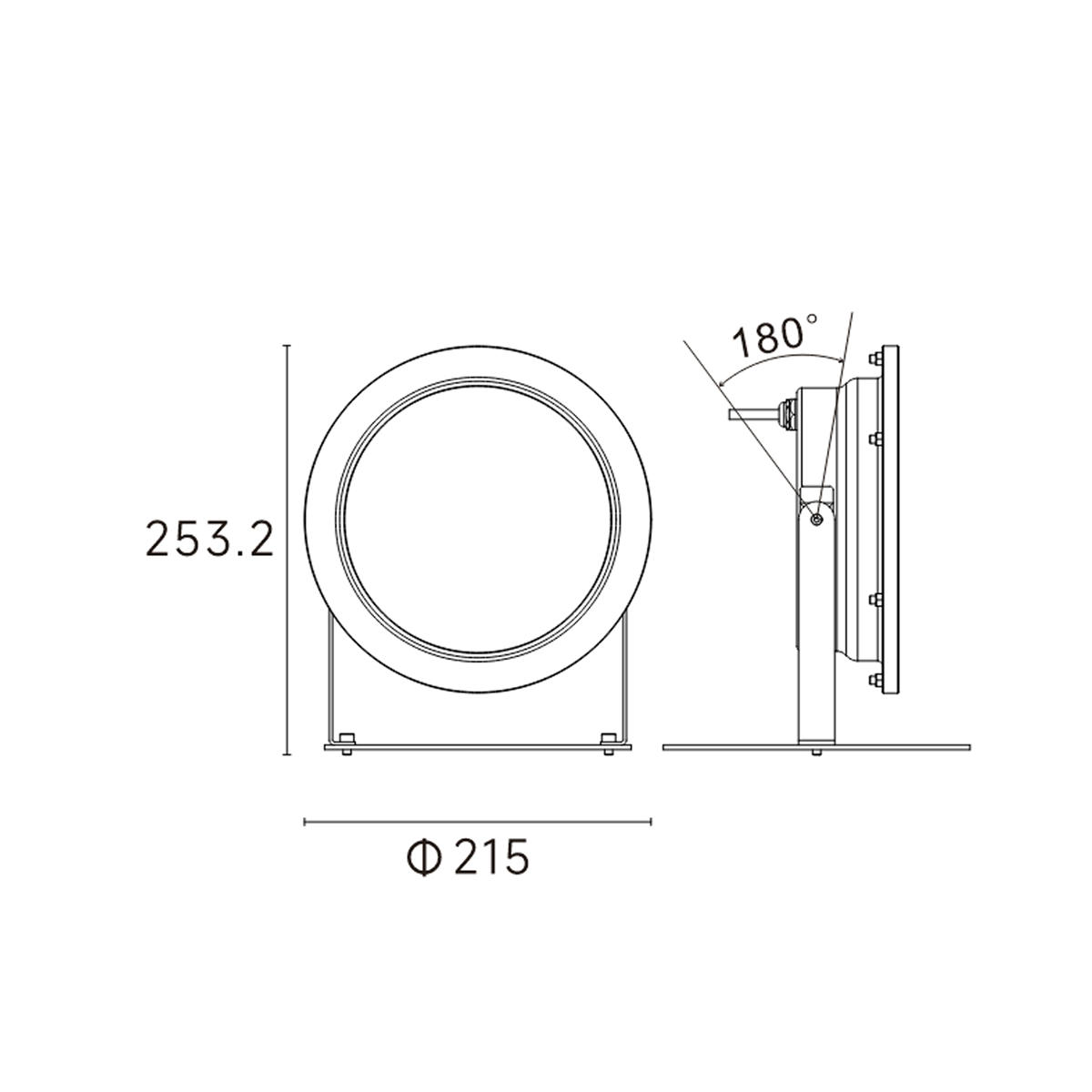

- Overall size
- D215 x H250 mm
- Mounting cut-out
- Not required
- Optics
- 15° / 30° / 45° / 60°
- Protection
- IP68 / IK08
Published technical data
One platform for water, light and control.
The UW03 range shares an adjustable surface-mounted platform. Body size and output change with the selected model.
- Installation
- Underwater surface mounted
- Input voltage
- DC24V
- Light source
- SMD LED
- Colour temperature
- 3000K / 4000K / 6000K / RGB
- Colour rendering
- CRI 80
- Material
- Aluminium + stainless steel
- Control
- DMX
- Lifetime / warranty
- 50,000 hours / 5 years

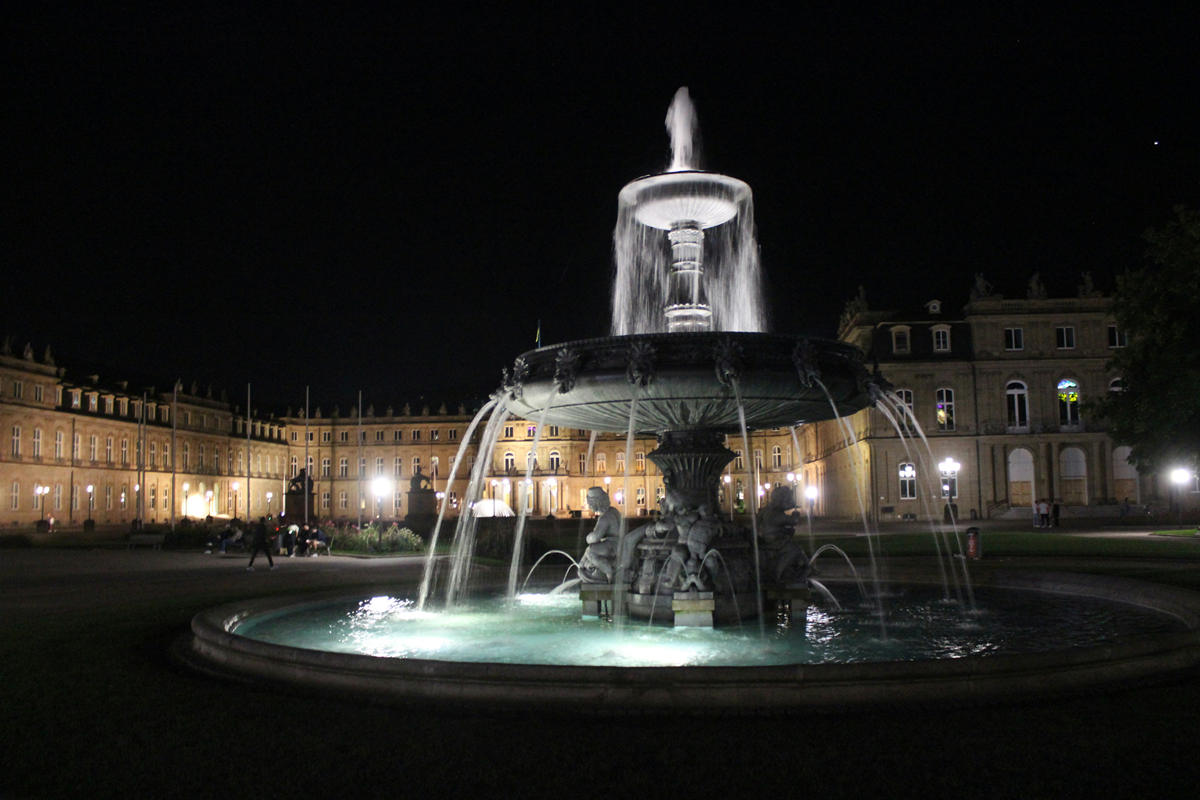

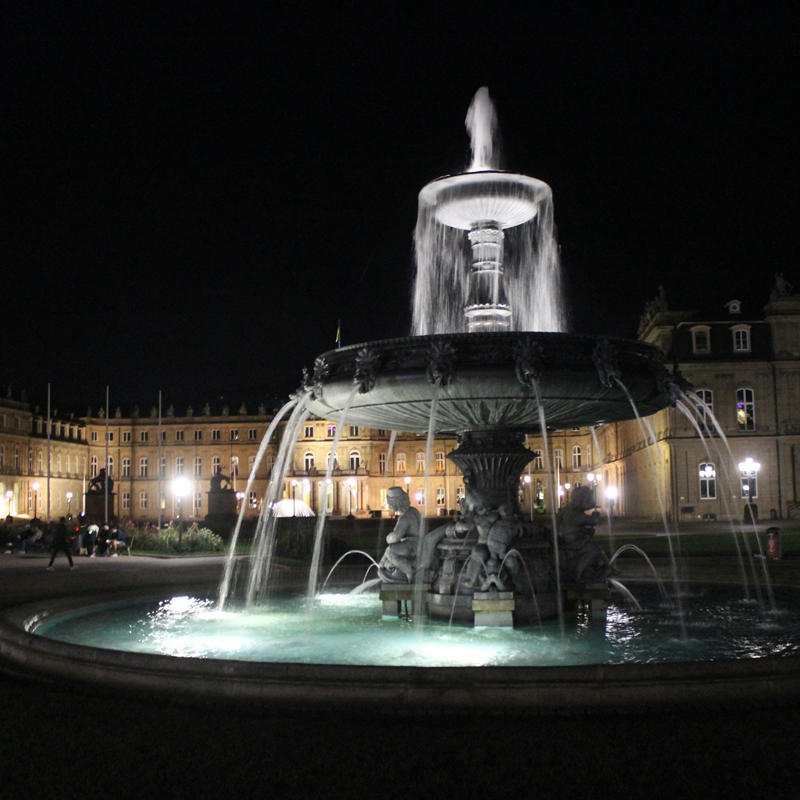

Application
Direct light across moving water.
Pools, fountains and architectural water features show how aiming and spacing shape the final composition.
Project support
Confirm the output, installation and control scene.
Share the water-feature drawings, installation detail, water depth, quantities and control requirements. Our project team can check the selected UW03 model against the installation.
