Roadlux3-150W

The details below reflect the product information currently published for this model. Final availability and project configuration are confirmed at quotation.

Power: 150W
Published output: 22500
Protection: IP65
Overall size: L563xW250xH85

Ask about Roadlux3-150W

Published technical data

Specifications for Roadlux3-150W.

Only populated fields from the current product record are shown. Confirm final options and availability with the project team.

Installation: Outdoor Pole Mounted
Type: Street Light
Optic: Type II-M 70°×150°
Input voltage: AC220-240V
System power: 150W
System luminous flux: 22500
Overall size: L563xW250xH85
Light source: SMD LED
Colour temperature: 3000K/4000K/6000K
Colour rendering: 80
Lifetime / warranty: 50000 hrs/5 years
Impact resistance: IK09
Ingress protection: IP65
Control options: Microwave/PIR/Motion
Accessories: Mounted Arm/Pole

Application

A clear rhythm along the route.

Use the published application image to review the luminaire in context. Final spacing, mounting and control details are confirmed for the project.

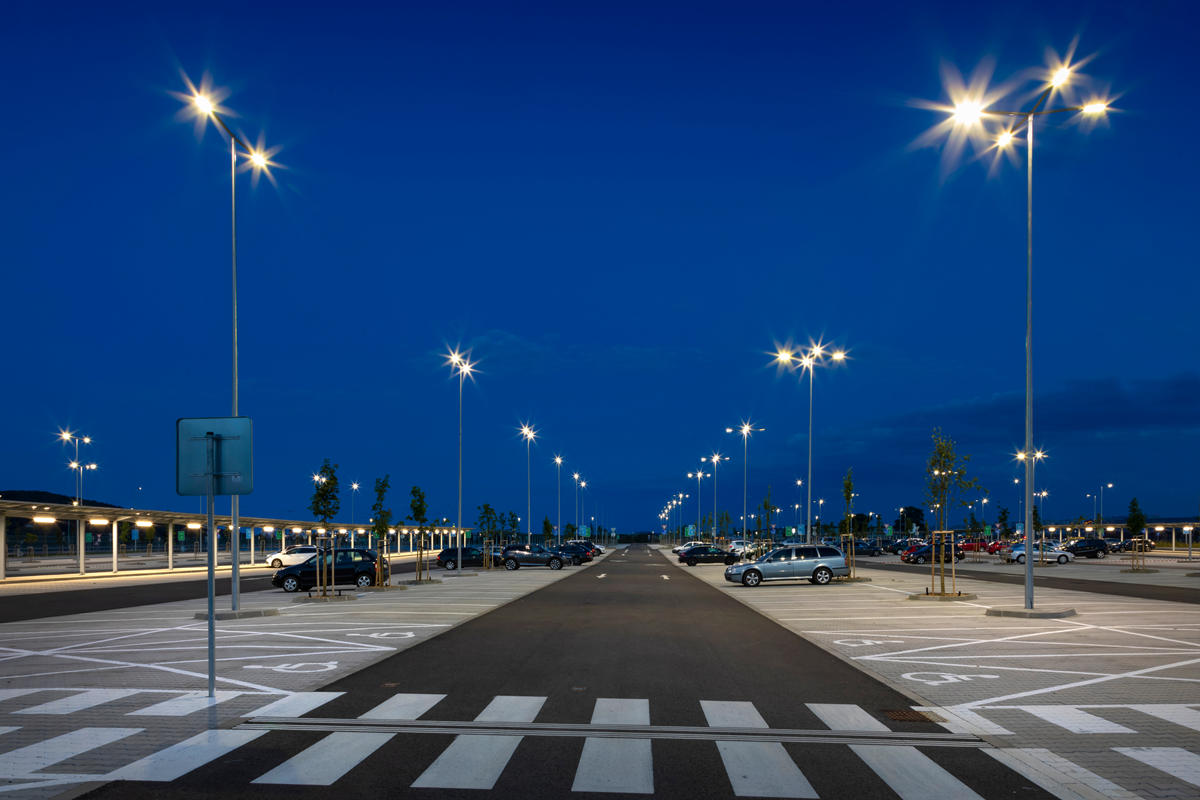

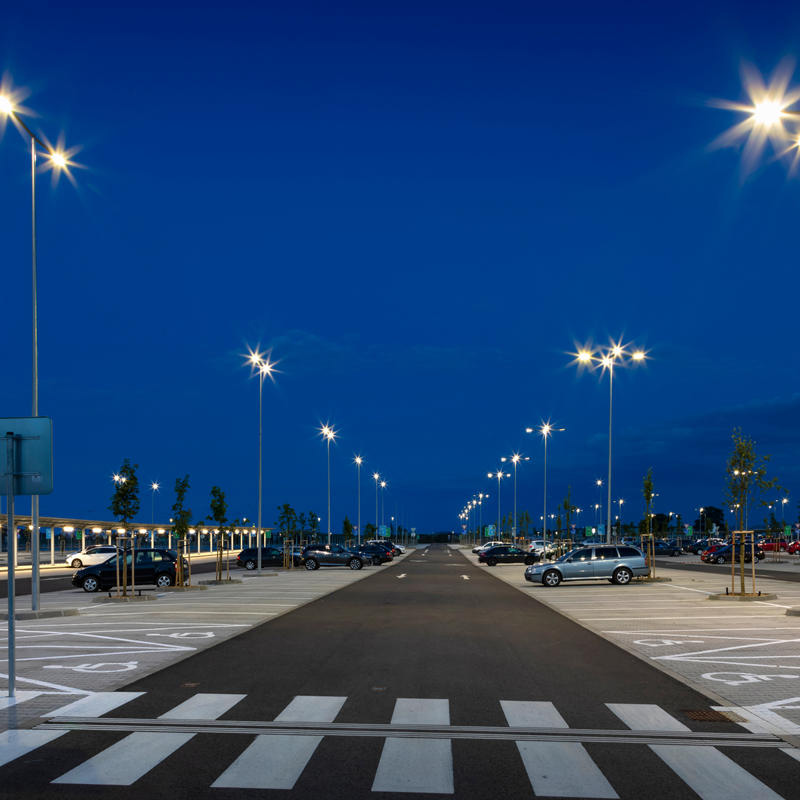

Roadlux3-150W Street Light application — Roadlux3-150W / Project context

Project support

Confirm the road layout, optic and pole interface.

Share the project location, drawings, quantities and performance requirements. Our team can confirm the available configuration for this range.

Discuss a project
