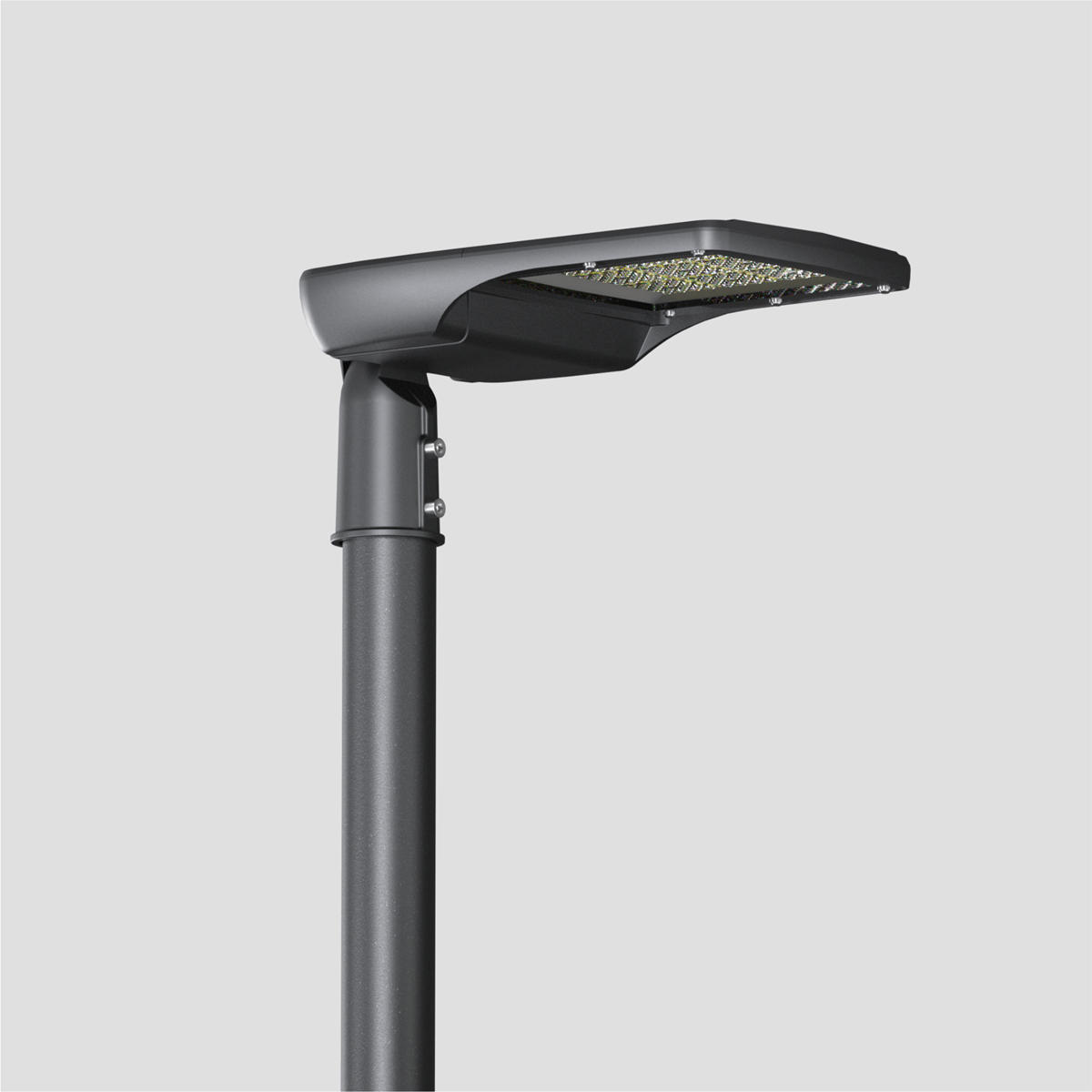

Shinelux02-100W

The details below reflect the product information currently published for this model. Final availability and project configuration are confirmed at quotation.

Power: 100W
Published output: 15000
Protection: IP65
Overall size: L615xW233xH100

Ask about Shinelux02-100W

Published technical data

Specifications for Shinelux02-100W.

Only populated fields from the current product record are shown. Confirm final options and availability with the project team.

Installation: Outdoor Pole Mounted
Type: Street Light
Optic: Type II-M 70°×150°
Input voltage: AC220-240V
System power: 100W
System luminous flux: 15000
Overall size: L615xW233xH100
Light source: SMD LED
Colour temperature: 3000K/4000K/6000K
Colour rendering: 80
Lifetime / warranty: 50000 hrs/5 years
Impact resistance: IK09
Ingress protection: IP65
Control options: Microwave/PIR/Motion
Accessories: Mounted Arm/Pole

Application

A clear rhythm along the route.

Use the published application image to review the luminaire in context. Final spacing, mounting and control details are confirmed for the project.

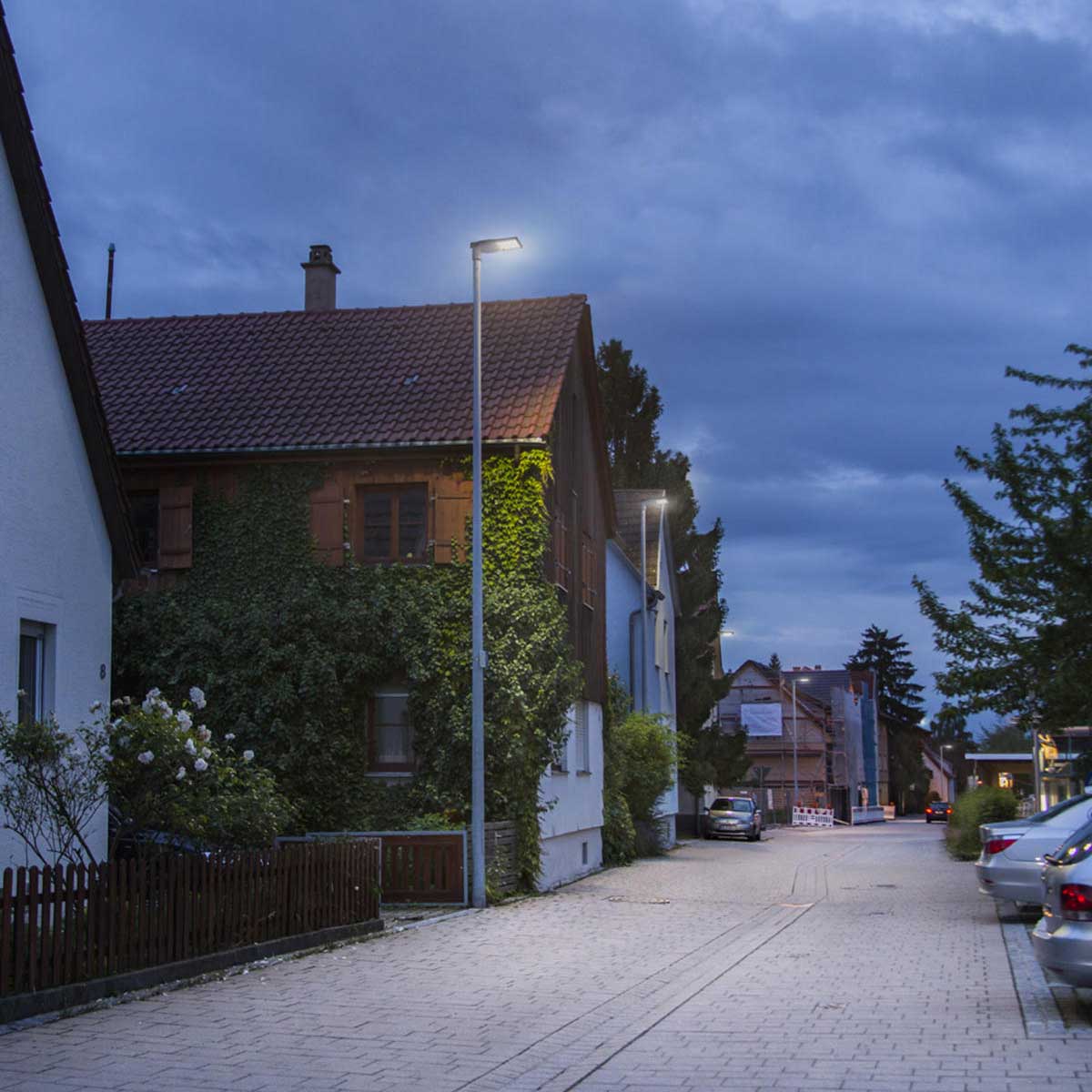

Shinelux02-100W Street Light application — Shinelux02-100W / Project context

Project support

Confirm the road layout, optic and pole interface.

Share the project location, drawings, quantities and performance requirements. Our team can confirm the available configuration for this range.

Discuss a project
