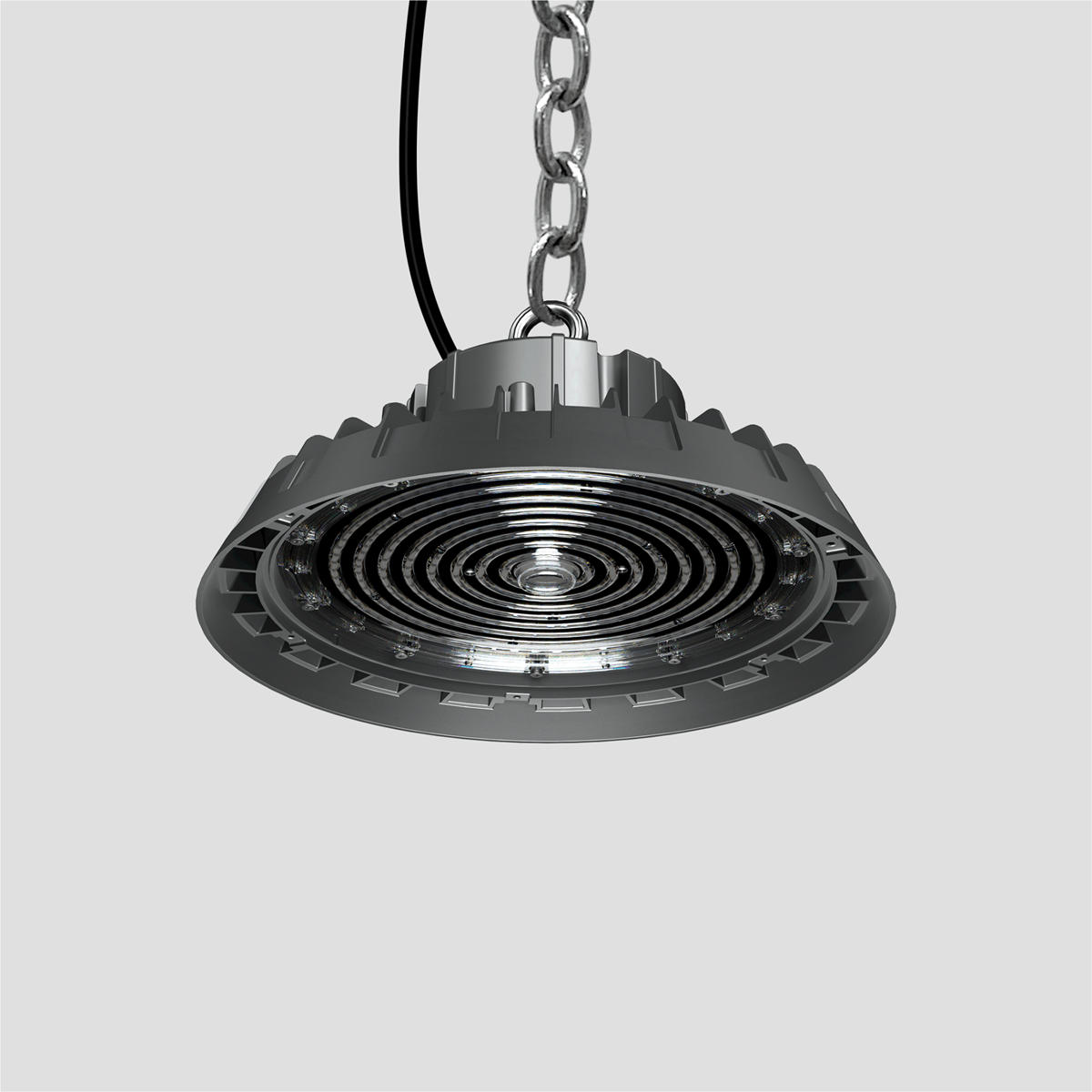

Dimlux3-200W

The details below reflect the product information currently published for this model. Final availability and project configuration are confirmed at quotation.

Power: 200W
Published output: 36000
Protection: IP65
Overall size: D339xH150

Ask about Dimlux3-200W

Published technical data

Specifications for Dimlux3-200W.

Only populated fields from the current product record are shown. Confirm final options and availability with the project team.

Installation: Outdoor Suspended
Type: High Bay Light
Optic: 90°/120°
Input voltage: AC220-240V
System power: 200W
System luminous flux: 36000
Overall size: D339xH150
Light source: SMD LED
Colour temperature: 3000K/4000K/6000K
Colour rendering: 80
Lifetime / warranty: 50000 hrs/5 years
Impact resistance: IK08
Ingress protection: IP65
Control options: Microwave/PIR/Motion
Accessories: Suspension Chain

Application

High-output light for large spaces.

Use the published application image to review the luminaire in context. Final mounting height, spacing and controls are confirmed for the project.

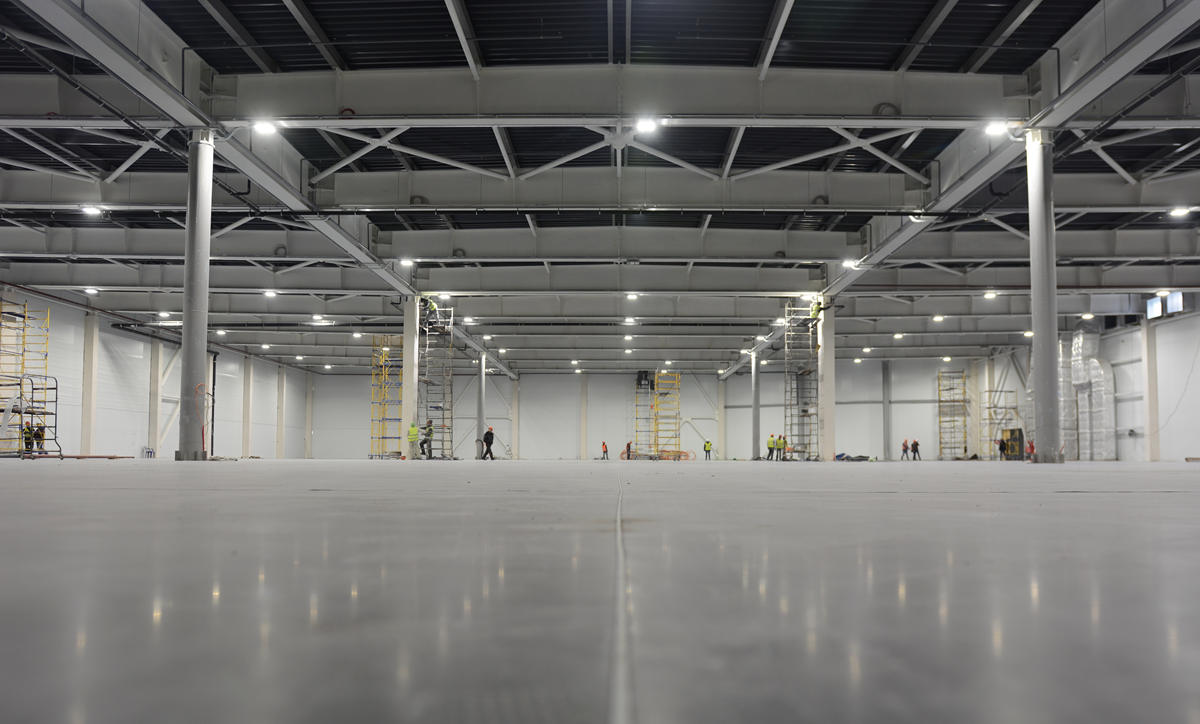

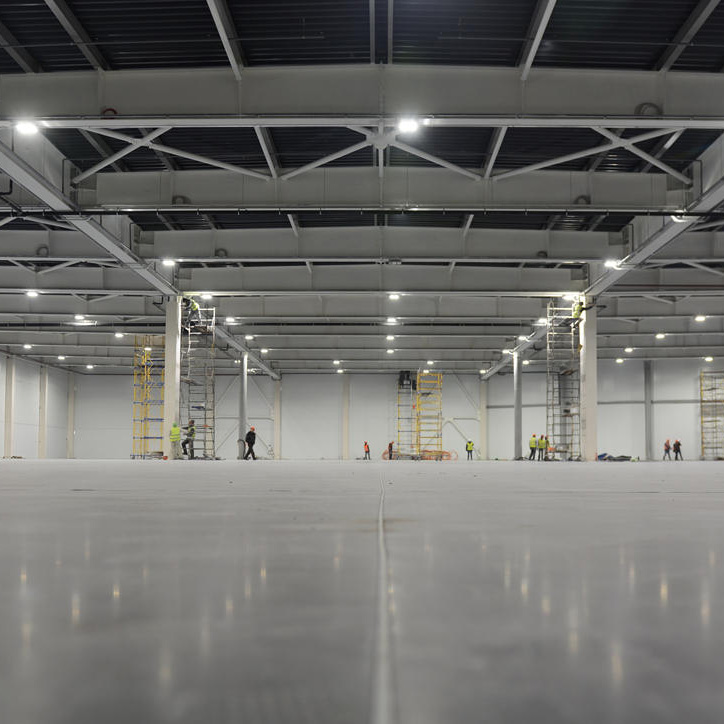

Dimlux3-200W High Bay application — Dimlux3-200W / Project context

Project support

Confirm mounting height, output and controls.

Share the project location, drawings, quantities and performance requirements. Our team can confirm the available configuration for this range.
