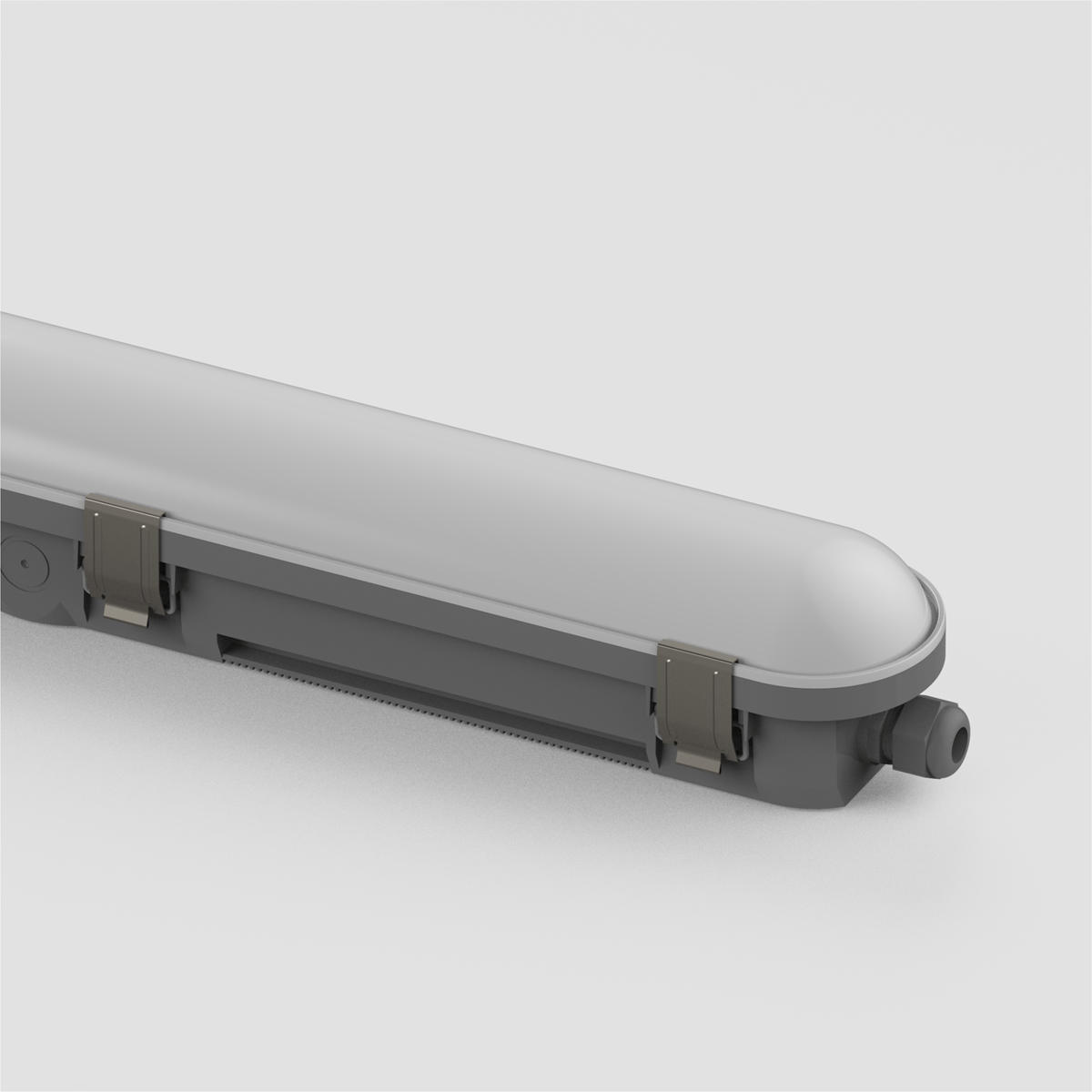

Current model
WP01-20W
Select the length and output for the mounting layout, illuminance target and project control requirements.
- Model
- WP01-20W
- Power / output
- 20W / 2800 lm

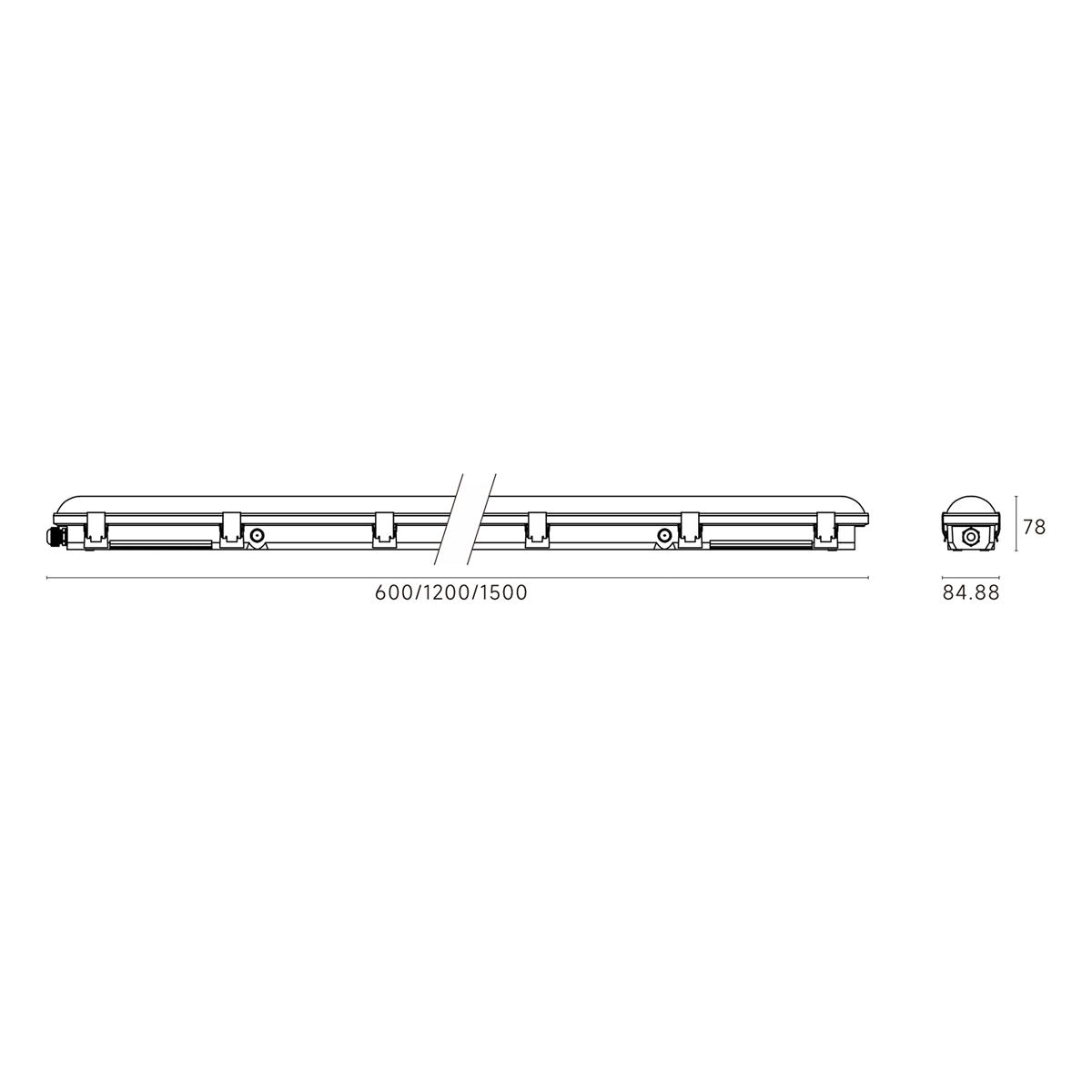

- Overall size
- L600 x W85 x H78 mm
- Beam angle
- 120°
- Protection
- IP66 / IK08
- Finish
- Grey
Published technical data
One sealed platform, three practical lengths.
The WP01 range shares the same electrical, optical and protection platform. Length, power and output change with the selected model.
- Mounting
- Surface / suspension kit
- Input voltage
- AC 220-240V
- Light source
- SMD LED
- Colour temperature
- 3000K / 4000K / 6000K
- Colour rendering
- CRI 80
- Material
- Polycarbonate
- Control options
- DALI / Microwave / PIR / Motion
- Lifetime / warranty
- 50,000 hours / 5 years
Application
Built for clear, continuous working light.

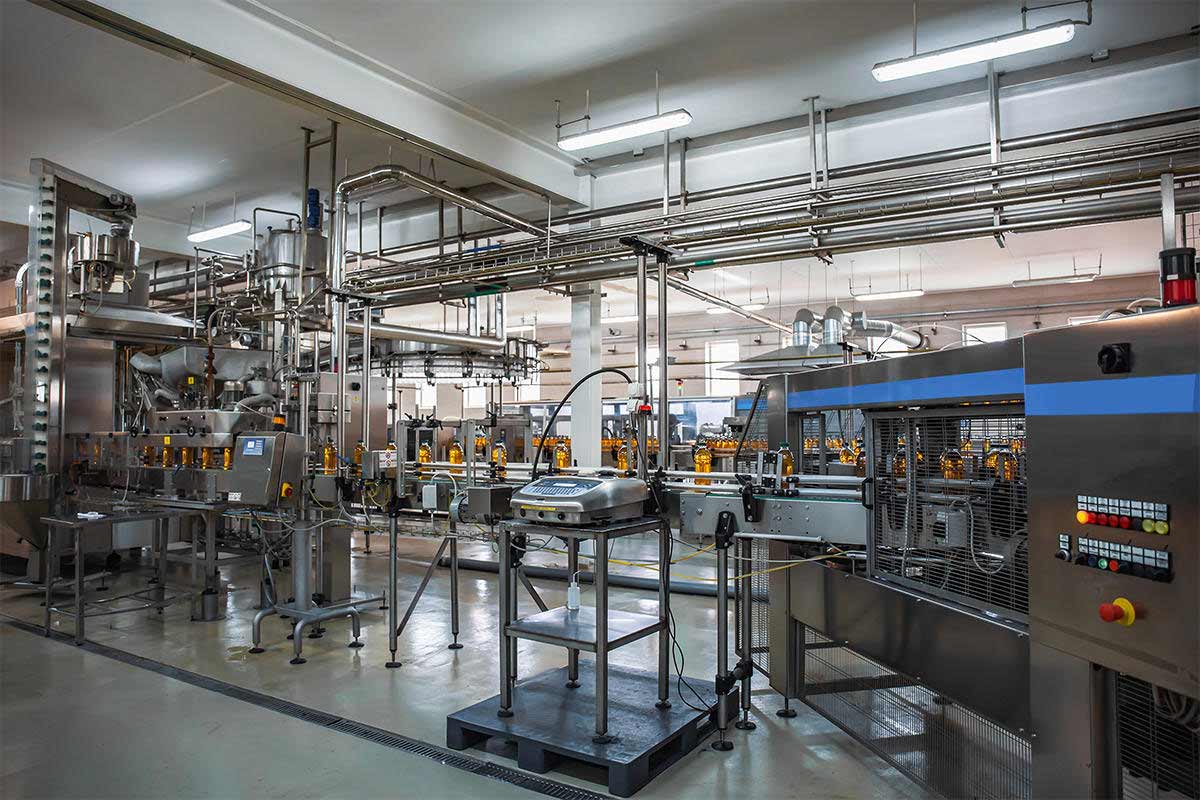

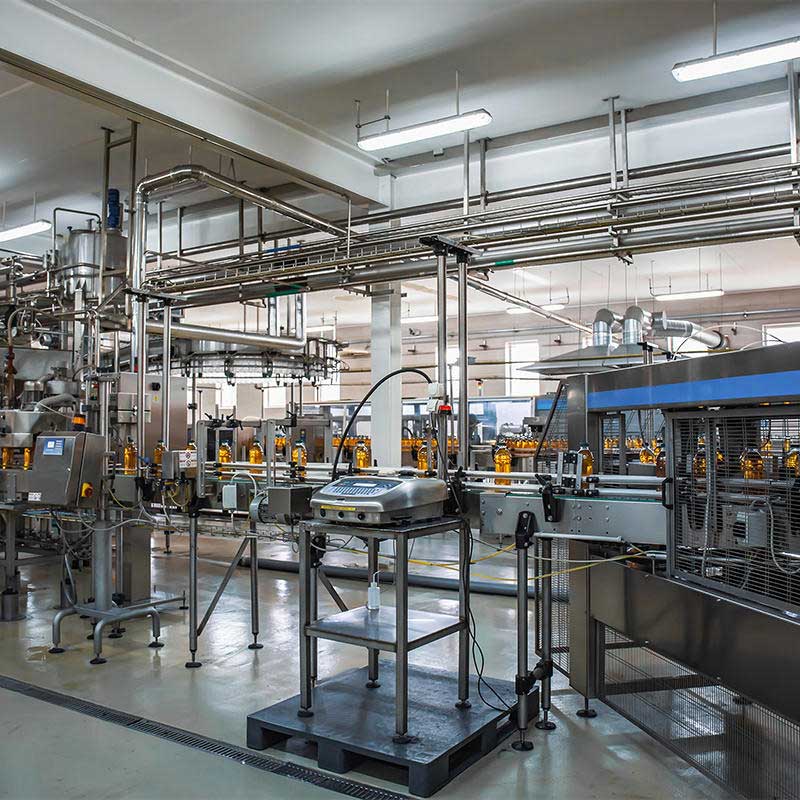

Parking, production and service environments show how the sealed linear form supports regular layouts and broad general illumination.
Project support
Confirm the length, spacing and control scene.
Share the layout, mounting condition, quantities and control requirements. Our project team can check the selected WP01 model against the installation.
